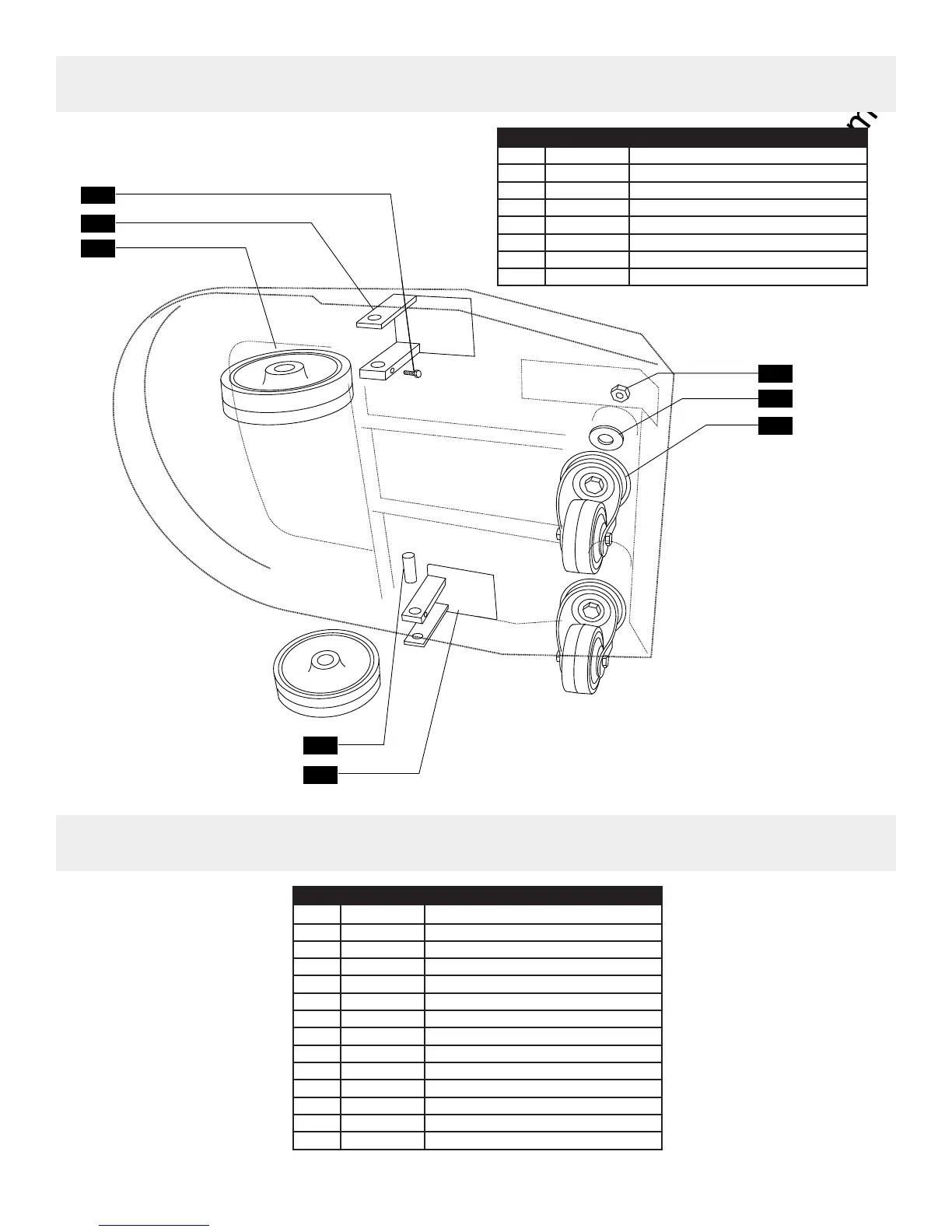

PARTS LIST
ELECTRICAL DIAGRAM
234
235
236
237
230
231
232
233
REF# PART# DESCRIPTION
230 PAS243 SCREW STAINLESS
231 503.231 SUPPORT
232 350.168 WHEEL
233 503.233 PIN
234 PAS321 RIGHT SUPPORT
235 PAS207 NUT FOR CASTER - SET, 1-LARGE + 1-SMALL
236 431.249 WASHER
237 PAS51A CASTOR, SWIVEL
REF# PART# DESCRIPTION
300 PAS56 MICRO SWITCH
301 430.318.2 MICRO SWITCH COVER
302 PAS125 SWITCH
303 410.188 THERMAL
304 410.186 ANTIDISTURBANCE FILTER
305 PAS309 CONNECTING BOARD
306 503.306 SOLENOID SWITCH CONTROL
307 PAS954 FUSE HOLDER
308 PAS2082 FUSE 6A
309 430.066.E BRUSH MOTOR
310 500.301 CABLE
311 PAS808 SUCTION MOTOR
312 PAS245 STRAIN RELIEF
313 503.313 IP55 BOX
To Next Page
