Chapter 5 Control panel and operation
15
5-1-1.Startup state: When the indication ready light display 5200 or ,then
softstater can start. The displaying 5200 means POWTRAN 5200 series softstarter. And
means ready to start.
5-1-2.Delay state: Ready or error state indication light flash means interval, display dexxx and
count down means startup delay.
5-1-3.Start and stop key:In the process of soft startup,the screen display XXXX to indicates
motor current, and only Stop key is valid, and can not enter menu to set parameter, and
ready,running,error lights black out.In the process of soft stop, the screen displayxxxx to indicates
motor current,and only RUN key is valid, and can not enter menu to set parameter, and ready,
running, error lights black out, meanwhile the stop key has reset function.
5-1-4.PRG key , in the non-help mode, press the PRG key to enter the setup menu,display PX:
XXX,then press PRG key again, colon flashes, that means can modify the parameters after
colon.Press the Set key when the colon flashes, if the data has been modified, it will display good
and twice ring, indicating that new data has been saved, and then exit. If you do not want to save
the new data, press the PRG key, colon will stop flashing and restoring the original data, then press
Set key or Stop key to exit.
5-1-5.Set key, in the non-setting state, press the set key to enter the help menu, display HX:
XXX, press the Set key or stop key to exit. In setting state, press the set key to save the new setting
of data and to exit the setting state.
5-1-6.Acceleration,deceleration key, in the setting menu, when the colon does not flash ,press
the acceleration or deceleration key to change the function number; when colon flashes, press the
acceleration or deceleration key to change the data, press on the acceleration or deceleration key
for more than 1 second, the data will be increased or decreased continuously and quickly .In the
help menu, press the acceleration or deceleration key to change the function number and the
corresponding message.When the indicator light of bypass operation is on, and did not enter the
setting and help menu, display AXXXX, that means the motor running current, then press the
acceleration or deceleration key to select display PXXXX or HXXXX. PXXXX indicates motor
apparent power;HXXXX indicates motor overloaded heat balance coefficient. When indication
value of HXXXX is more than 100%,soft starter will be overload protection and display Err08.
5-1-7.When the data is more than 999, the last decimal point is bright, indicates the mantissa +
0.
5-1-8.If the key operating is effective,there will be a voice tip, or this key does not work in
this state.
5-1-9.When the external control terminal connected to a 3-wire mode, the external control
start button and stop button have the equivalent function with start and stop keys on the control
panel.
5-1-10.The control panel with super anti-jamming design,and the outside connection distance
is allow to be more than 3 m.

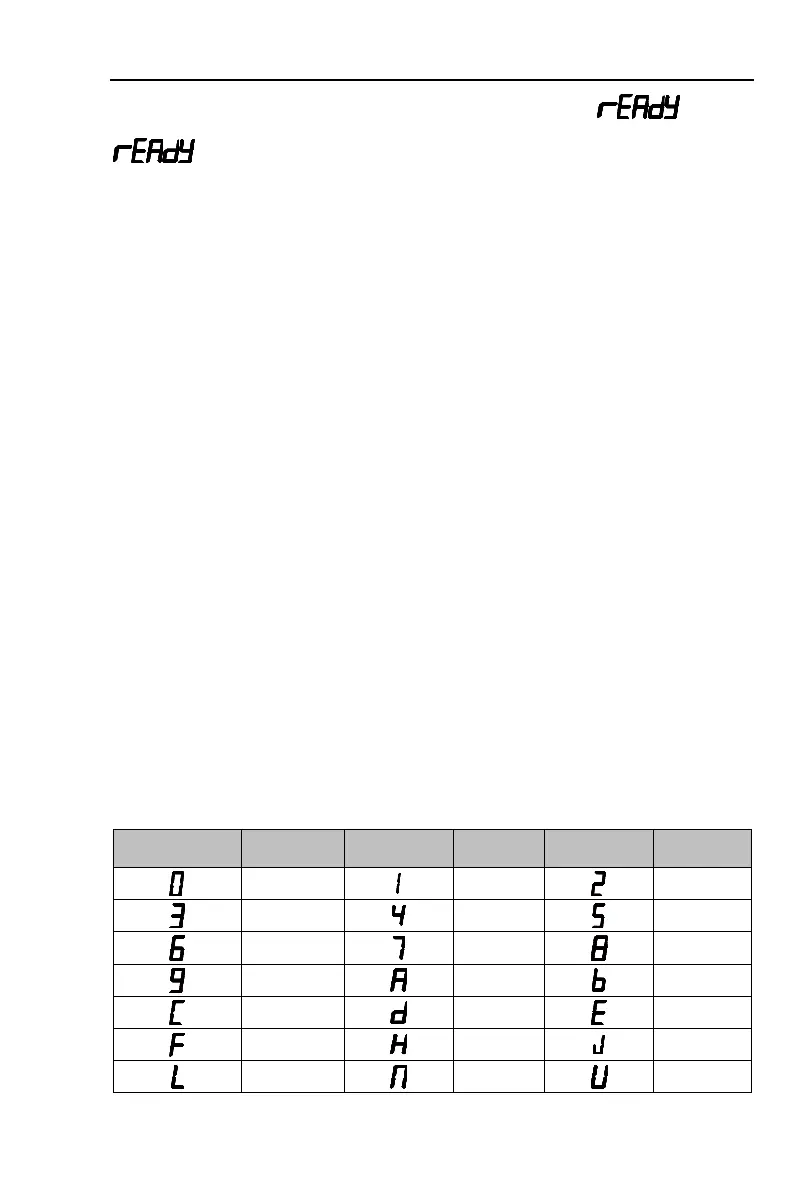

5-1-11.Keyboard digital display illustration
