PPI Zenex - Panel Mounting Procedure

29

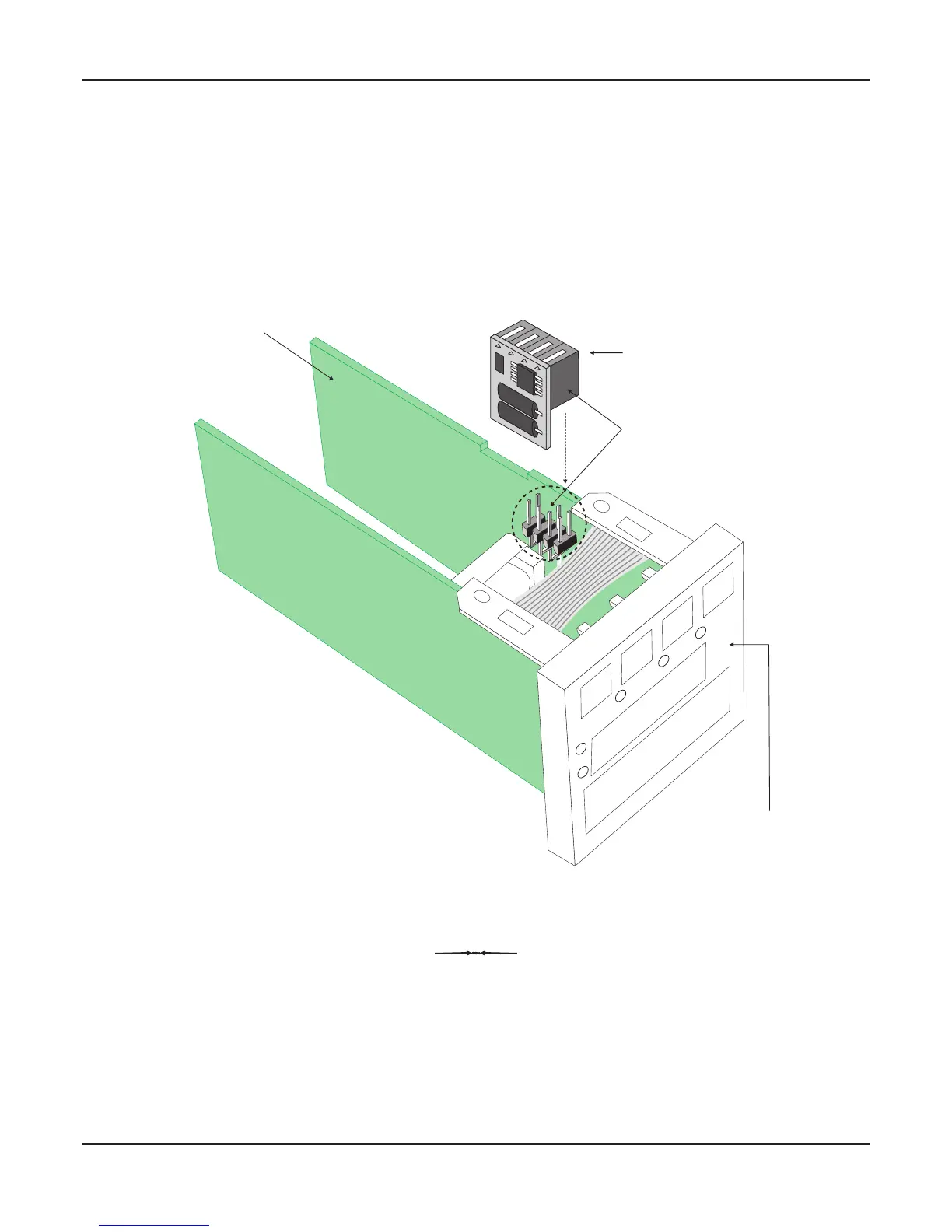

The plug for the Serial Communication or Auxiliary SP Selection module is located on the Power-supply PCB. The Figure 10.7
below illustrates how to plug-in the Serial Communication/Auxiliary SP module. To plug (or unplug) the module simply insert
(or remove) the socket into (or from) the plug.
Mounting Serial Communication/Auxiliary SP Selection Module
Figure 10.7
P
P
I
Plug & Socket
Connectors
Serial Communication/
Auxiliary SP Selection
Module
Power Supply Board
Front Label
Upside-down
zenex
