40

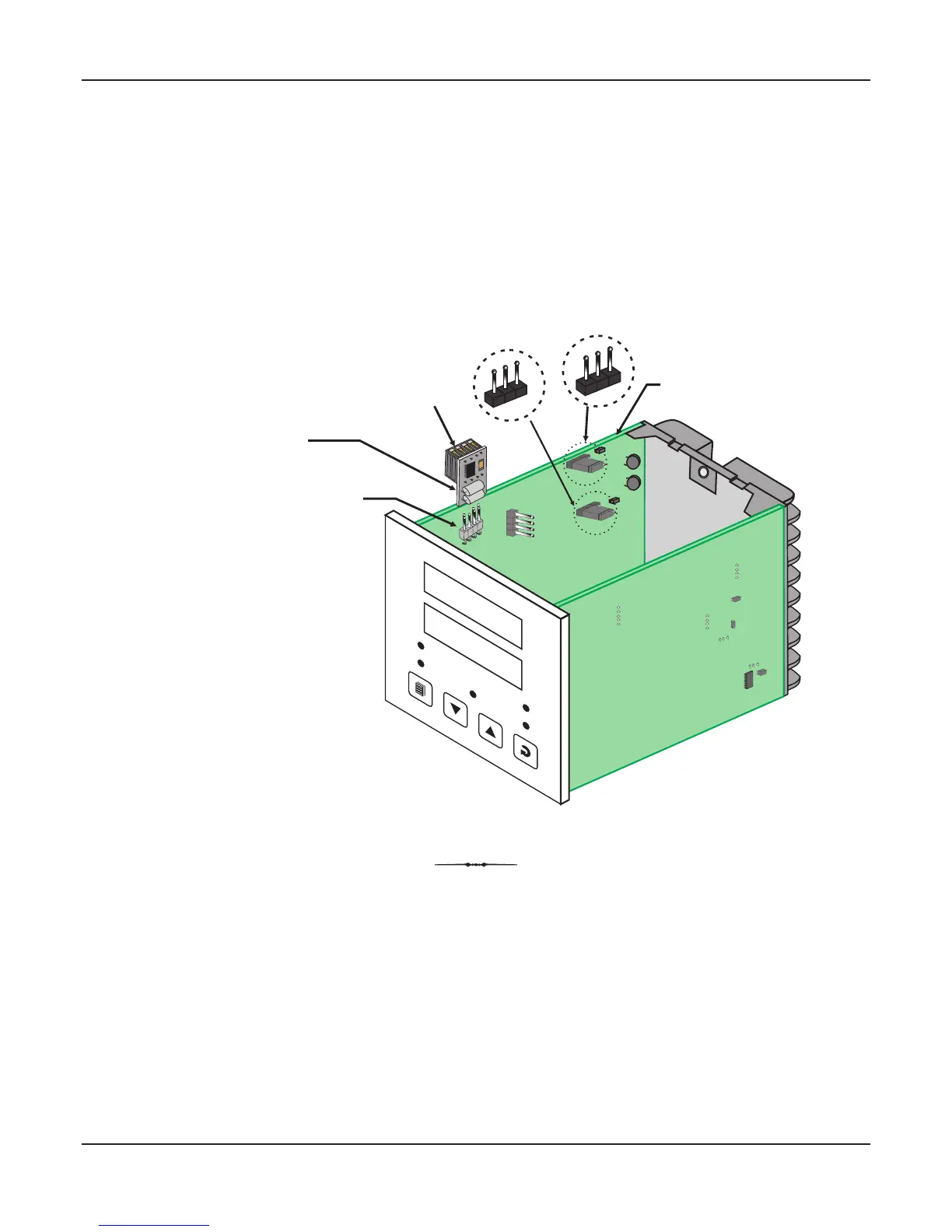

The plug for the Serial Communication or Auxiliary SP Selection module is located on the Power-supply PCB. The Figure 2.3
below illustrates how to plug-in the Serial Communication/Auxiliary SP module. To plug (or unplug) the module simply insert
(or remove) the socket into (or from) the plug.
Mounting Serial Communication/Auxiliary SP Selection Module
Figure 2.3
CN3
CN4
Output 3
Jumper Setting
Serial Communication
Module
Power-Supply
PCB
8 Pin Male Plug
8 Pin Female
Socket
1
2
3
A
1
2
3
B
