2284V104-UK 5
HOW TO DISMANTLE SYSTEM 2200

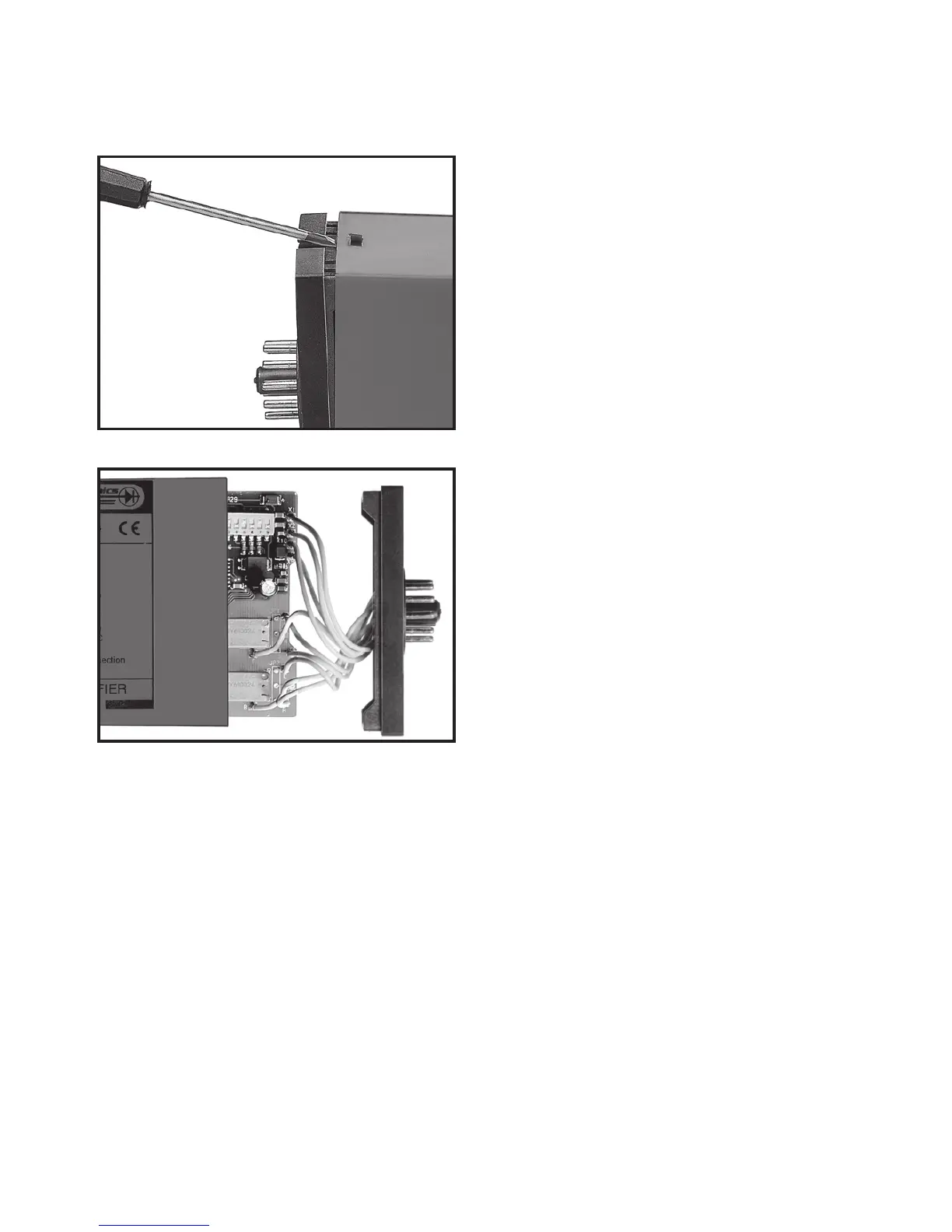

Picture 1:
The back panel of the device is
detached from the housing by
way of a screwdriver.
Picture 2:
After this, the back panel can be pulled
out together with the PCB, but
please notice the position of the
PCB as there is a number of different
positions in the house. Do not pull
the wires unnecessarily, instead pull
the PCB.
Switches and jumpers can now be
moved.
When assembling the back plate and
housing, please make sure no wires
are stuck.
