6 3100V106-UK
Mounting / demounting of system 3000

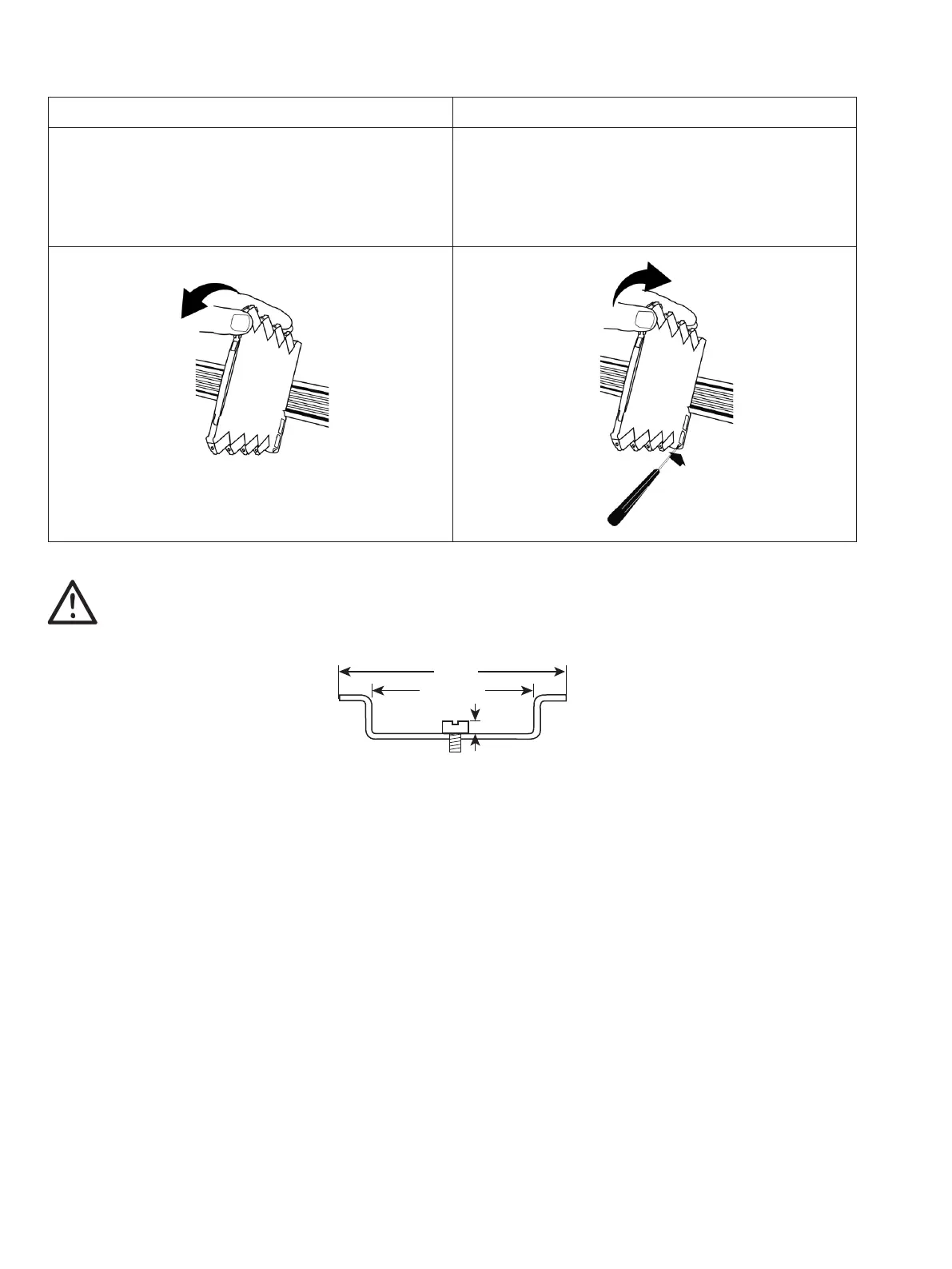

Mounting on DIN rail / power rail (Fig.1) Demounting from DIN rail / power rail (Fig.2)
Click the device onto the rail First, remember to demount the connectors with
hazardous voltages.
Detach the device from the rail by moving the bottom
lock down.
System 3000 devices can be mounted on DIN rail or power rail (where applicable).
When installing system 3000 devices with power rail connectors on a standard 7.5 mm DIN rail the head of the
screws holding the rail shall be no more than 3.5 mm high to prevent potential short circuit of the power rail
connectors.
< 3.5 mm
> 24 mm
35 mm
