8 3000V101-UK
(*) External fuse characteristics:
The 2.5 A fuse must break after not more than 120 seconds at 6.4 A.
Device daisy chain:
The 3101, 3102, 3111, 3112 and
3113 devices are powered by 24
VDC +/- 30%. External protective
fuse requirement: 2.5 A (*).
2.5 A equals 60 W - this means that
up to 85 units can be energized
by connecting the source in parallel
with the power terminals of each unit.
Power rail solution #3:
Alternately, you can connect 24 VDC
to one 3111, 3112, 3113 device
which will energize units on the rail.
External protective fuse requirement
for powering this way: 0.4 A,
meaning that up to 10 pcs of 3111,
3112, 3113 units can be energized
and powered this way.

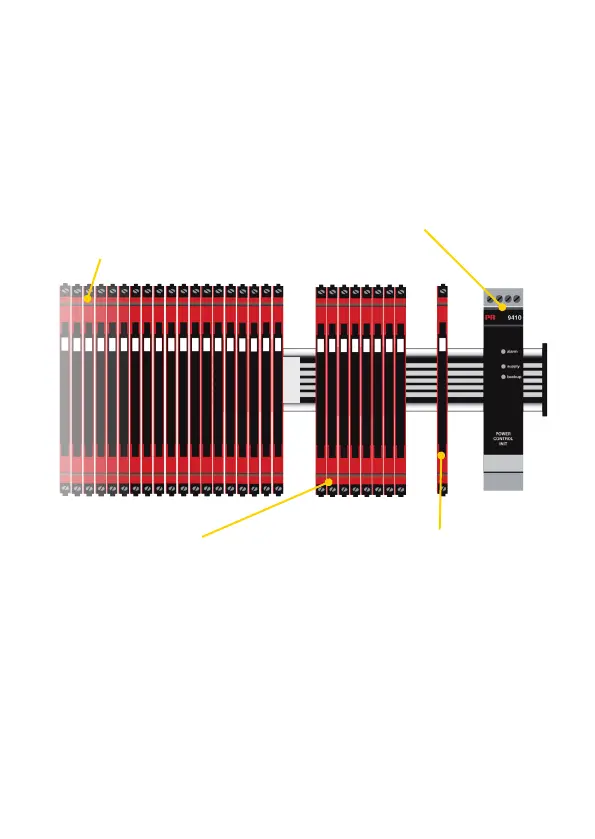

Power rail solution #1:
The 9410 power control unit can
energize and power 96 W to the rail
meaning that up to 137 pcs of 3111,
3112, 3113 units can be powered
this way. Redundant power supplies
are possible. Protective fuse: Located
inside the 9410.
Power rail solution #2:
The 3405 power connector unit
allows easy connection of a 24 VDC /
2.5 A source to the power rail.
Up to 85 of the 3111, 3112, 3113
units can be powered this way.
External protective fuse: 2.5 A(*).
FLEXIBLE SUPPLY
3405
