Pragati BTP-50 - 1 Turret Identification

5
BI-DIRECTIONAL TOOL TURRET - March - 2011
AUTOMATIC TOOL CHANGER

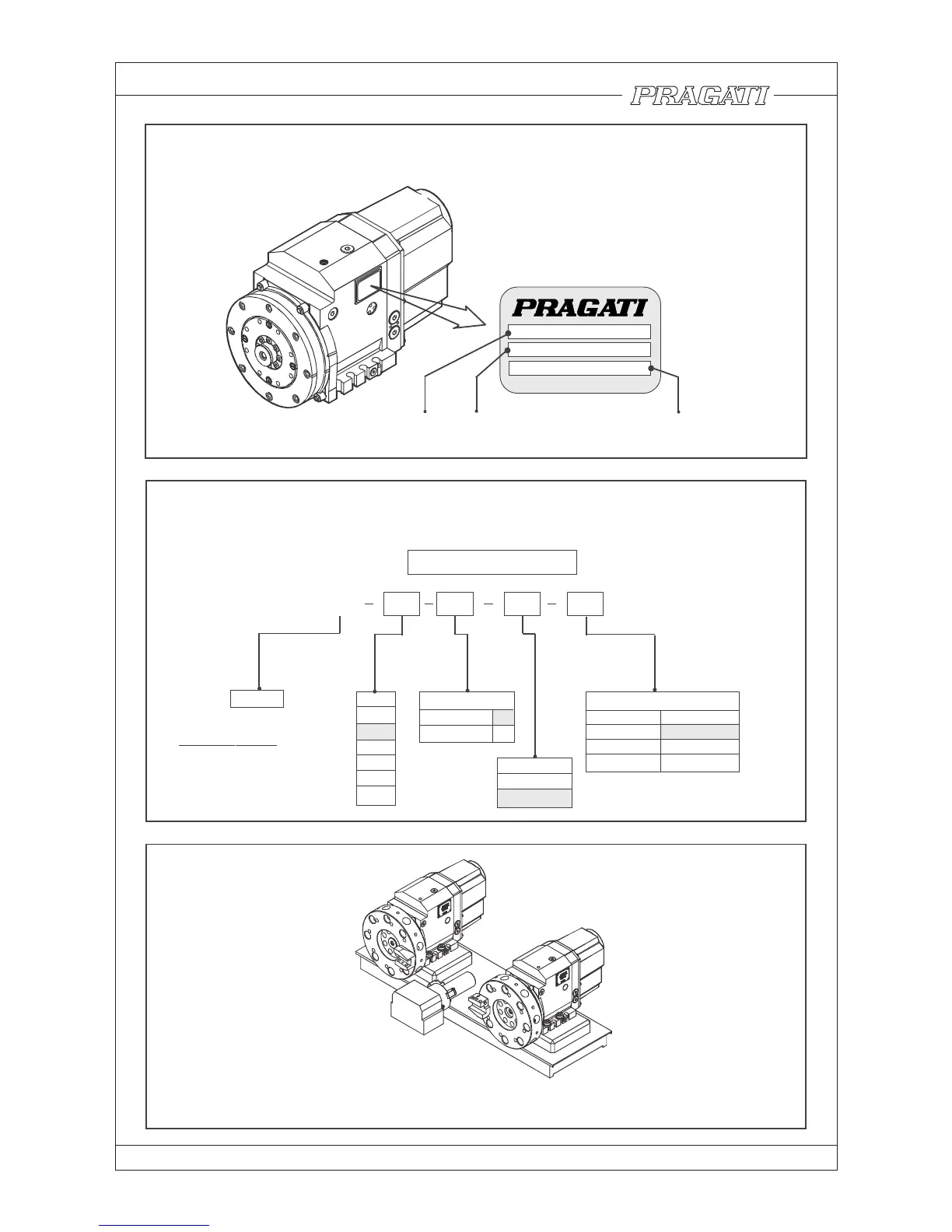

1. Turret Identification
1.1 Turret Name Plate Details
Fig 1.0
Model
Identification
Turret serial number
Electric
supply
MADE IN INDIA
Rear mounting
Position
Front mounting
Position
(operator side)
FIG 1.2
1.3 Mounting position:
Coolant valve position of turret depends on the mounting position; Front or Rear. If not specified Rear
mounting is standard.
1.2 Model Identification
Model
Fig 1.1
Ordering sample : BTP - 50 Turret , 8 Station, Rear mounting, 415V , 3 Ph motor
BTP - 50 - 8 - R - 415
63
80
100
125
160
No. Of stations
8 stations 8
12 stations 12
Mounting
F - Front
R - Rear
Default Values :
No. Of stations - 8
Mounting position - R
Motor Voltage - 415
Frequency - 50/60 Hz
BTP
Size
50
Motor voltage, 3 Phase
Range VAC Specification
380 - 440 415
210 - 230 220
100 - 120 110
