5. Details of Electrical Connections

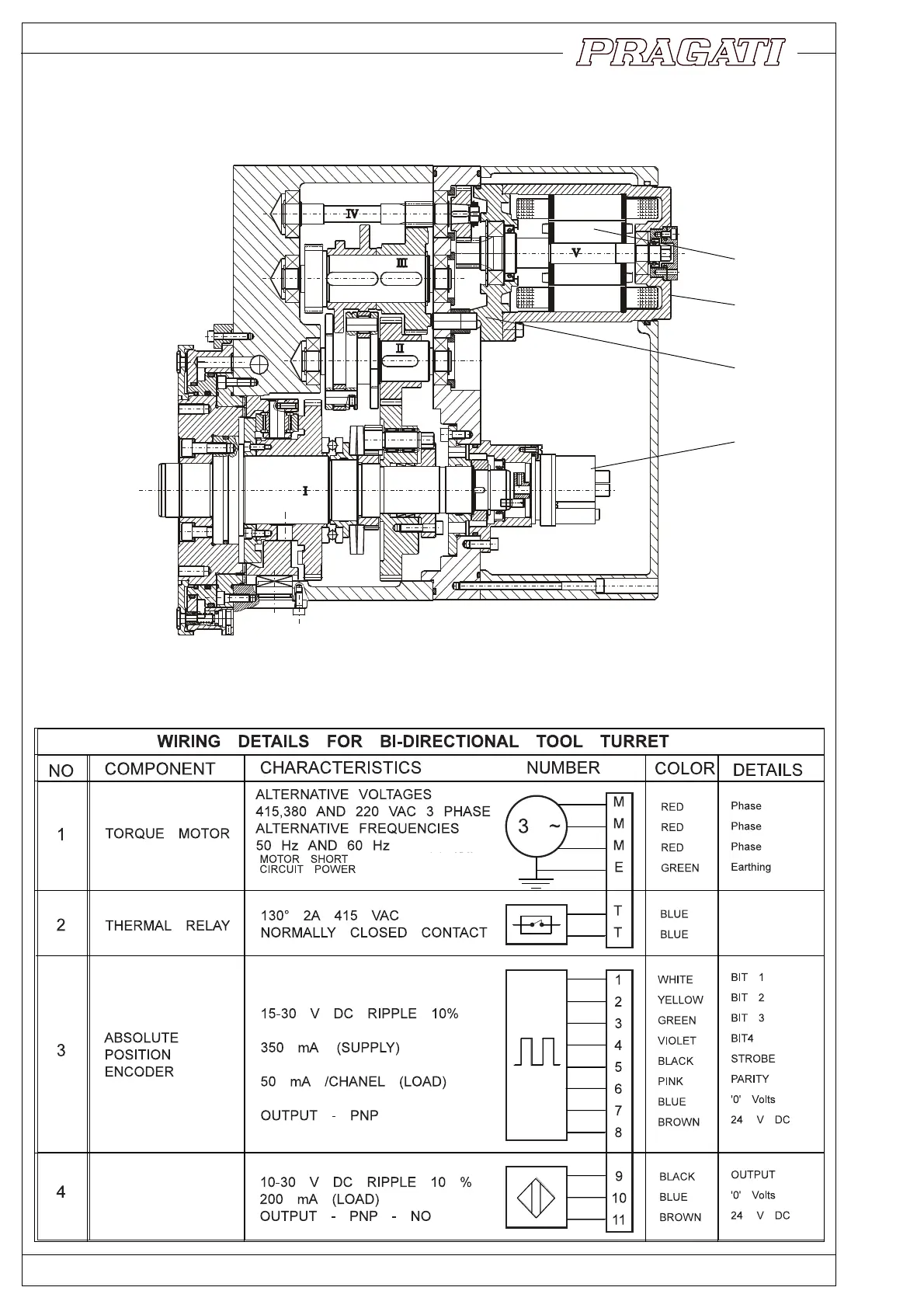

8 BI-DIRECTIONAL TOOL TURRET
1
4
2
3
1. Torque Motor 2. Proximity Switch 3. Absolute Encoder 4.Thermal Relay
BTP-100 : 1.9 KVA
BTP-80 : 1.6 KVA
BTP-63 : 1.2 KVA
BTP-125 : 2.3 KVA
PROXIMITY SWITCH
(TURRET CLAMP SIGNAL)
