Pragati BTP-80 - 6. Electrical Motor Wiring Details

BI-DIRECTIONAL TOOL TURRETS 9
415/ 380 220 110
BTP-125 3.2 6.3 8.0
BTP-100 2.6 4.5 7.4
BTP-80 2.3 3.9 6.3
BTP-63 1.6 3.0 5.0
BTP-50 1.3 2.6 3.3
VOLTAGE AC
MODEL
1. Unused electrical entry points to be properly plugged.
2. Electrical wiring should be brought in through water proof conduit connection. Wire braided hydraulic
hoses can serve as conduits. They also give excellent protection against damage by hot chips.
FIG 6.2 DETAILS OF ELECTRICAL TERMINALS
MOTOR CURRENT (Amps)
USE FUSE RATING ABOUT
THREE TIMES MOTOR
CURRENT. MINIMUM 6A FUSE
TO BE USED.
6. Electrical motor wiring details
MF
TC
MR
SSR1 SSR2
MF
MR
0V
0V
24 VDC
E
T
T
MMM
MR
TC
TC
MF
TC
Q4.0 Q4.1I3.1
OUTPUT
INPUT
PROGRAMABLE CONTROLLER (PLC)
MOTOR
3~
FUSES
R
Y
B
N
E
TORQUE MOTOR
FORWARD REVERSE
SOLID STATE
RELAYS
THERMAL RELAY
130˚ C
NORMALLY CLOSED
415 VAC 2 A
SSR
415 VAC 25 A

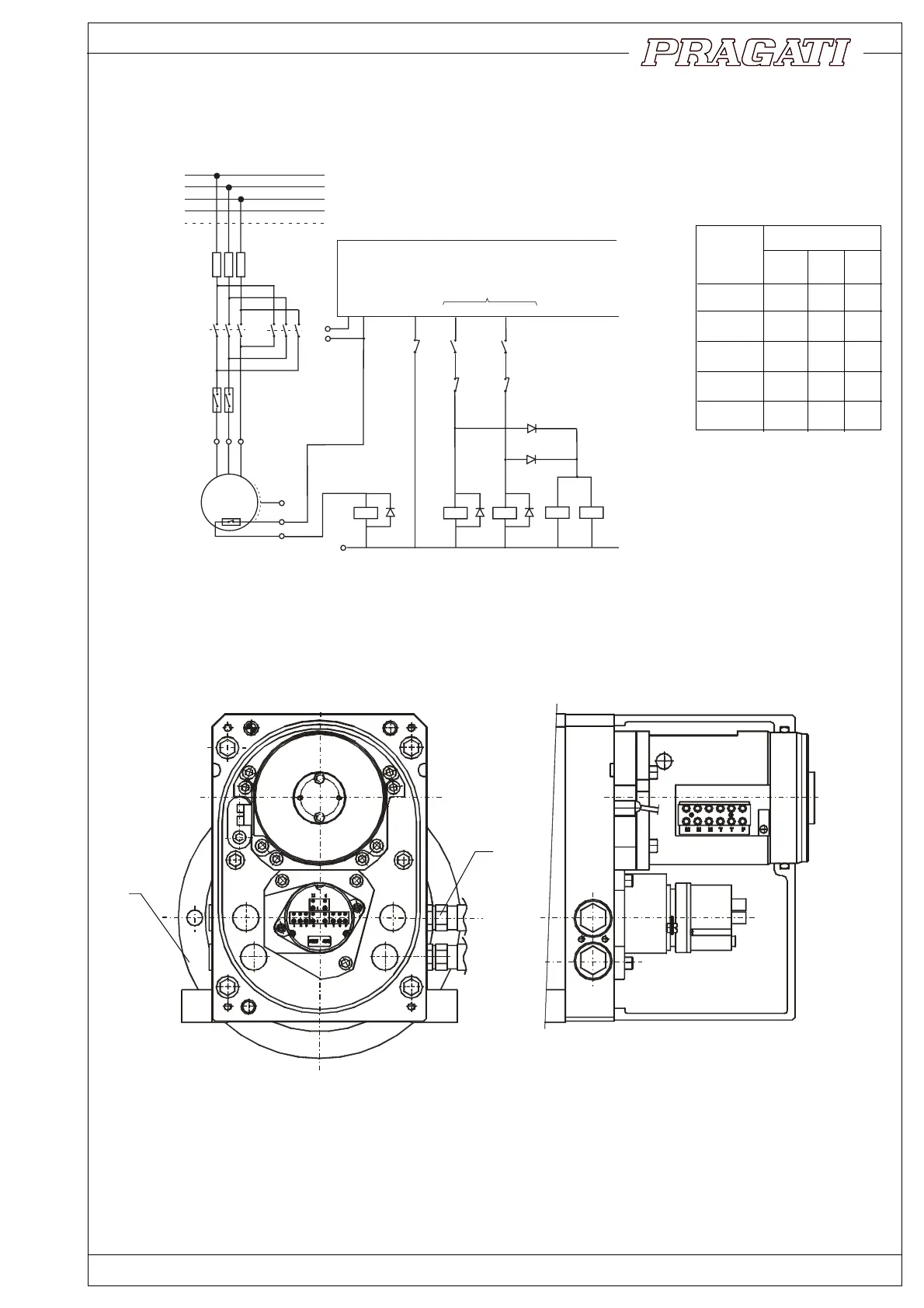

FIG 6.1 WIRING DIAGRAM FOR MOTOR
