Connections to panel type (E):
In some generator models the electric control part
could be installed separately from the power part. In
this case, there will be 2 different electric panels: the
“control board” and the “power board”, which will
normally be positioned on the two opposite sides of
the base near the power alternator.

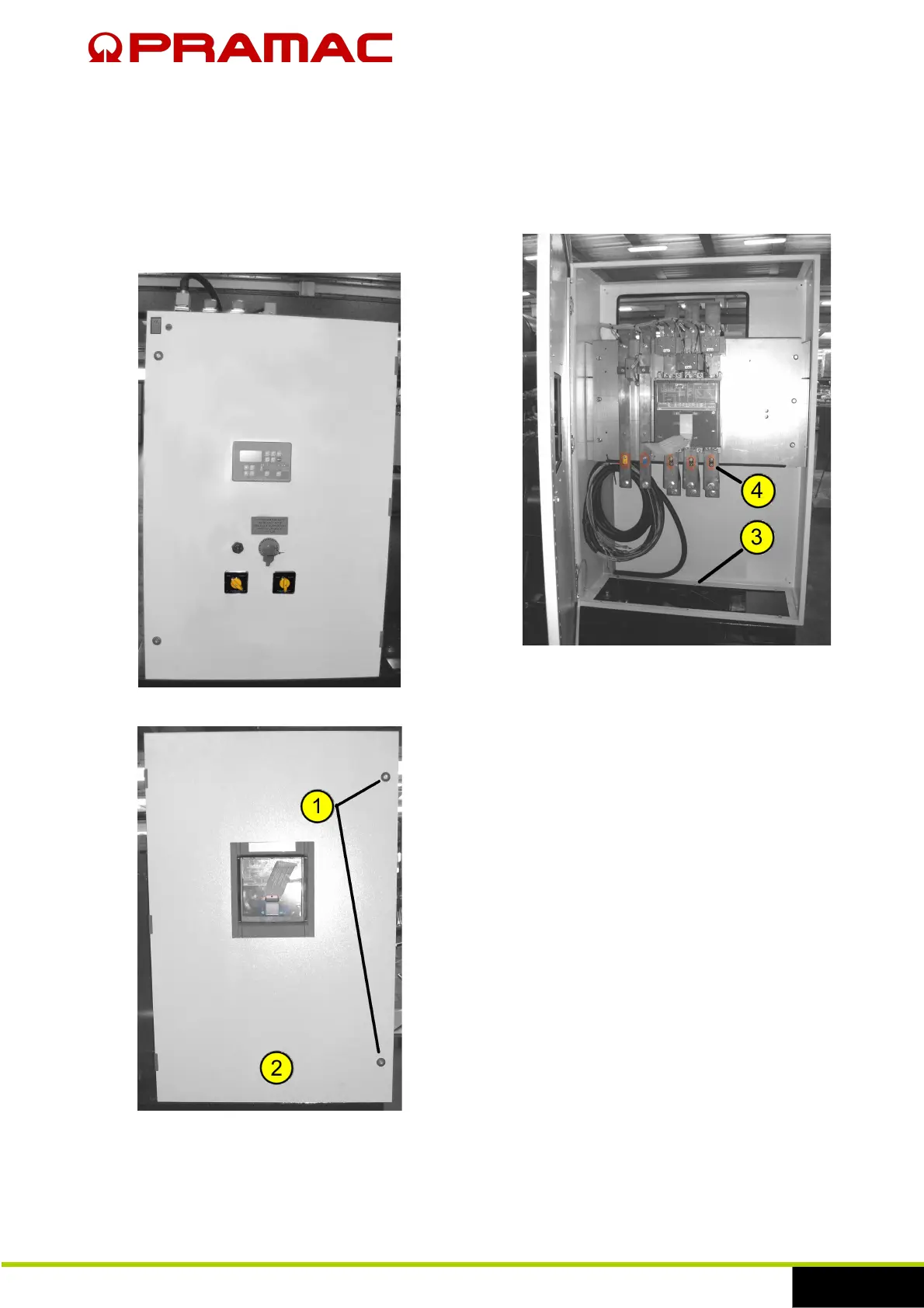

Control board:
Closed power board:
• Remove the two fixing screws (1) using the
appropriate spanner and open the protection panel
(2).
• Pass the cables through the bottom side of the
panel through the specific opening positioned
underneath the electric panel (3).
• Connect the cables to the specific terminals (4)
following the indications on the wiring diagrams
supplied with the generator.
• Close the protection panel (2) and tighten the two
fixing screws (1) with the specific spanner.
Open power board:
