SECTION 3

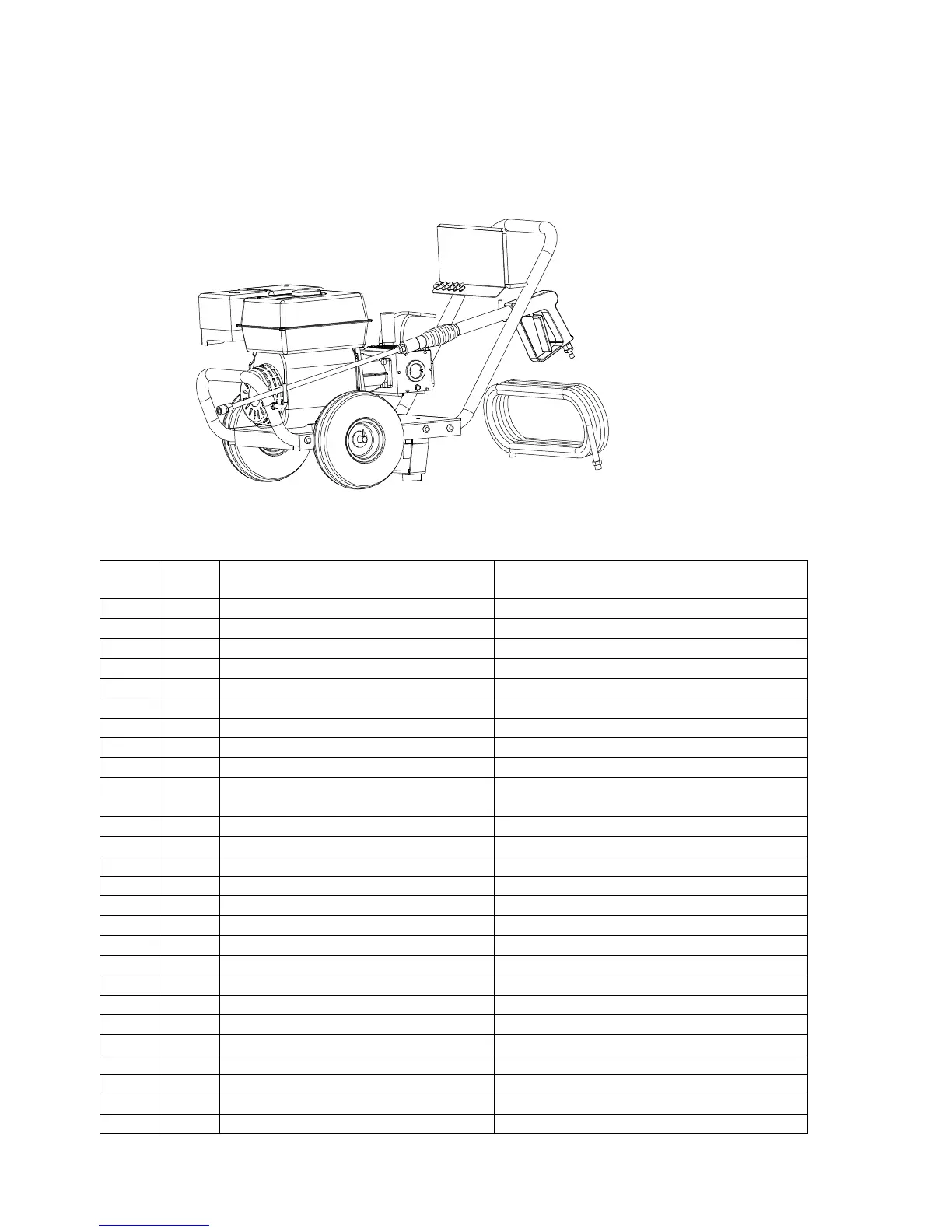

PW200 PARTS AND PART LISTS
ITEM
NO. QTY. PART NO. DESCRIPTION
1 2 WHE0001 Wheel, 10" Pneumatic
2 1 FRA0064_Bumper Frame, Bumper
3 1 BRA0061_FrameSupport Frame Support
4 2 VIB0015_50X16 Isolator, 50 X 16 X 10mm
5 6 M10 lockwasher Lockwasher, M10
6 6 m10 nut Nut, M10
11 10 M8-1.25 x 30
16 1 XMV4G30D 3gpm, 3000psi, 3400rpm Pump
17 1 GUN0003 High Pressure Spray Gun
18 1
GUN0002
(Connected to Gun0003)
Lance, Gun Extension
19 8 SCRM080005_CarriageBolt Carriage Bolt, M8 X 60
20 8 M8 NUT Nut, M8 - Nylon Insert
21 7 M8 flatwasher Flatwasher, M8
22 1 VAL0004_ThermalValve Thermal Relief Valve
23 4 M10 x 40 Bolt Bolt, M10 x 40 Z
24 2 1-8 cotter pin 1/8" Cotter Pin
25 2 WASHER- FLAT- 5-8 Washer, 5/8" Flat
26 1 HOS0009_ChemHose 3' Chemical Injection Hose
27 1 CPL0001 Quick Couple (Fem x Fem)
28 1 CPL0002 Quick Couple (Male x Male)
29 1 CPL0003 Quick Couple (Garden x Male)
30 1 TIP0006_0Deg_3000psi 0 Degree Nozzle, #3.5
31 1 TIP0007_15Deg_3000psi 15 Degree Nozzle, #3.5
32 1 TIP0008_25Deg_3000psi 25 Degree Nozzle, #3.5
33 1 TIP0009_40Deg_3000psi 40 Degree Nozzle, #3.5
34 1 TIP0005_25Deg_Chemical 25 Degree, Chemical Nozzle
To Next Page
