G. NEMA 5-20R 125V - 20A GFCI Receptacle
H. NEMA L5-30R 125V - 30A Receptacle
I. NEMA L14-30R 125/250V - 30A Receptacle
J. Circuit Breakers
K. Engine On/Off Switch
L. Idle Control Switch
M. Digital Hour Meter
• Press and release mode button to toggle
between Total Timer and Timer 1 (TMR1).
• Total Timer displays and records the total hours
your generator has run. Total Timer is not
resettable.
• Timer 1 can be used to track operating hours for
service intervals. Timer 1 is resettable by
holding the mode button down for 3 seconds
while TMR1 is displayed.
N. Voltage Selector Switch
2
English

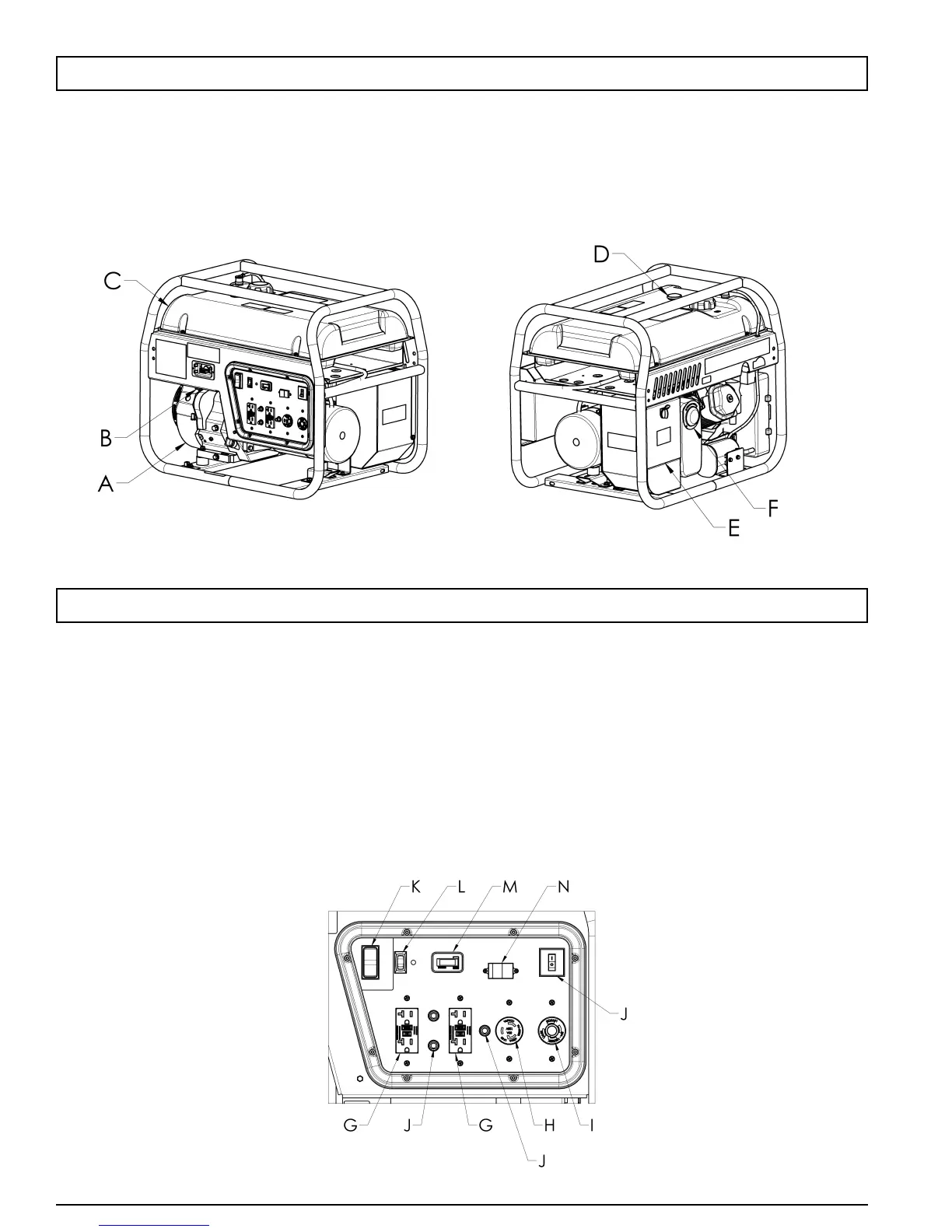

CONTROL PANEL
A. 337 cc Honda OHV engine
B. Low oil sensor
C. 8 gallon plastic fuel tank
D. Fuel gauge
E. Storage box
F. Spark arrester
GENERATOR FEATURES
