26
Manufacturer Lubricant
Wintershall Ersolon 220
Wintershall Wiolan CN 220
RANDO HD 220
TOTAL Cortis 220
Check the oil level and top up if necessary
Using the oil dipstick pos.c, Fig.3.
The correct checking of the oil level is made with the pump
not running, at room temperature. The oil change must be
made with the pump at working temperature, removing: the
oil dipstick, pos.c, and then the plug pos.d, Fig.3.
The oil check and change must be carried out as indicated in
the table in chapter 11.
The quantity required is ~ 3.8 liters.
Set up the plant so that the oil temperature does
not exceed in any case 100°C (212°F) during pump
operation.
Use a temperature probe to be inserted into the oil
drain plug Pos. d Fig. 3.
See “ATEX EXPLOSION PROTECTION” manual.
ATTENTION: Use only oil with a ash point higher
than 200°C.

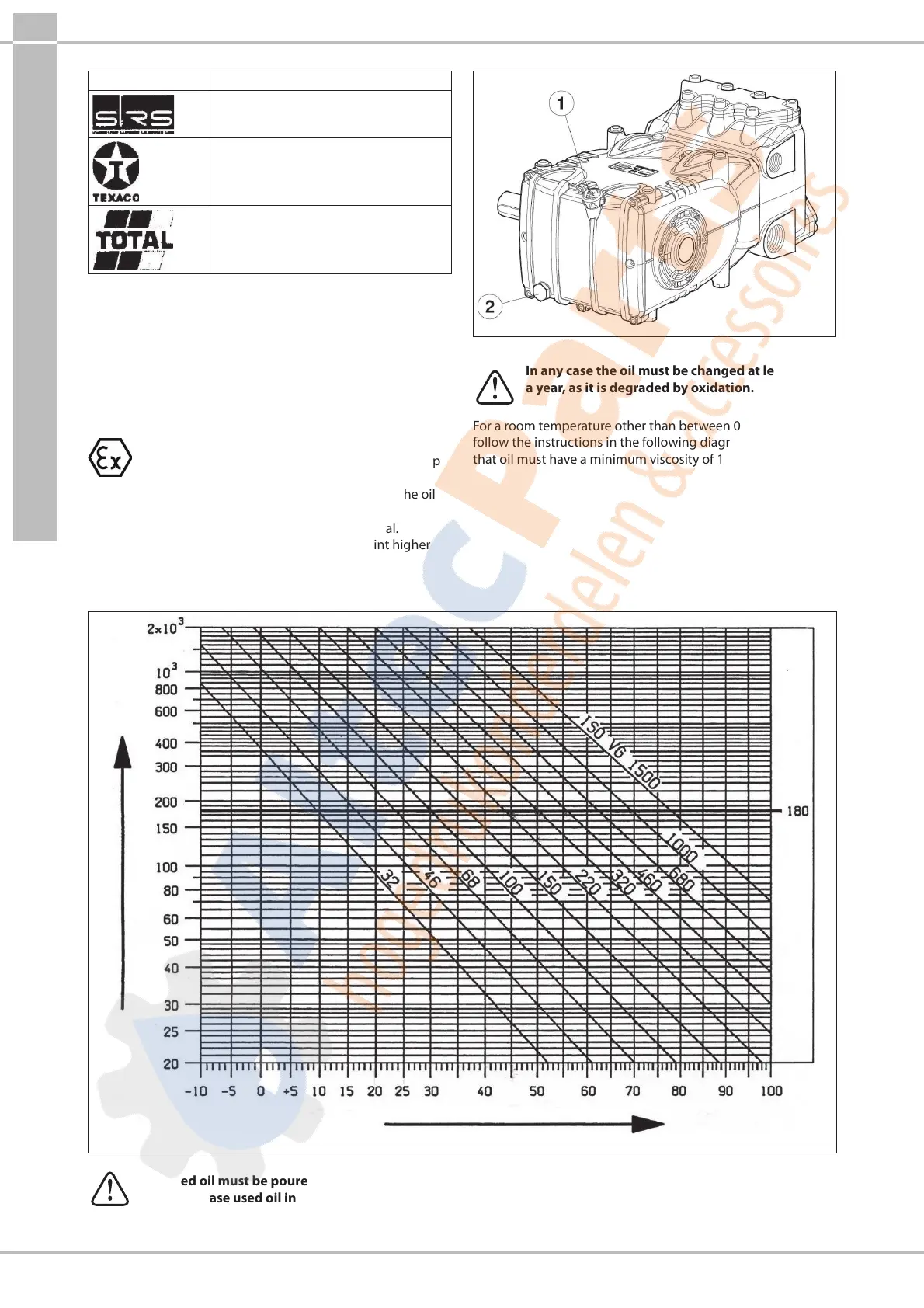

Fig.3
In any case the oil must be changed at least once
a year, as it is degraded by oxidation.
For a room temperature other than between 0°C - 30°C,
follow the instructions in the following diagram, considering
that oil must have a minimum viscosity of 180 cSt.
Viscosity / Room Temperature diagram
mm
2
/s = cSt
Viscosity ν
Ambient temp. (°C)
The used oil must be poured unto a suitable container and consigned to an authorized recycling center.
Do not release used oil into the environment under any circumstances.
