To interface the RS-232 output to an IX-403-H, connect the DB-9 connector on the
display harness to the appropriate connector on the IX-403-H. To interface the RS-232
output to an IX-101-H, a DB-9 pigtail harness will need to be added to the IX-101-H
connector if it does not currently have one. The green wire should be inserted in
position 6 of the IX-101-H connector. The white wire should be inserted in position 7.

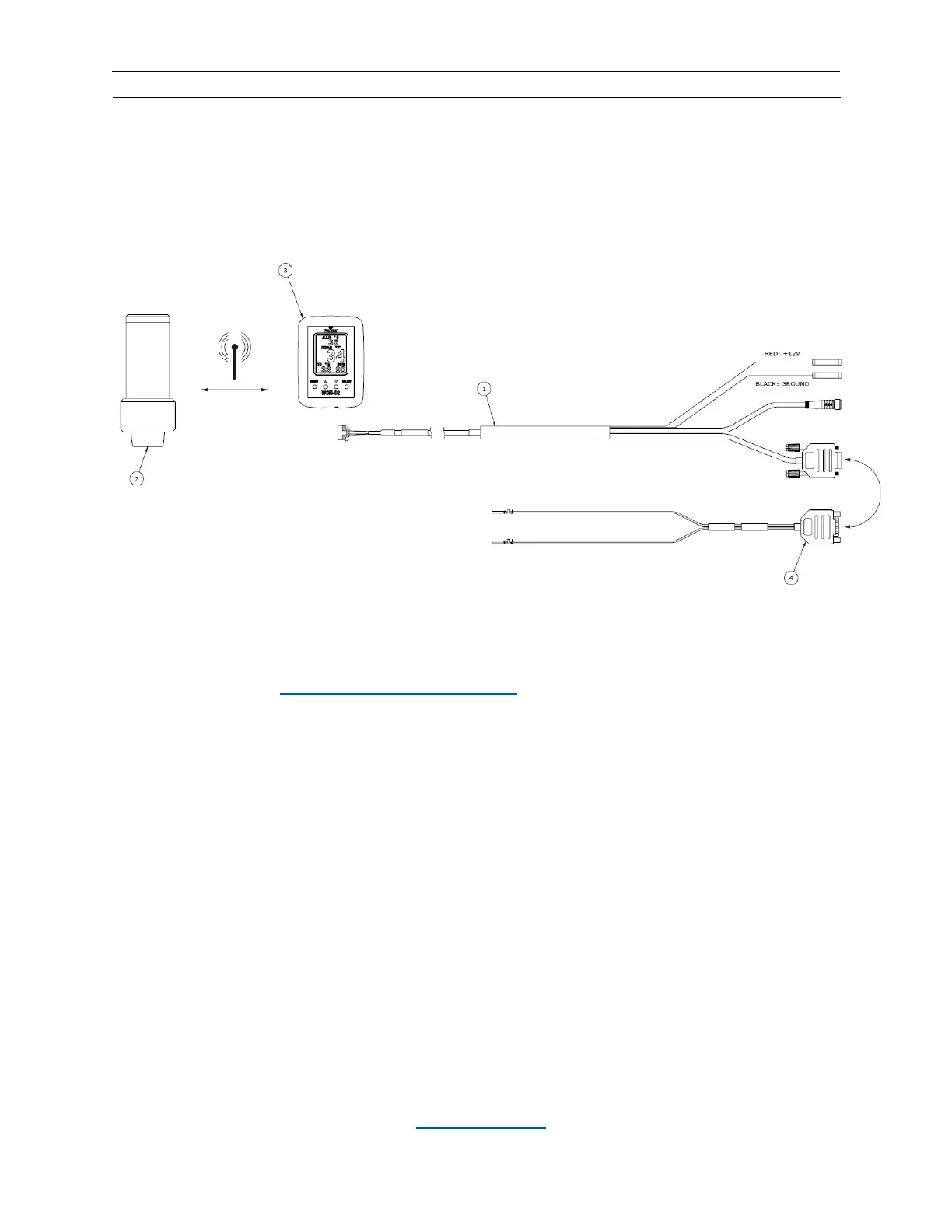

Figure 3: Connections for IX-101
For questions regarding installation or operation, please contact PreCise Support
at 888-254-1634 during normal business hours (7AM-6PM Mountain Time,
Monday-Friday) or support@precisemrm.com.
