PreciseFit DC0001-N - Preparation; Tools Required for Assembly; Assembly Instructions

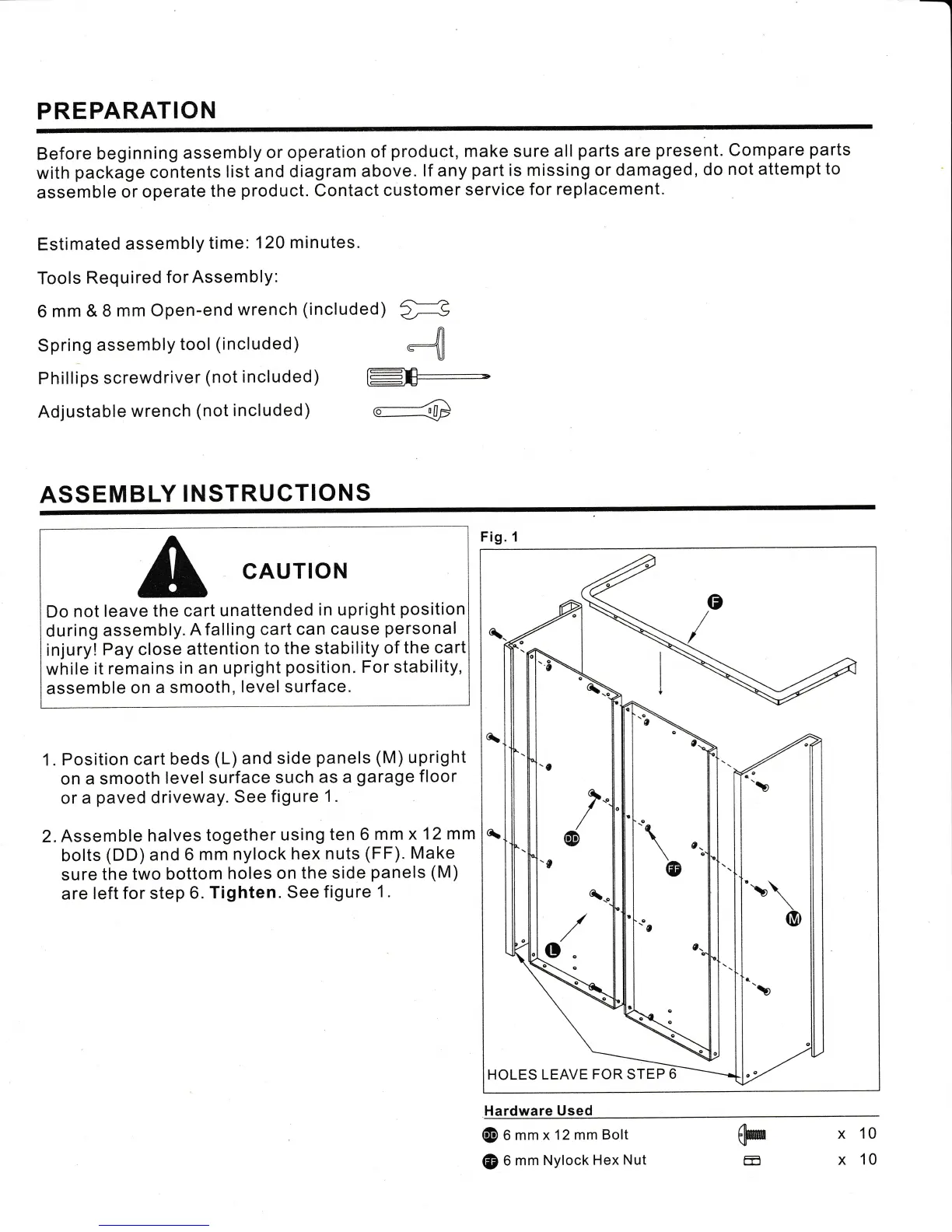

PREPARATION
Before
beginning
assembly
or
operation of
product,
make sure
all
parts
are
present.
Compare
parts
with
package
contents
list and diagram
above.
lf
any
part
is
missing or damaged,
do
not attempt
to
assemble
or operate
the
product.
Contact
customer
service
for replacement.
Estimated
assembly
time:
120 minutes.
Tools
Required
for AssemblY:
6
mm
& 8
mm Open-end
wrench
(included)
O=
Spring
assembly
tool
(included)
Phillips
screwdriver
(not
included)
Adjustable
wrench
(not
included)
ASSEMBLY
INSTRUCTIONS
-{
f-Yl
(c=-AJ
ffi
CAUTION
Do
not
leave
the
cart
unattended
in upright
position
during
assembly.
A falling
cart can
cause
personal
injuryl
Pay close
attention
to the
stability
of
the cart
while
it
remains
in an
upright
position,
For stability,
assemble
on a
smooth,
level surface.
1
, Position
cart
beds
(L)
and
side
panels (M)
upright
on
a
smooth
level
surface
such
as a
garage
floor
or
a
paved
driveway.
See
figure
1.
2.
Assemble
halves
together
using
ten 6
mm
x
12mm
bolts
(DD)
and
6
mm
nylock
hex nuts
(FF).
Make
sure
the two
bottom
holes on
the side
panels
(M)
are
left
for step
6.
Tighten.
See
figure
1
.
Fig.
1
HOLES
LEAVE
FOR STE}}
Hardware
Used
@
0
mm
x12
mm Bolt
e)
6
mm Nylock
Hex
Nut
@
E
x
x
10
10
/
oc
\c
-t\
\o..
\e
(D
o
-o
t\\
@
