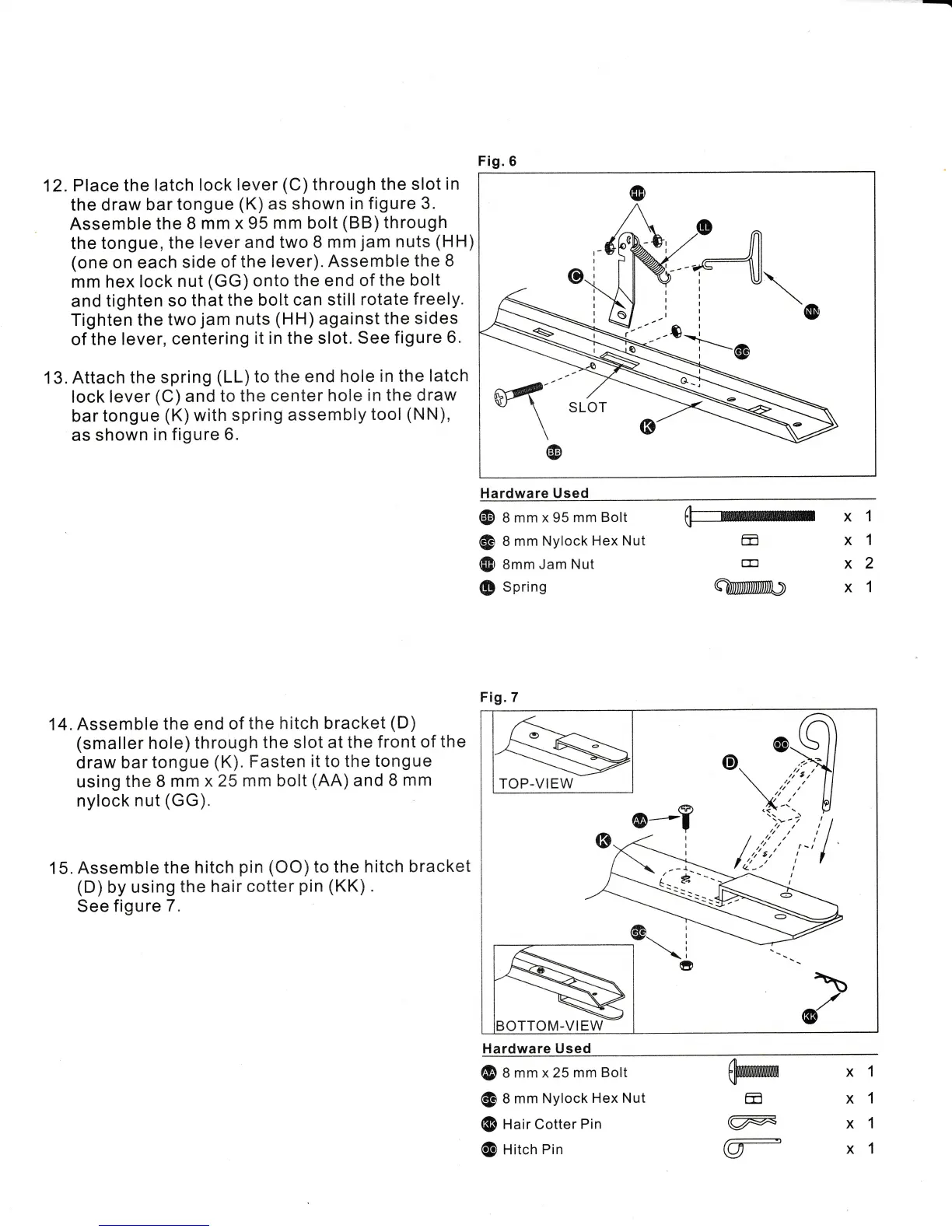

12.
Place
the
latch
lock
lever
(C)
through
the slot
in
the draw
bar
tongue
(K)
as
shown
in
figure
3.
Assemble
the 8
mm
x 95
mm
bolt
(BB)
through
the
tongue,
the
lever
and
two 8
mm
jam
nuts
(HH)
(one
on each
side
of
the
lever).
Assemble
the 8
mm
hex
lock
nut
(GG)
onto
the end
of
the
bolt
and
tighten
so
that
the bott
can still
rotate
freely.
Tighten
the
two
jam
nuts
(HH)
against
the
sides
of
the
lever,
centering
it in the slot.
See
figure
6.
13.Attach
the
spring
(LL)
to
the end
hole
in the
latch
lock
lever
(C)
and
to the
center
hole
in the draw
bar
tongue
(K)
with
spring
assembly
tool
(N
N
),
as
shown
in
figure
6.
l4.Assemble
the end
of
the
hitch bracket
(D)
(smaller
hole)
through
the
slot
at the
front
of
the
draw
bar
tongue
(K).
Fasten
it to the
tongue
using
the
8
mm
x25
mm bolt
(AA)
and
8
mm
nylock
nut
(GG).
15.
Assemble
the
hitch
pin
(OO)
to the
hitch
bracket
(D)
by
using
the
hair
cotter
pin
(KK)
.
See
figure
7.
CD
@
@
@
8
mm
x
95
mm
Bolt
8 mm
Nylock
Hex
Nut
8mm
Jam
Nut
S
pring
x1
x1
x2
x1
@
A mm
x25
mm Bolt
@
I
mm Nylock
Hex
Nut
@
nair Cotter
Pin
@
Hitch Pin
x1
x1
x1
x1
Fig.
6
Hardware Used
Fig.7
Hardware Used
TOP.VIEW
BOTTOM-VIEW
