955205_01 11/11 6
Sidedress Applicaon
The RowFlow Liquid Sidedress system will consist of one of two harness opon. In addion, the
system will include two major components of the RowFlow Liquid Planter system. The Pressure
Sensor, the Flow Meter and select components of the RowFlow base system will be idened
below. Either harness opon will require the 20/20 SeedSense Display, SeedSense Tractor
Harness, Cab Control Module (CCM), CAN extension, and RowFlow Module (RFM). Also required
will be a height sensor and a PWM controlled hydraulic motor to power the liquid pump.

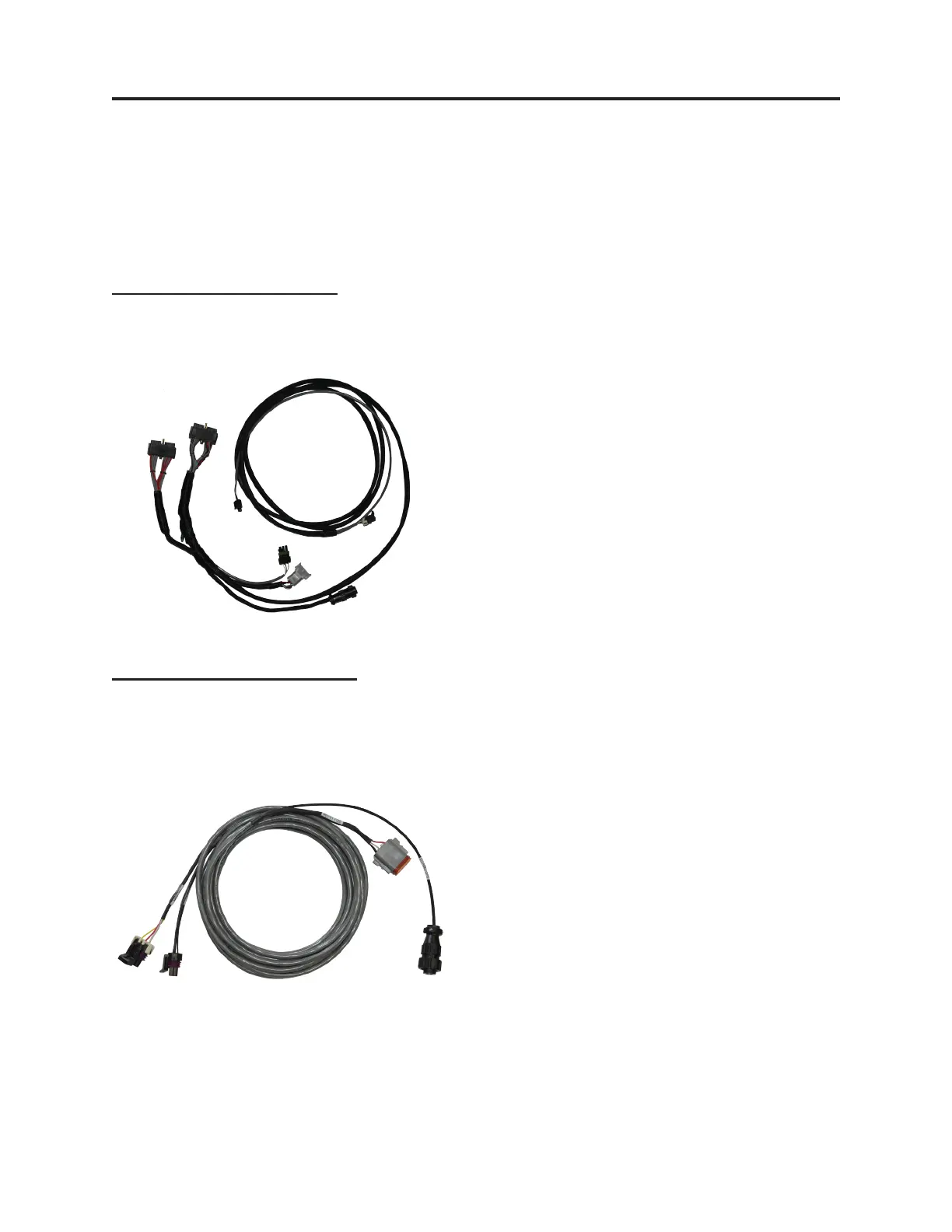

Sidedress Base Harness
727310
The Sidedress Base Harness connects directly to
the RFM through the two Cinch connectors on the
RFM. This harness connects to the Hydraulic Motor
Harness (727111), a height sensor or height sensor
harness, the 9-pin CAN communicaon back to the
CCM, the Pressure Sensor (727301), and the Flow
Meter sensor.
Sidedress Sensor Harness
727307 The Sidedress Sensor Harness requires installaon
with the RowFlow Base Harness (727011). This
harness will connect to the Drive Motor 1, 8-pin
Deutsch connecon (NOTE: This harness MUST be
connected to Drive Motor 1 connector; it will not
funcon in the other two connectors). The Flow
Meter sensor and the Pressure Sensor also connect
to this harness. Power for the Pressure Sensor is
pulled from the AUX connector (4-pin AMP) on the
RF Base Harness. In this setup, the Hydraulic Motor
harness (727111 - MUST connect into Drive
Motor 2 connector) and height sensors will
connect through the RowFlow Base Harness.
