Precision Power PRO 104 - Page 11

11

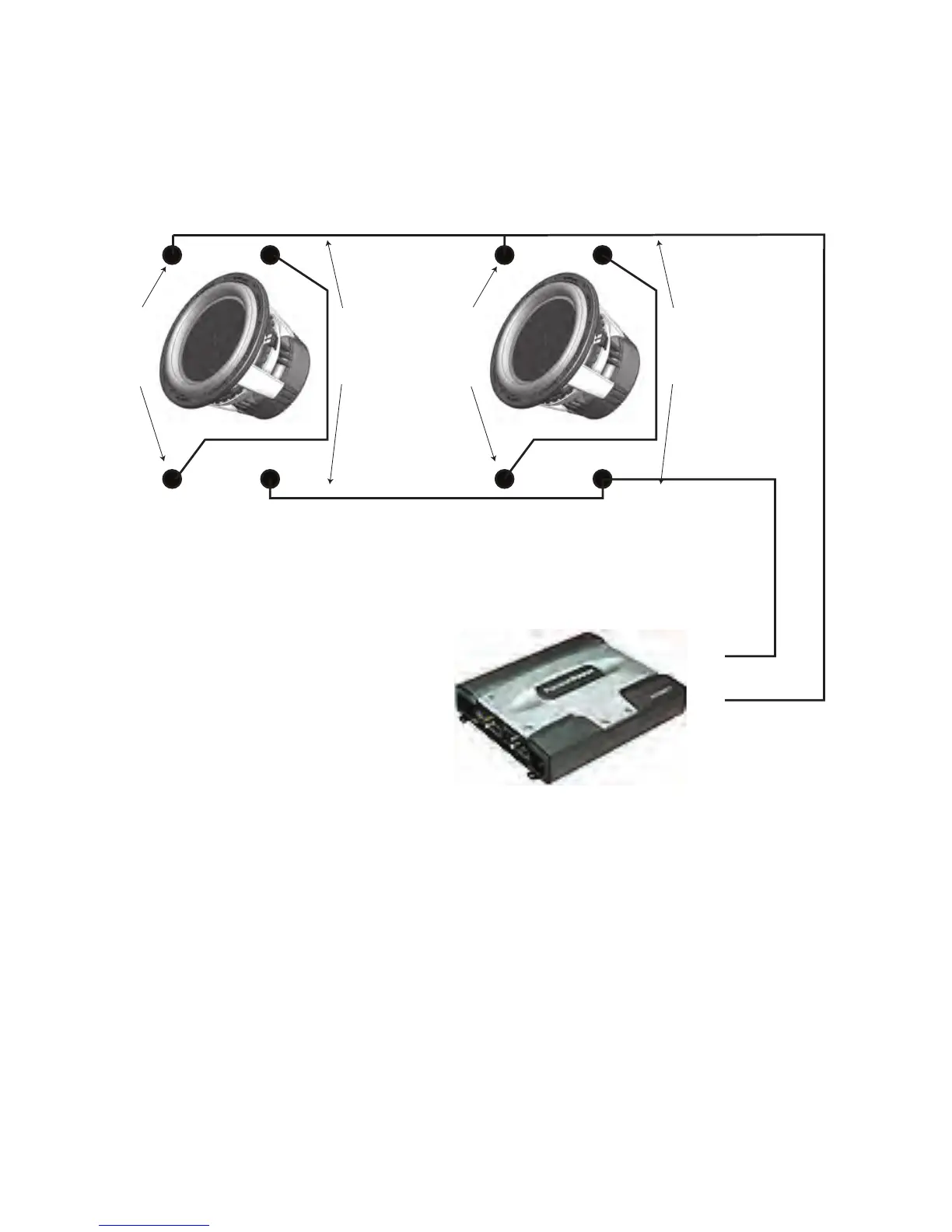

Technical Brief:
How to properly wire a PPI woofer in series/parallel to a PPI
amplifier for maximum power and performance.
4 ohm 4 ohm
+
+
- -
4 ohm 4 ohm
+
+
- -
+
-
1. Connect each woofer in series by connecting the negative (-) of
the first coil to the positive (+) terminal of the second coil.
2. Wire the positive (+) terminals of the first coil of each woofer to
the positive (+) terminal on the amplifier. Wire the negative (-)
terminal of the second coil of each woofer to the negative (-)
terminal on the amplifier.
3. This wiring show the amplifier a 4 ohm load.
