10

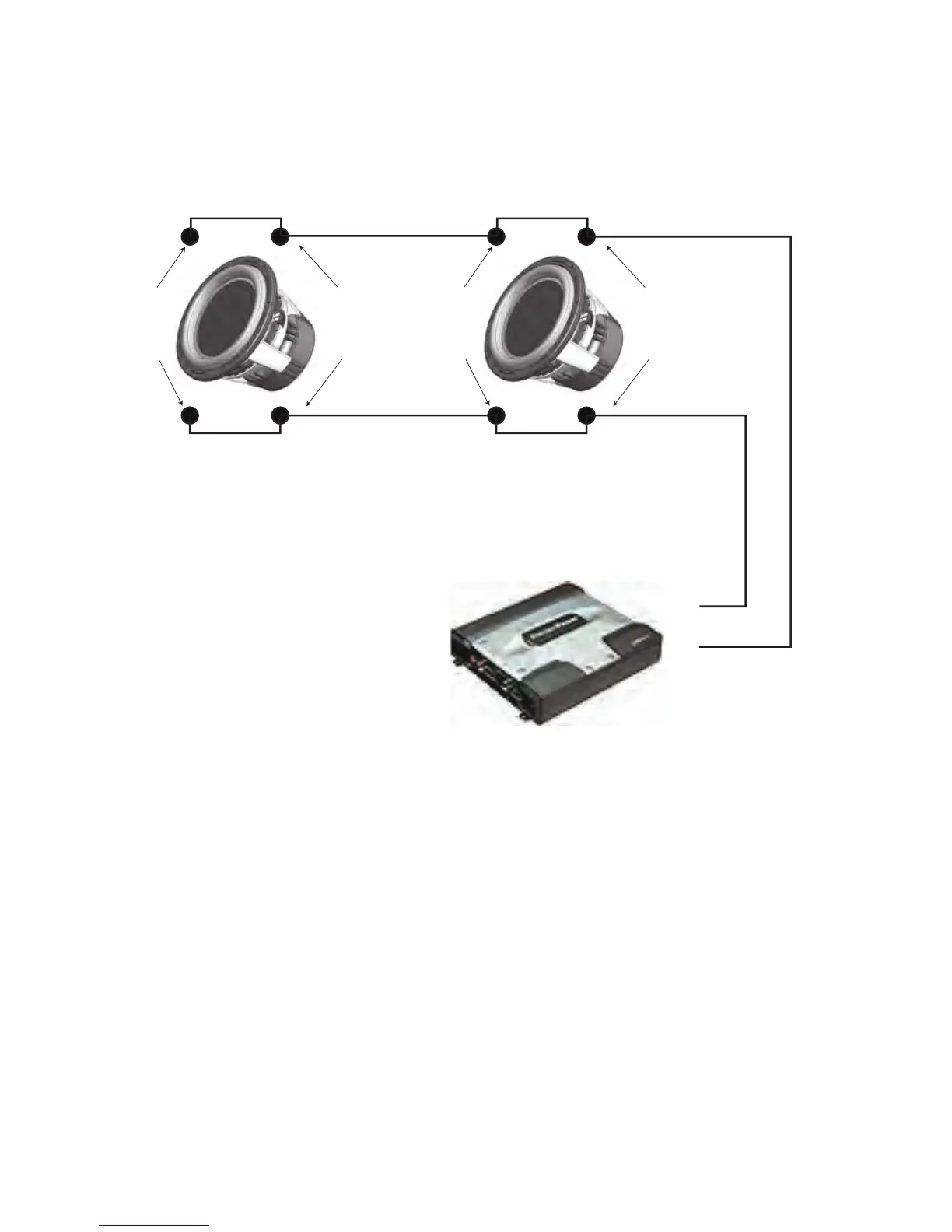

Technical Brief:
How to properly wire a PPI woofer in parallel to a PPI amplifier for
maximum power and performance.
4 ohm 4 ohm
+
+
- -
4 ohm 4 ohm
+
+
- -
+
-
1. Wire the two speaker's voice coil parallel by connection the two
+ terminals together and the two - terminals together.
2. Wire the positive (+) terminals of the speakers to the positive (+)
terminal on the amplifier. Wire the negative (-) terminals of the
woofers to the negative (-) terminal on the amplifier.
3. This wiring show the amplifier a 1 ohm load.
