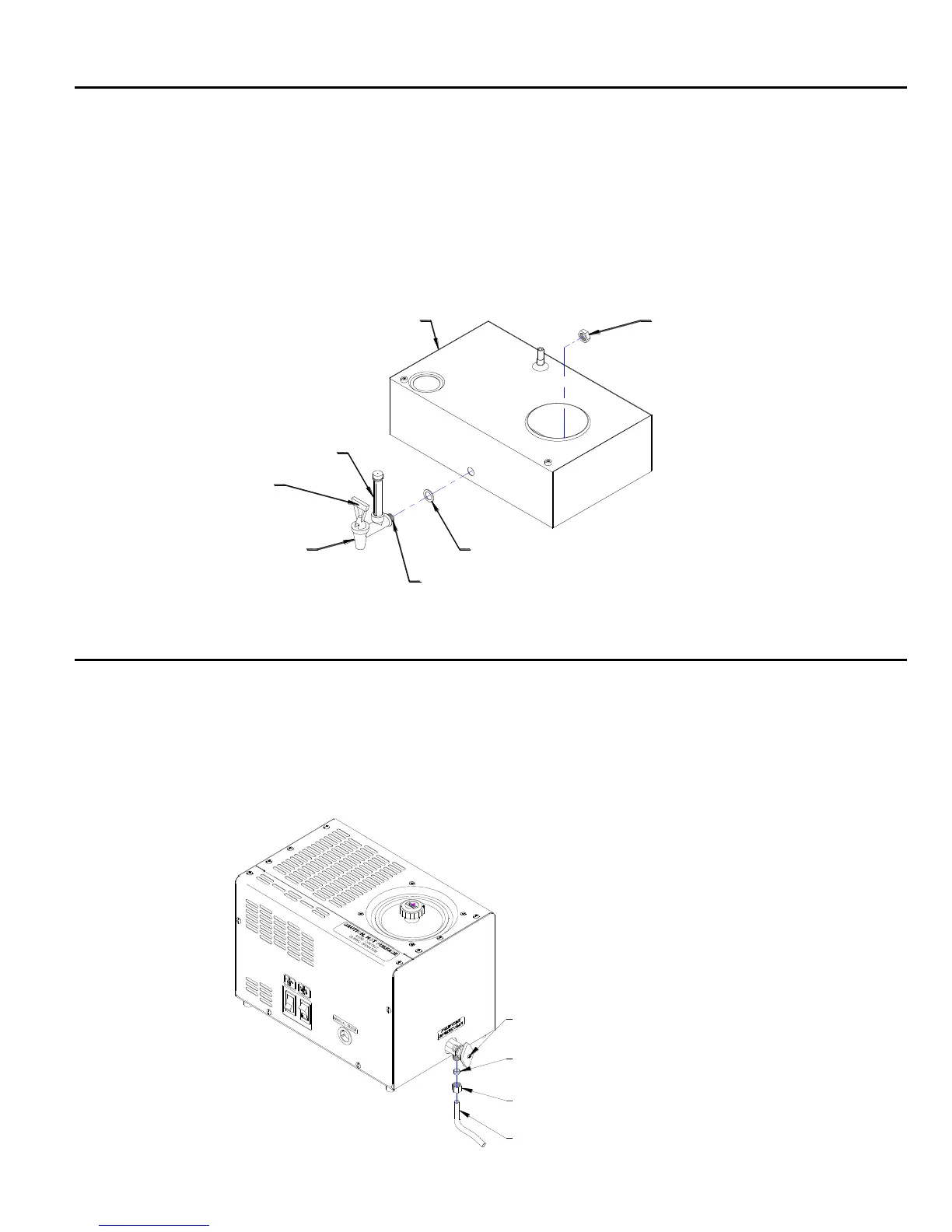

STEP 1 STORAGE TANK FAUCET
Remove the hex nut from the threaded faucet end. Push the gasket tightly over the threads up
against the faucet. Insert threaded faucet end with gasket through the opening found at the bottom
portion of the water storage tank. Take the hex nut in one hand and through the large opening on
top of the storage tank insert hand to find the faucet end. Place the hex nut on the threaded faucet
end. To tighten the nut, turn faucet counter-clockwise 1/8 of a turn. Hand tighten the hex nut.
Holding the nut, turn the faucet clockwise until it is upright. Do not push the sight gauge, as it is
fragile!
STEP 2 IMPURITIES DRAIN TUBE EXTENSION
Remove the compression nut and brass compression ring from the impurities drain valve. Slip the
compression nut over impurities drain tube so ½ of the nut is down onto the tube. Secure the
compression ring into the compression nut. Position the curved impurities drain tube away from the
distiller. Turn the compression nut attached to the impurities drain tube onto the drain valve and
tighten securely with wrench or pliers.
Impurities Drain Valve
Compression Ring
Compression Nut
Imprurities Drain Tube
Hex
Nut
Water Storage Tank
Gasket
Threaded Faucet End
Faucet
Faucet
Handle
Sight Gauge
