STEP 3 SET UP
Place the distiller head on the storage tank. Place the head over the feet on the top of the storage
tank and position the back of the distiller over the storage tank float post. Be sure that the sight
gauge faucet and the distiller control switches are facing the same direction.
STEP 4
Remove the ¼” feed line and the faucet adapter kit and install onto the household water faucet.
Run the feed line to the distiller. Before inserting the line into the distiller’s ¼” plastic fitting, remove
the red locking clip, push the line into the fitting and reinstall the locking clip. Please Note: Saddle
Valve Kit is optional, see optional accessories on page 12.
Turn the water supply on. Plug the distiller into a proper-grounded wall receptacle. Turn the distiller
Power and Fan Switch on by pushing on top of the switches. Please note the water switch is
located at the rear of the distiller. You will turn this switch on as well. At this time, your distiller will
start to fill with water until the water level is above the heating element. At this point you should get
ready for steam sterilization. See step 5.
Or

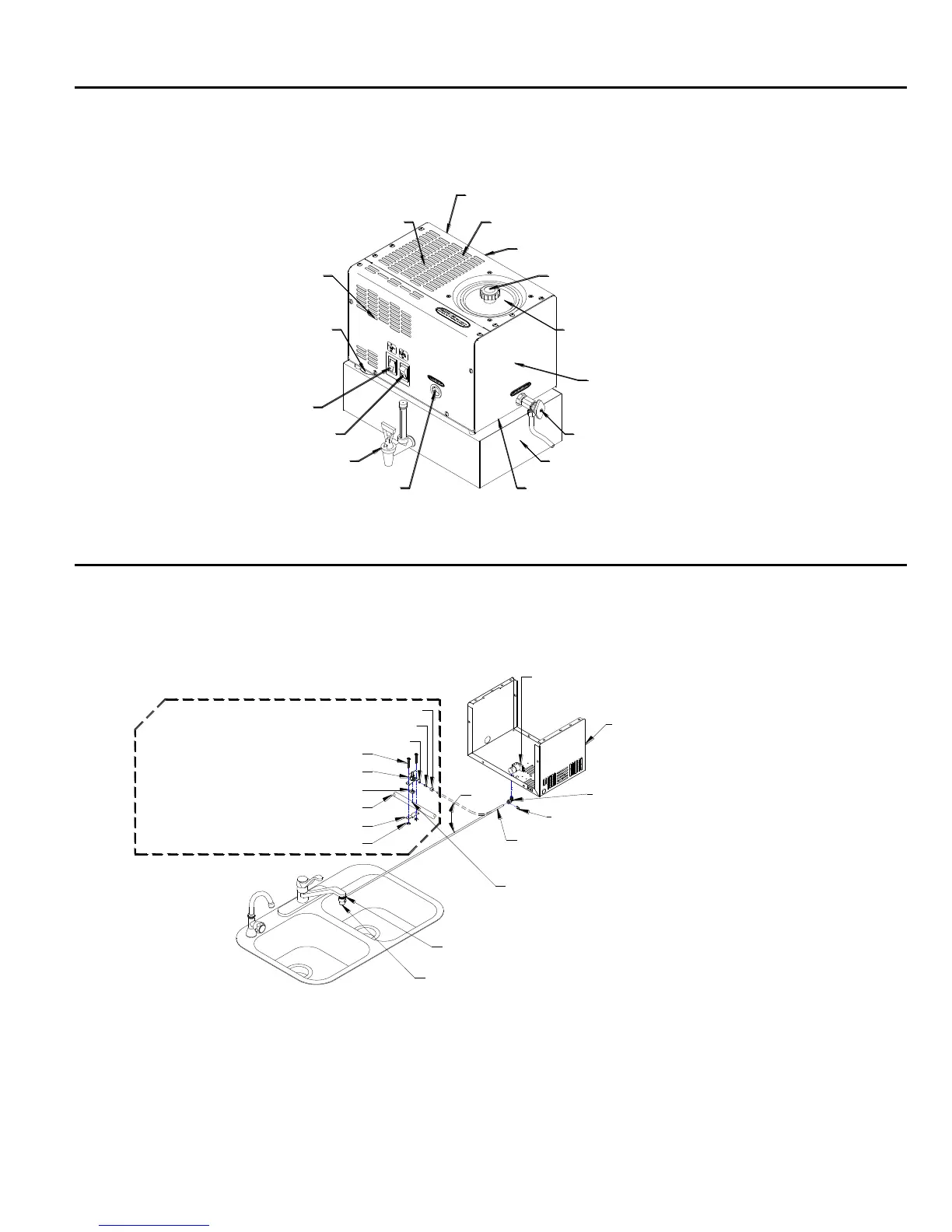

Ferrule, 1/4"
Faucet Adapter, 1/4" HB
Copper Tube-No Driiling
*Steel Tube-Drill 1/8"Ø
*Brass Tube-Drill 1/8"Ø
*Shut Off Water Supply
Nuts
Saddle Valve Lower Clamp
Kitchen Faucet
Optional Saddle Valve Kit
Water Supply Tube
Saddle Valve
Rubber Seal
Insert
Compression Nut
Bolts
Ferrule
1/4"O.D. Water Feedline
Distiller Body
Locking Clip, 1/4"JG
Elbow 90° 1/8MPT X 1/4"JG
Solenoid Valve
Gas Release Vent (hidden)
Water Switch (hidden)
Condensing Coil (inside)
Fan (inside)
Charcoal Filter Cup
(inside the storage tank)
Fan Switch
Power Switch
Sight Gauge and Drain Valve Storage Tank
Impurities Drain Valve
Boiling Tank (inside)
Water Fill Connection (hidden)
Boiling Tank Knob
Boiling Tank Lid
Reset Switch
Storage Tank Lid (hidden)
