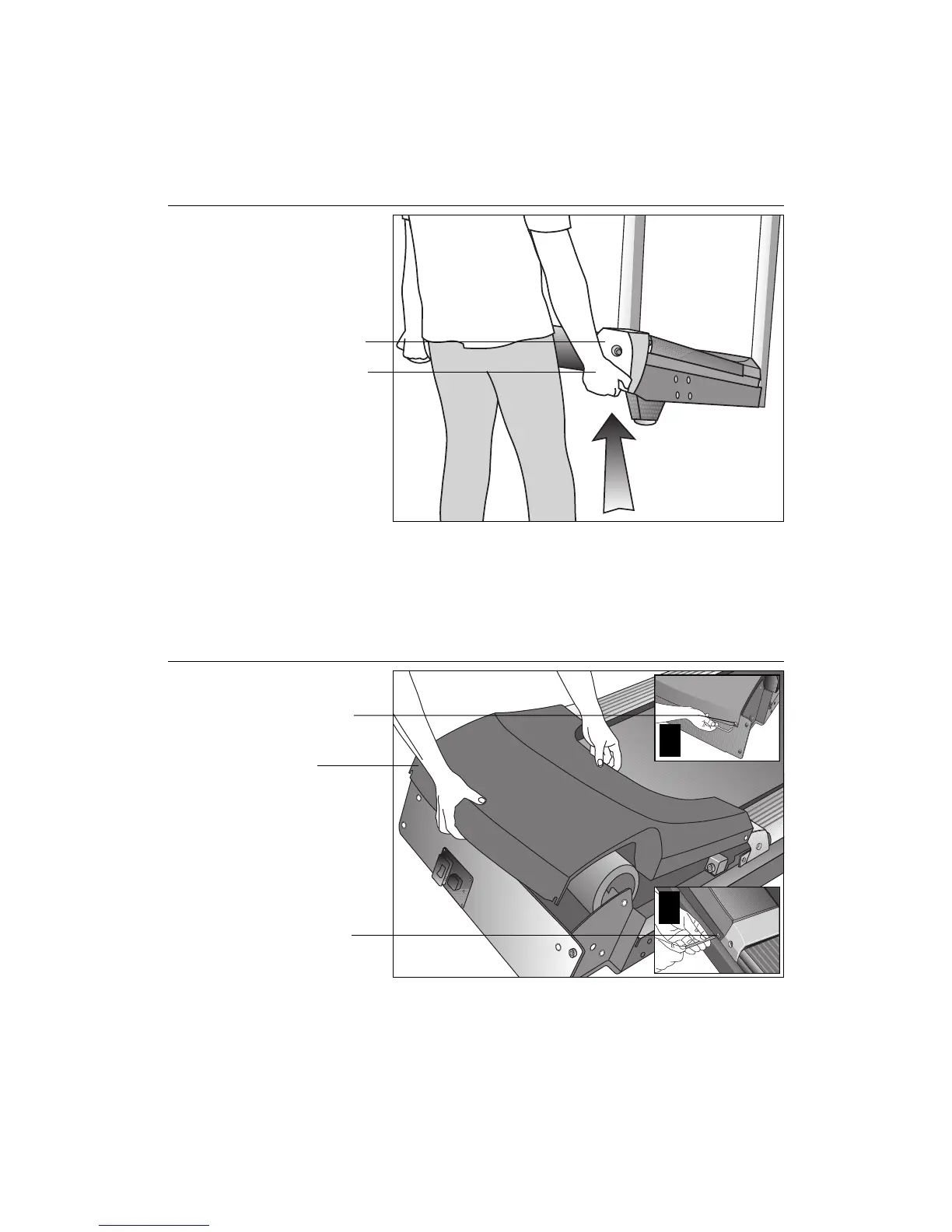

Diagram 3
Lift the unit by
grasping the
hand holds
inside the rear
end caps.
Lift the rear of the
unit and roll it to
its assembly
location.
Rear end cap
3. Move the treadmill. Diagram 3. Grasp the hand holds inside the rear end
caps and use proper lifting techniques to lift the rear end so that you can roll
the treadmill on its front wheels. To avoid injury to yourself or damage to the
unit, ask for help in placing the treadmill where you plan to use it.
Diagram 4
Side screw
Remove the
hood.
Hood
4. Remove the hood. Diagram 4. Loosen and remove the four buttonhead screws
using the 3/16-inch hex key. Inset #1 shows the location of one of the front
screws. Inset #2 illustrates the location of the side screw. The other is on the
opposite side. Lift the hood off the treadmill and set it aside.
1
2
Front screw
To Next Page
