page 12
COMMERCIAL PRODUCTS DIVISION

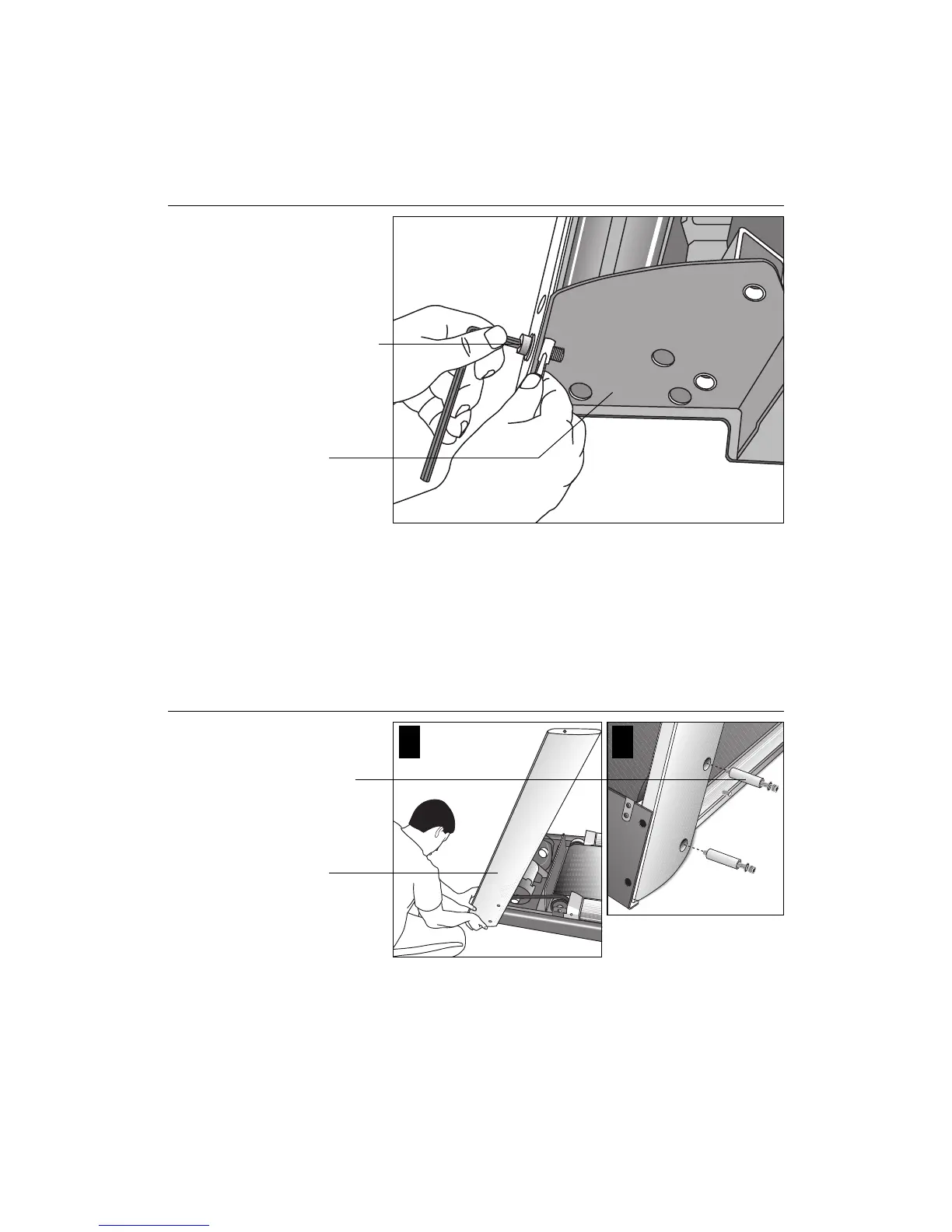

5. Attach the left side upright support. Diagram 5. Take the following steps.
a. Remove the shipping fasteners from the front panel. With the supplied hex
key and a ½-inch box end wrench, loosen and remove the two bolts, washers
and nuts on the left side of the front panel. These fasteners hold the front
panel in place during shipping. (The front panel will drop slightly when you
remove the fasteners.) Discard the nuts, but keep the bolts and washers.
Diagram 5
Remove the
shipping
fasteners from
the left side front
panel.
Shipping
fasteners found
on left and right
sides of the front
panel.
Diagram 6
Secure the left
upright support.
Screws (D),
washers (E),
and barrel
spacers (F)
b. Attach the left upright support by placing it inside the base mount and
aligning the mounting holes. Obtain two bolts, washers and barrel spacers
from the Hardware kit. Place a washer and barrel sleeve on each bolt and
insert the fasteners through the side of the upright support and into the
base mounts. Use the 1/4-inch hex key to secure the bolts, but leave room
for adjustments. See Diagram 6, #1.
c. Reinsert the two shipping fasteners (bolts and washers only) removed in
step 5a, and finger tighten. See Diagram 6, #2.
1 2
Left upright
support
Left side
mounting
bracket
