COMMERCIAL PRODUCTS DIVISION
CAUTION: To avoid damage to the display cable, read the following steps
carefully. Damage to the cable due to improper assembly is not covered
by the Precor limited warranty.

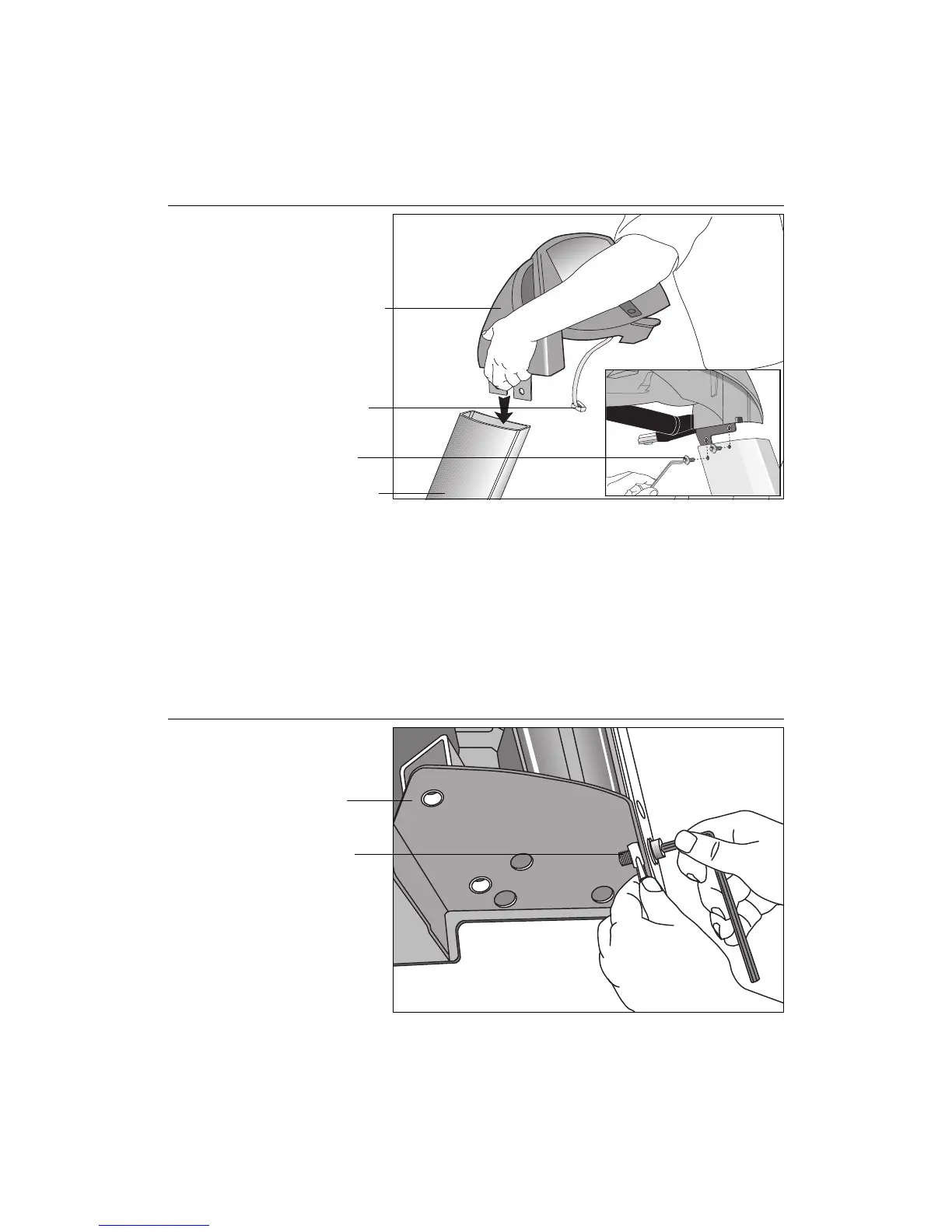

6. Secure the display console to the left upright support. Diagram 7. Remove
any tape or wire ties that secure the display cable. Unwrap the cable to remove
kinks. Ask an assistant to hold the display console in place while you attach it to
the left upright support using two buttonhead screws (A) with washer (B).
Finger tighten.
Diagram 7
Attach the
display console
to the left upright
support.
Left side
upright support
Screws (A) with
washers (B)
Display cable
Display console
Diagram 8
Remove right
side front panel
screws.
Front panel
fasteners
Right side
mounting bracket
7. Prepare to attach the right side upright. Diagram 8. Take the following steps:
a. Remove the shipping fasteners from the right front panel. Follow the same
process as in step 5a. With the supplied hex key and a ½-inch box end
wrench, loosen and remove the two bolts, washers and nuts on the right side
of the front panel.
