14 Assembling and Maintaining the 835 Climber
Important: When wrench tightening, the head of the fastener
should be flush with the product. If it is not, cross-threading
has occurred. Do not attempt to rework the assembly as more
damage to the equipment will occur. Contact Customer
Support. Refer to Obtaining Service.
If you plan to move the unit, obtain help and use a hand
truck. Do not grasp any plastic parts while lifting or
moving the unit. The plastic parts are not capable of
supporting the weight of the unit and they may break.

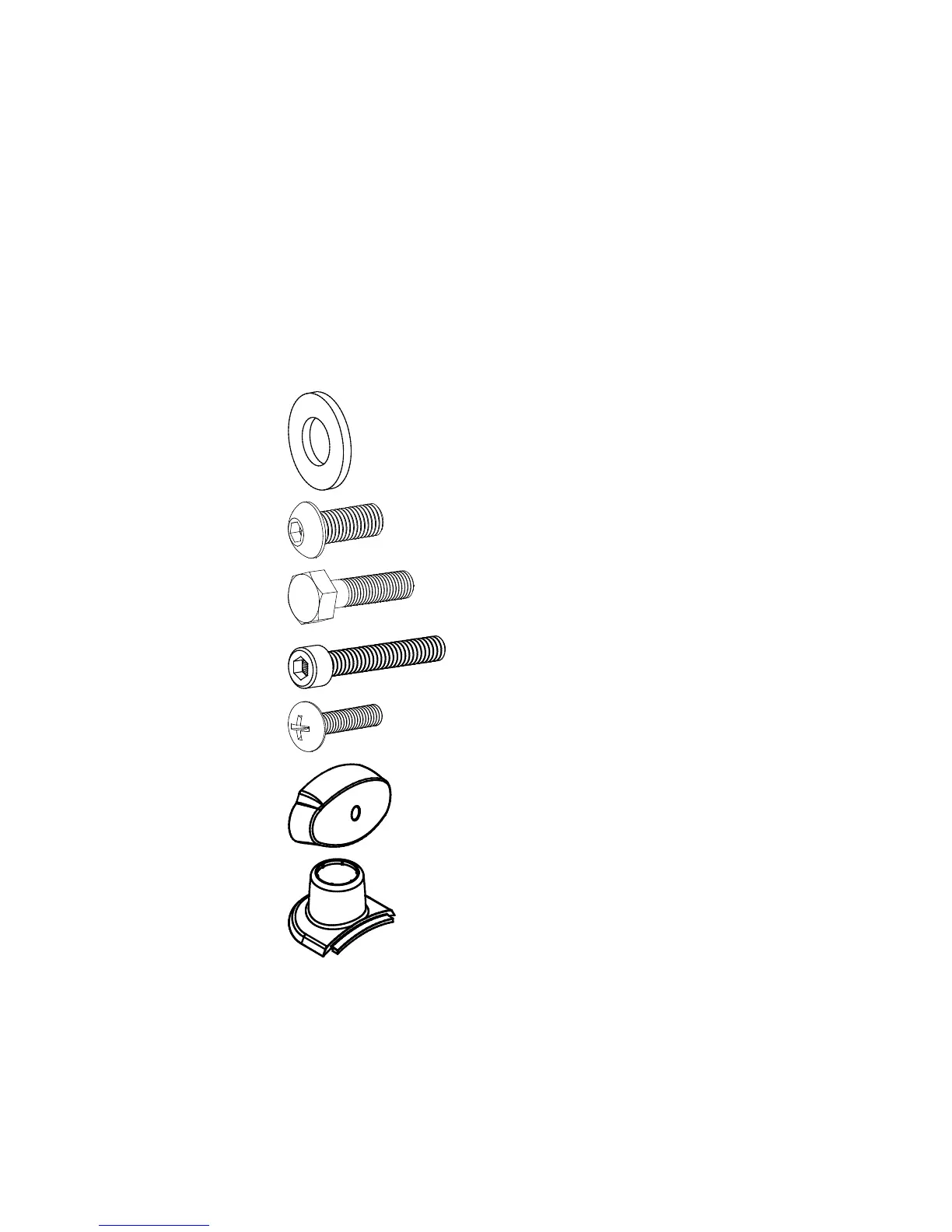

Hardware Kit (not to scale)
Fasteners
Quantity
Washer (⁵₁₆-inch inside
diameter, 0.688-inch outside
diameter)
4
Buttonhead screw (¹₂-inch) 6
Hex head screw (1-inch) 4
Sockethead cap screw
(1¹₄-inch)
2
Phillips-head screw (³₄-inch) 3
End cap 2
Lower handrail boot 2
