20 Assembling and Maintaining the 835 Climber
Attaching the Handrails
Use the following procedure to install the external handrails
on the climber.
To attach the handrails:
1. Slide a lower handrail boot onto each handrail.

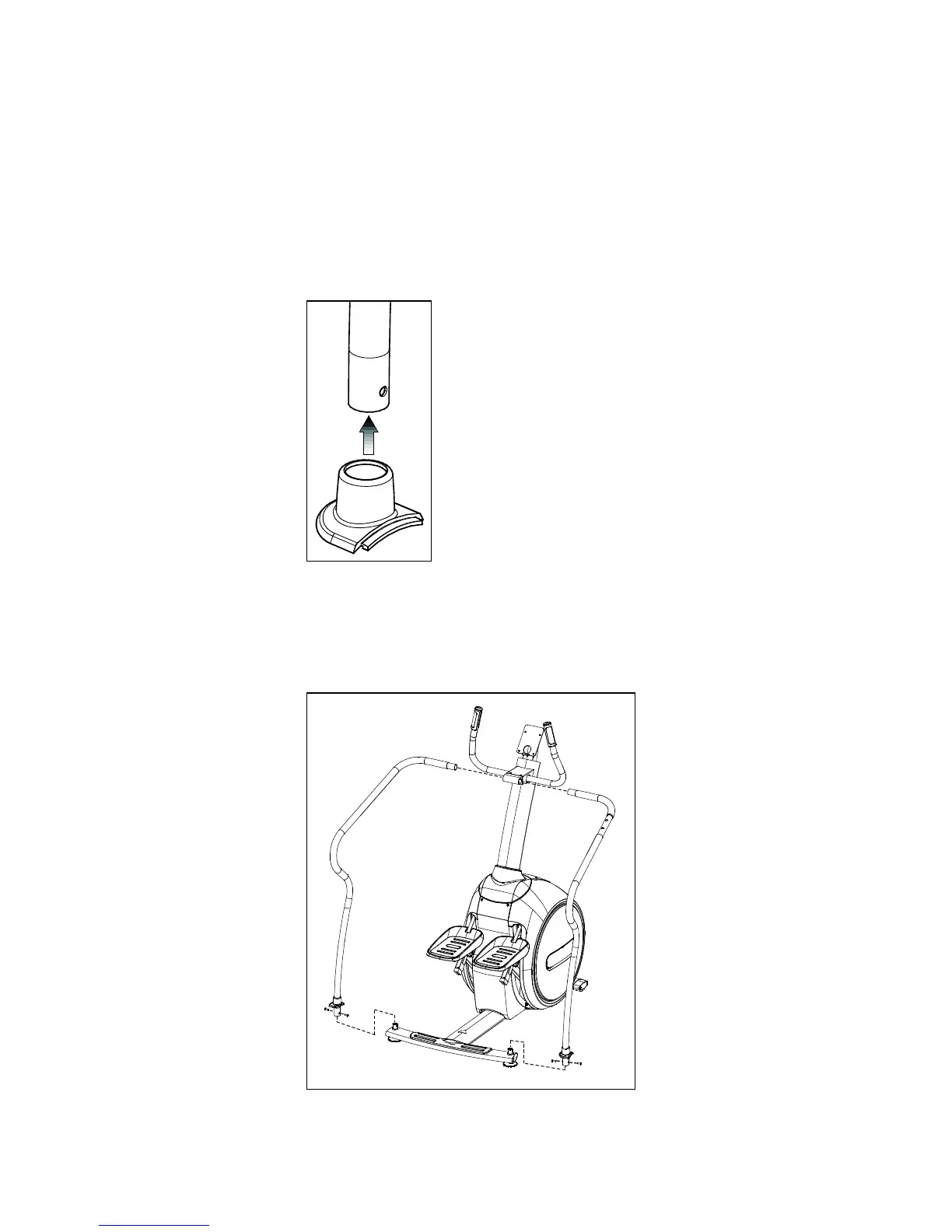

Figure 8: Adding the handrail boot
2. Insert the lower handrails onto the base pegs, then slide
the upper portions of the handrails into the handrail clamp
until the foam pads touch the clamp.
Figure 9: Attaching the handrails
