Precor Experience Series Assembly Guide

P62 Console Installation Guide
WARNING
Before you connect any cables to the console, make sure that the equipment is not connected to any external power source or
plugged into the wall.
For more equipment information and troubleshooting, visit us at www.precor.com.

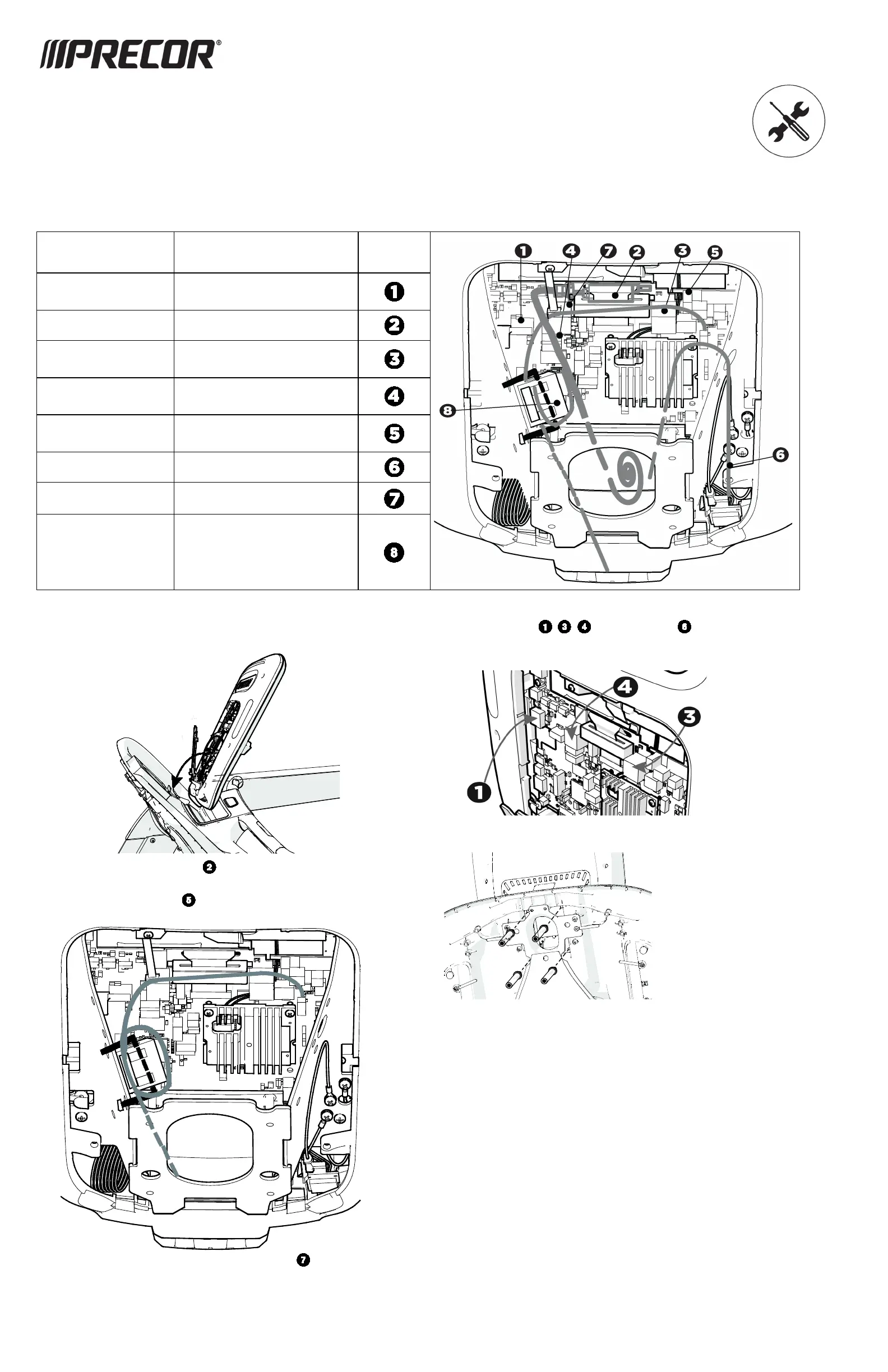

Cable
Connector Type
Connector
Location
Safety key
(TRMs only)
Six-contact strip, keyed
TV F-type coaxial with isolator
Ethernet (LAN)
Eight-contact modular on round
black cable
Data from base unit
Eight-contact modular on flat gray
cable
Power
Two-contact plug, polarized and
latched
Heart rate sensor Four-contact strip, keyed
microSD card slot Eight-contact strip
Ferrite mount N/A
To attach and wire the console:
1. Set the console on the rectangular hook at the bottom of the console mount
and hold it in place.
2. Remove the isolator extender
, connect the TV coaxial cable to it, then
reattach them to the console.
3. Connect the power cable
,after passing it through and wrapping around
the ferrite mount.
4. Verify the microSD card is securely mounted (see
above).
5. Connect the cables
as shown below ( is lower
board) by routing cables through the larger hole in the mount
bracket.
6. Tilt the console back onto the mounting bracket and secure it
with the mounting bolts, making sure to fully tighten the bolts.
7. Follow the checklist and set of instructions on the next page to
test that the console and equipment are working.
8. Attach the fasteners to reinstall the console rear cover after you
finish the tests.
9. To connect to a network:
10. Go to
Settings
>
System Settings
>
Connectivity
.
 Touch
Network Type
>
Wired (or Wi-Fi)
>
OK
.
 Touch
Configure
. Select a network from the list and enter your
credentials to access that networked.
 Touch the Back button to return to the Connectivity screen. Your
settings will be automatically saved.
