Precor GluteBuilder GPL622/3DAB - Page 12

12

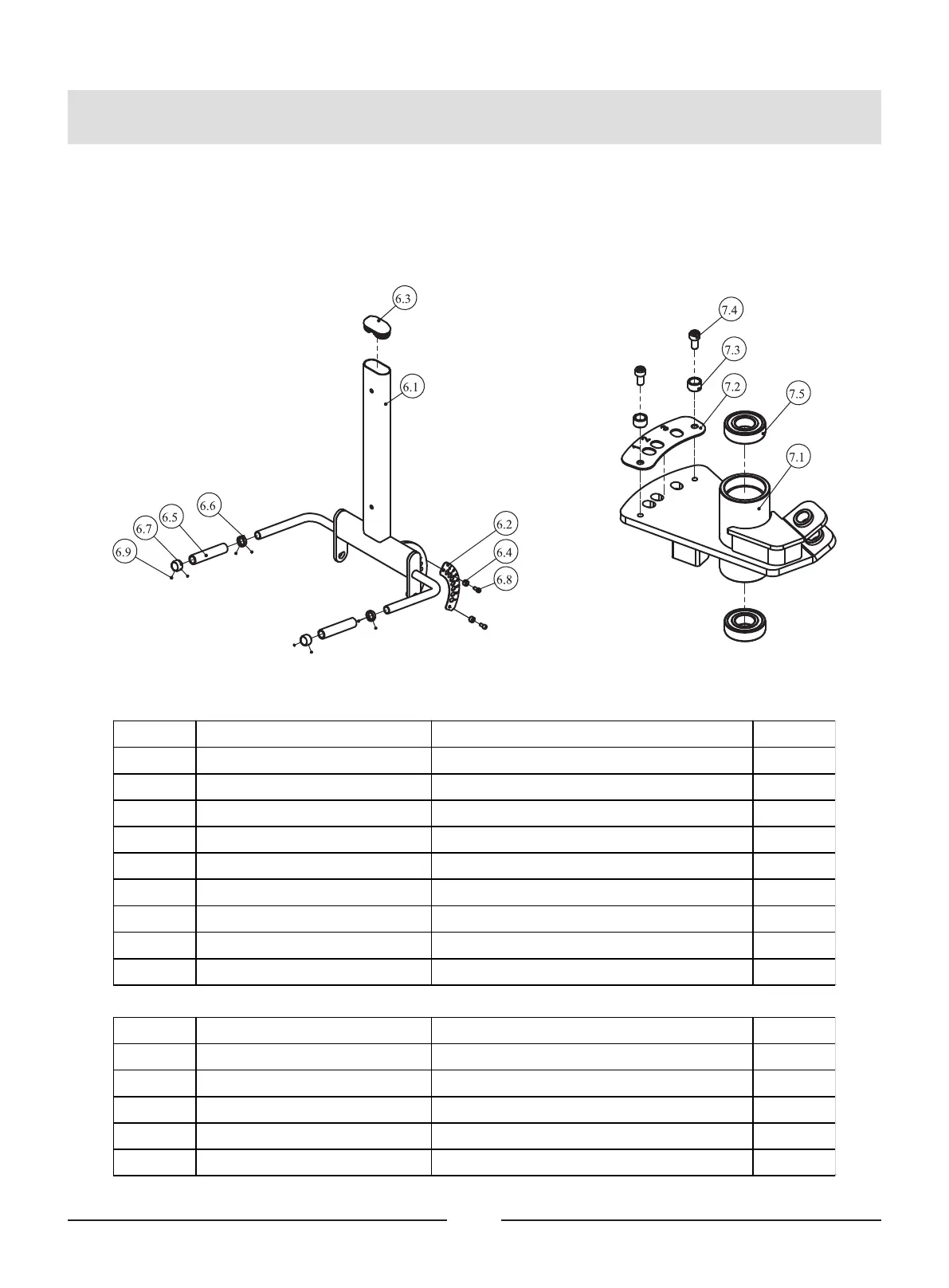

Exploded View and Parts List
Cushion Frame ASSY Adjustment Frame ASSY
Item No. Part No. Description QTY
6.1 3DAB0200 Cushion Frame 1
6.2 3DAB1400 Lining Board 1
6.3 PKB3300 Large Elliptical Pipe Plug R50*100 1
6.4 IN-S10111200 Limit Sleeve 2
6.5 CWRVL0231900 Grip 2
6.6 V39500V2 Aluminium Grip Ring Φ25.4 2
6.7 V39600V2 Aluminium Grip Cap Φ25.4 2
6.8 GB70M8*15DY20NL Socket Head Cap Screw M8*15 2
6.9 YZGB7710-32*3.2DY2 Socket Set Screw 10-32*3.2 8
Item No. Part No. Description QTY
7.1 3DAB0600 Adjustment Frame 1
7.2 3DAB1500 Lining Board 1
7.3 IN-S10111200 Limit Sleeve 2
7.4 GB70M8*15DY20NL Socket Head Cap Screw M8*15 2
7.5 GB2766205-2ZC3 Bearing 6205-2ZC3 2
