Precor GluteBuilder GPL622/3DAB - Page 13

13

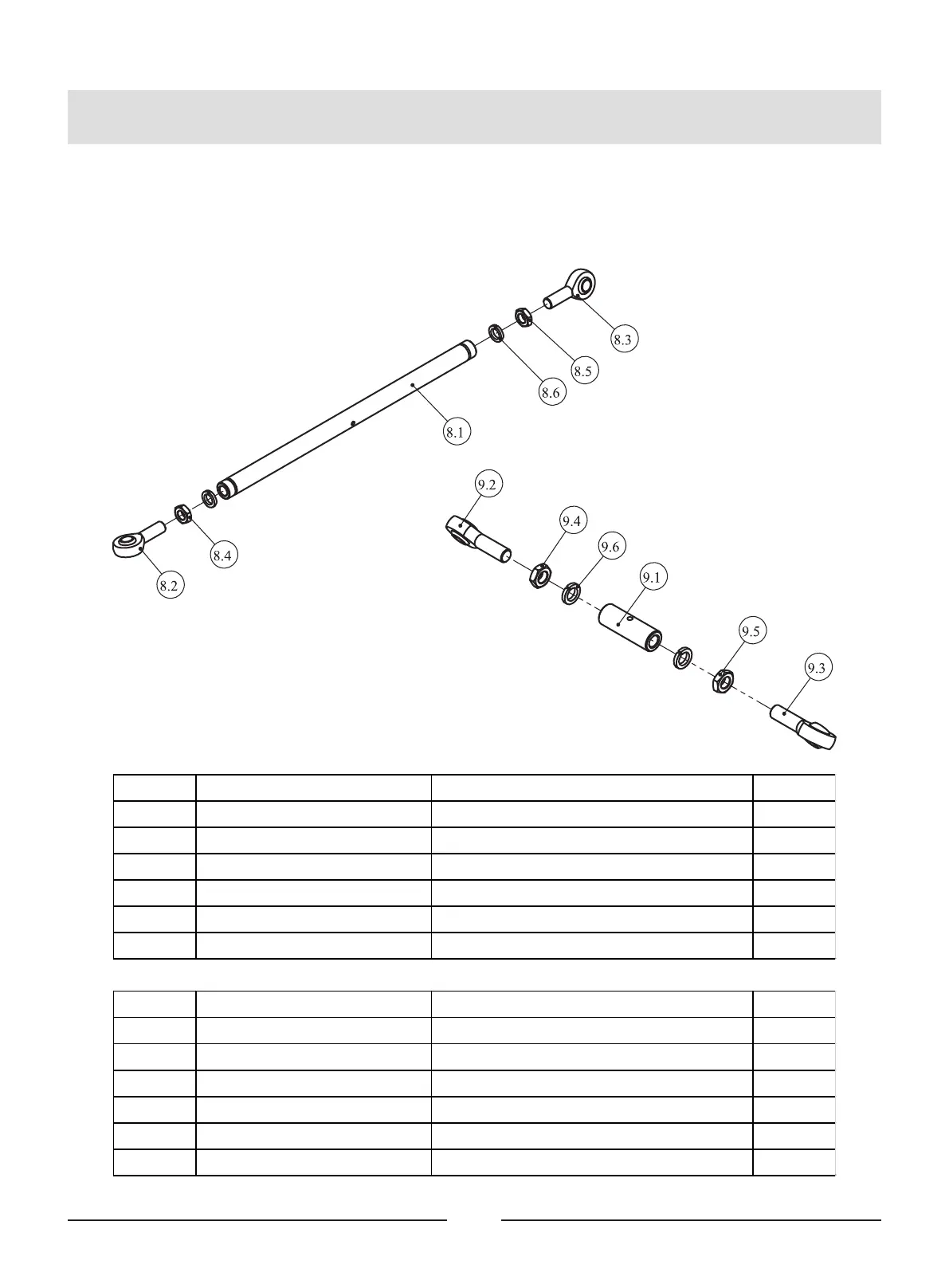

Exploded View and Parts List
Connecting Rod
Frame ASSY
Short Connecting
Rod ASSY
Item No. Part No. Description QTY
8.1 3DAB0700 Connecting Rod Frame 1
8.2 SA16 Oscillating Bearing 1
8.3 SAL16 Left Oscillating Bearing 1
8.4 GB6172.1M16DY2 Hex Nut M16 1
8.5 GB6172.1LM16DY2 Left Hex Nut M16 1
8.6 GB9316DY12 Spring Washer Φ16 2
Item No. Part No. Description QTY
9.1 3DAB0900 Short Connecting Rod 1
9.2 SA16 Oscillating Bearing 1
9.3 SAL16 Left Oscillating Bearing 1
9.4 GB6172.1M16DY2 Hex Nut M16 1
9.5 GB6172.1LM16DY2 Left Hex Nut M16 1
9.6 GB9316DY12 Spring Washer Φ16 2
