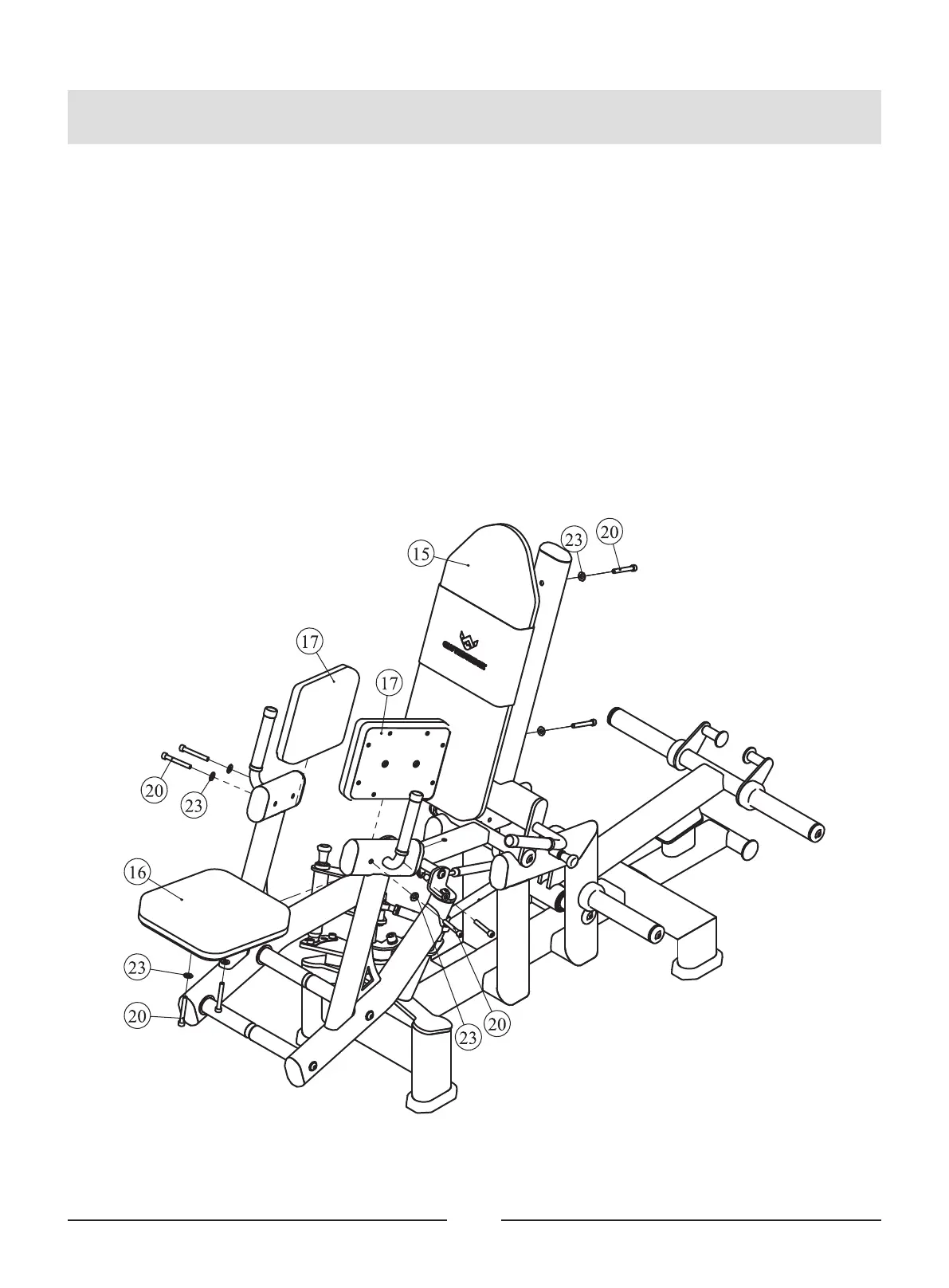

STEP 5
1. Attach one Cushion I (#15) to Cushion Frame ASSY (#6), using:
two Socket Head Cap Screw M10*75 (#20)
two Flat Washer Φ11*Φ23*2 (#23)
2. Attach one Cushion II (#16) to Main Stand ASSY (#5), using:
two Socket Head Cap Screw M10*75 (#20)
two Flat Washer Φ11*Φ23*2 (#23)
3. Attach two Cushion III (#17) to Sway Leg Frame 1 ASSY (#2) and Sway Leg Frame 2
ASSY (#3), using:
four Socket Head Cap Screw M10*75 (#20)
four Flat Washer Φ11*Φ23*2 (#23)
Assembly
20
