Assembly
19
STEP 4

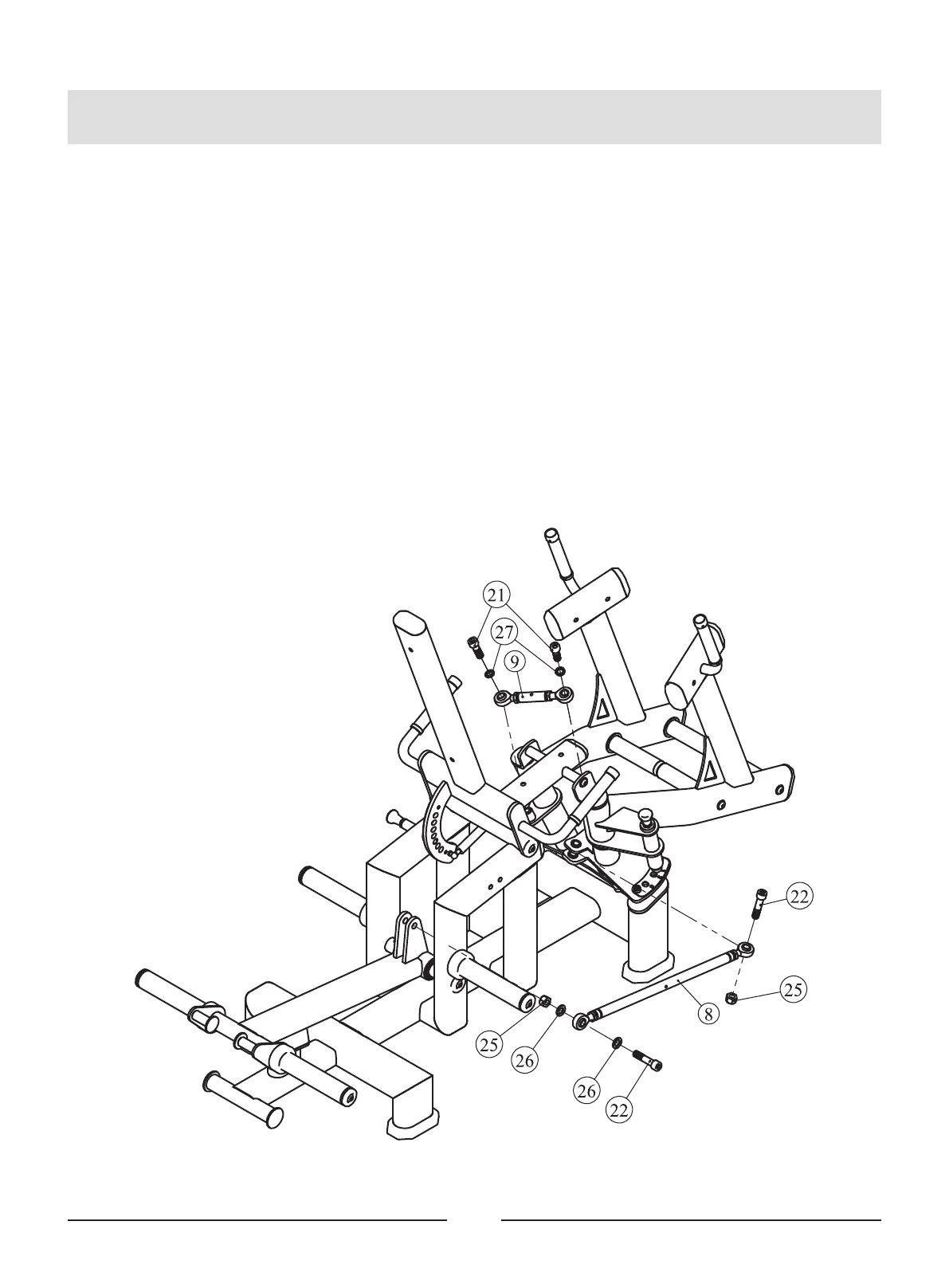

1. Attach one Connecting Rod Frame ASSY (#8) to Sway Leg Frame 2 ASSY (#3) and
Barbell Frame ASSY (#1), using:
two Socket Head Cap Screw M16*70 (#22)
two Nylon Lock Nut M16 (#25)
two Flat Washer Φ17.5*Φ30*3 (#26)
2. Attach one Short Connecting Rod ASSY (#9) to Sway Leg Frame 1 ASSY (#2) and Sway
Leg Frame 2 ASSY (#3), using:
two Socket Head Cap Screw M16*45 (#21)
two Spring Washer Φ16 (#27)
3. If Sway Leg Frame 1 ASSY (#2) and Sway Leg Frame 2 ASSY (#3) are asymmetry after
installation, loose the Connecting Rod Frame ASSY (#8) and Short Connecting Rod ASSY
(#9) nuts firstly, adjust length till achieving symmetry legs, then tighten the nut.
