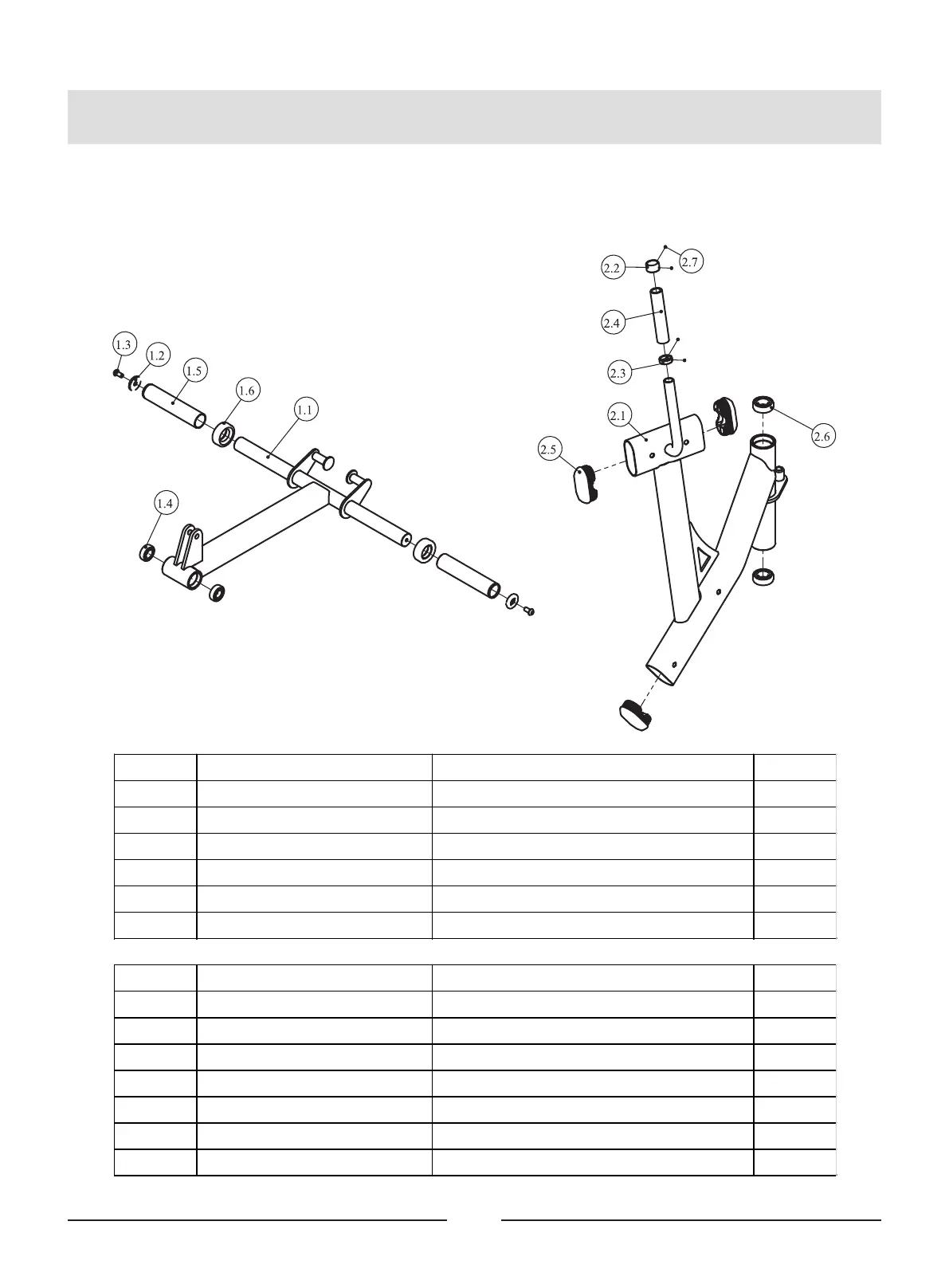

Exploded View and Parts List
Barbell Frame ASSY
Sway Leg Frame 1 ASSY
Item No. Part No. Description QTY
1.1 3DAB0300 Barbell Frame 1
1.2 BB-PL5000V1 Aluminium Cap Φ49*Φ12.5*10 2
1.3 PNLM12*25DY20NL Button Head Cap Screw M12*25 2
1.4 GB2766205-2ZC3 Bearing 6205-2ZC3 2
1.5 HZ70022000 Short Barbell Casing 2
1.6 PL1301600 Buffer Pad Φ76*26 2
Item No. Part No. Description QTY
2.1 3DAB0400 Sway Leg Frame 1 1
2.2 V39600V2 Aluminium Grip Cap Φ25.4 1
2.3 V39500V2 Aluminium Grip Ring Φ25.4 1
2.4 CWRVL0231900 Grip 1
2.5 PKB3300 Large Elliptical Pipe Plug R50*100 3
2.6 GB2766205-2ZC3 Bearing 6205-2ZC3 2
2.7 YZGB7710-32*3.2DY2 Socket Set Screw 10-32*3.2 4
