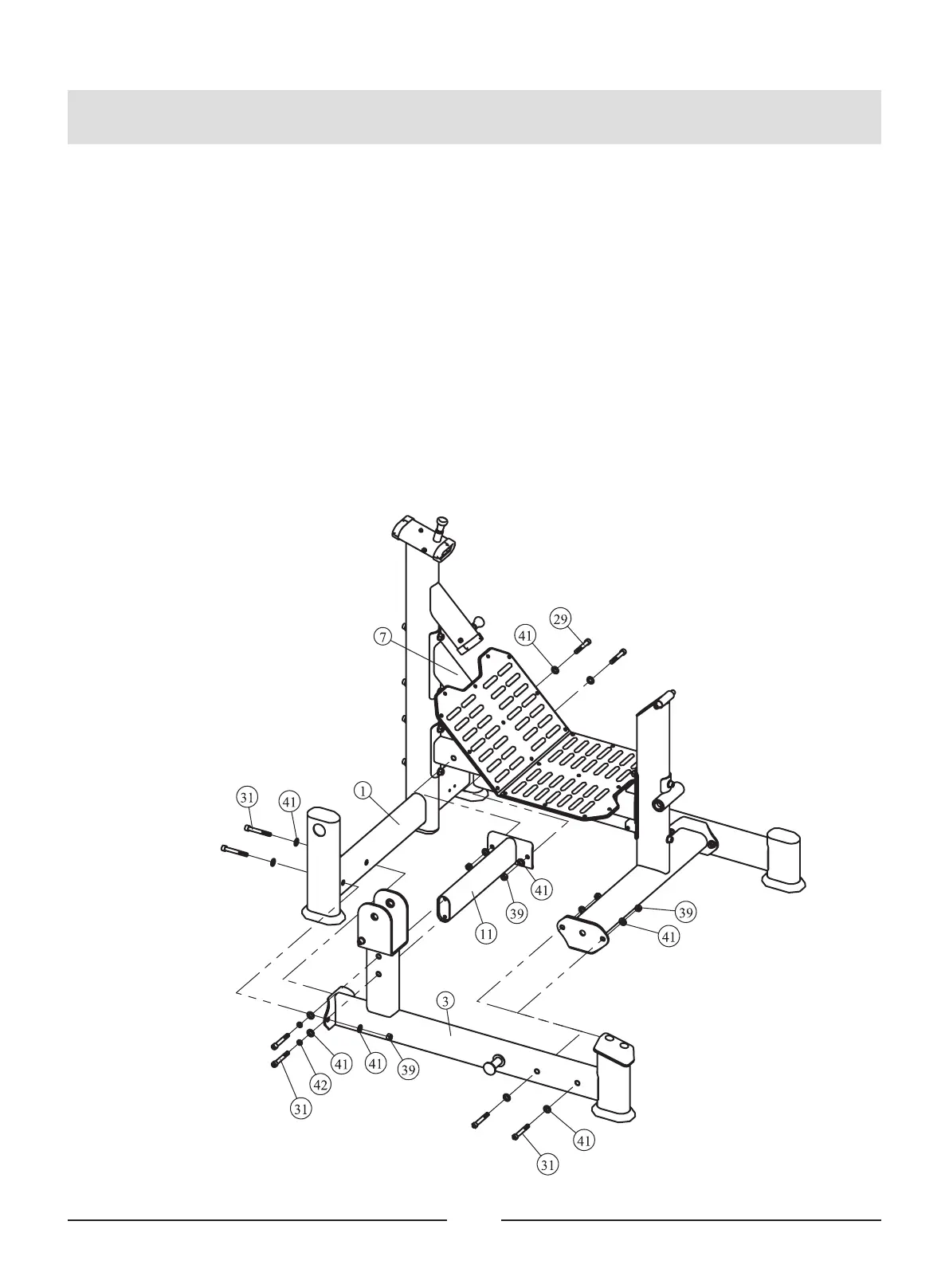

STEP 3
1. Attach one Link Span (#11) to Pedal Frame ASSY (#7), using:
two M12*75 SHCS (#29)
two M12 Nylon Lock Nut (#39)
four Φ13*Φ26*2 Flat Washer (#41)
2. Attach one Bearing Frame ASSY (#3) to Rear Main Frame ASSY (#1), Link Span (#11),
Front Main Frame ASSY (#4), using:
six M12*85 SHCS (#31)
four M12 Nylon Lock Nut (#39)
ten Φ13*Φ26*2 Flat Washer (#41)
two Φ12 Spring Washer (#42)
Note: Adjust the position of the parts and tighten the bolts with wrenches. Tighten ALL
bolts with wrenches at this time.
Assembly
22
