Precor GluteBuilder GPL724/D45HE - Page 23

Assembly
23

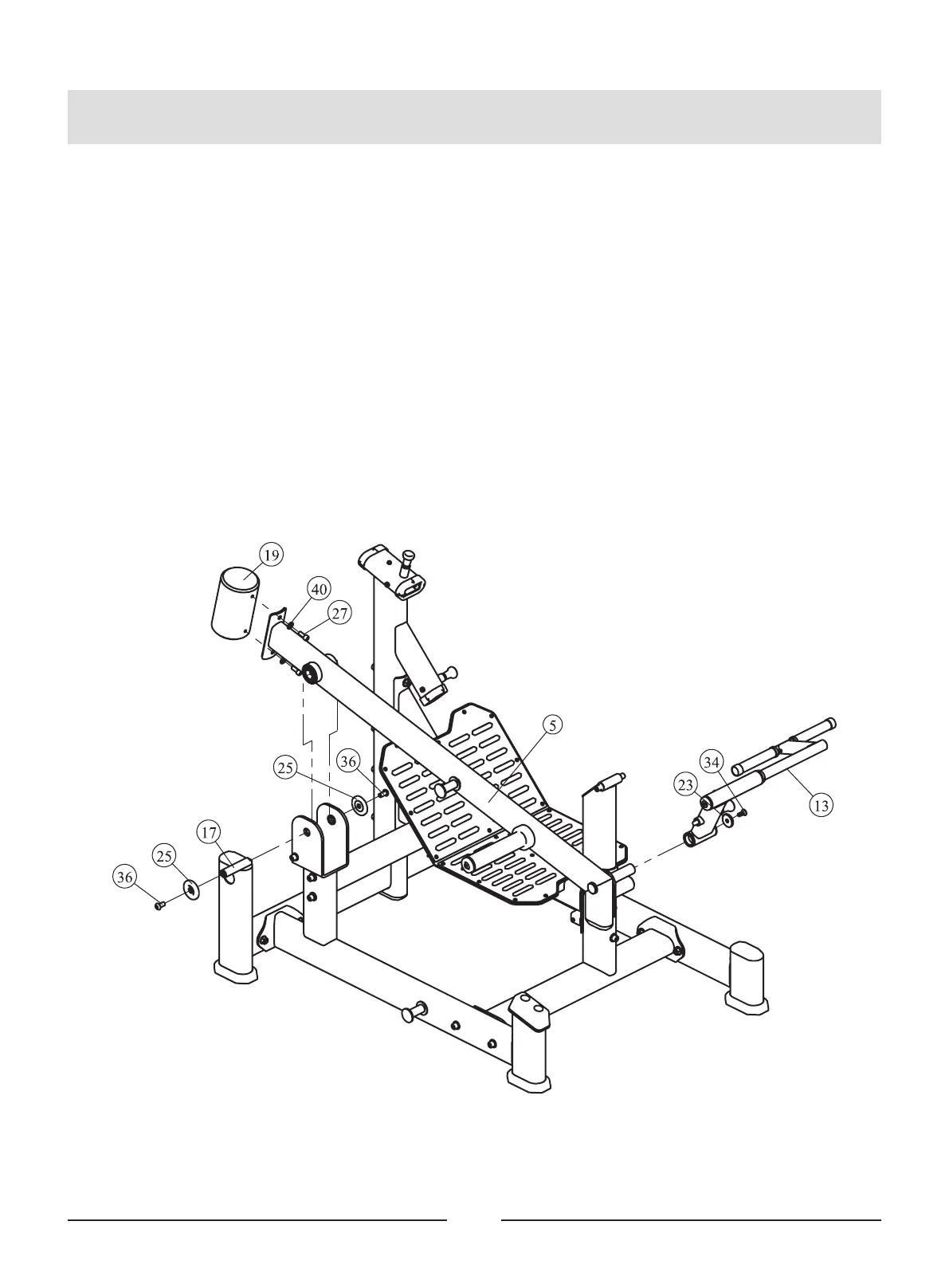

STEP 4
1. Attach one Swing Frame ASSY (#5) to Bearing Frame ASSY (#3), using:
one Shafe (#17)
two Cap Φ63 (#25)
two M12*25 BHCS (#36)
2. Attach one Pull Handle ASSY (#13) to Swing Frame ASSY (#5), using:
two Cap Φ43 (#25)
two M10*25 FHCS (#34)
3. Attach one Balanced Iron (#19) to Swing Frame ASSY (#5), using:
two M10*25 SHCS (#27)
two Φ11*Φ23*2 Flat Washer (#40)
Note: Wrench Tighten Bolts.
