Plug the cables into the console
If necessary
, refer to your Console Installation Guide.
IMPORTANT
DO NOT str
etch, crimp, or damage the cable. Cables damaged by improper
installation will not be covered by the Precor Limited Warranty.

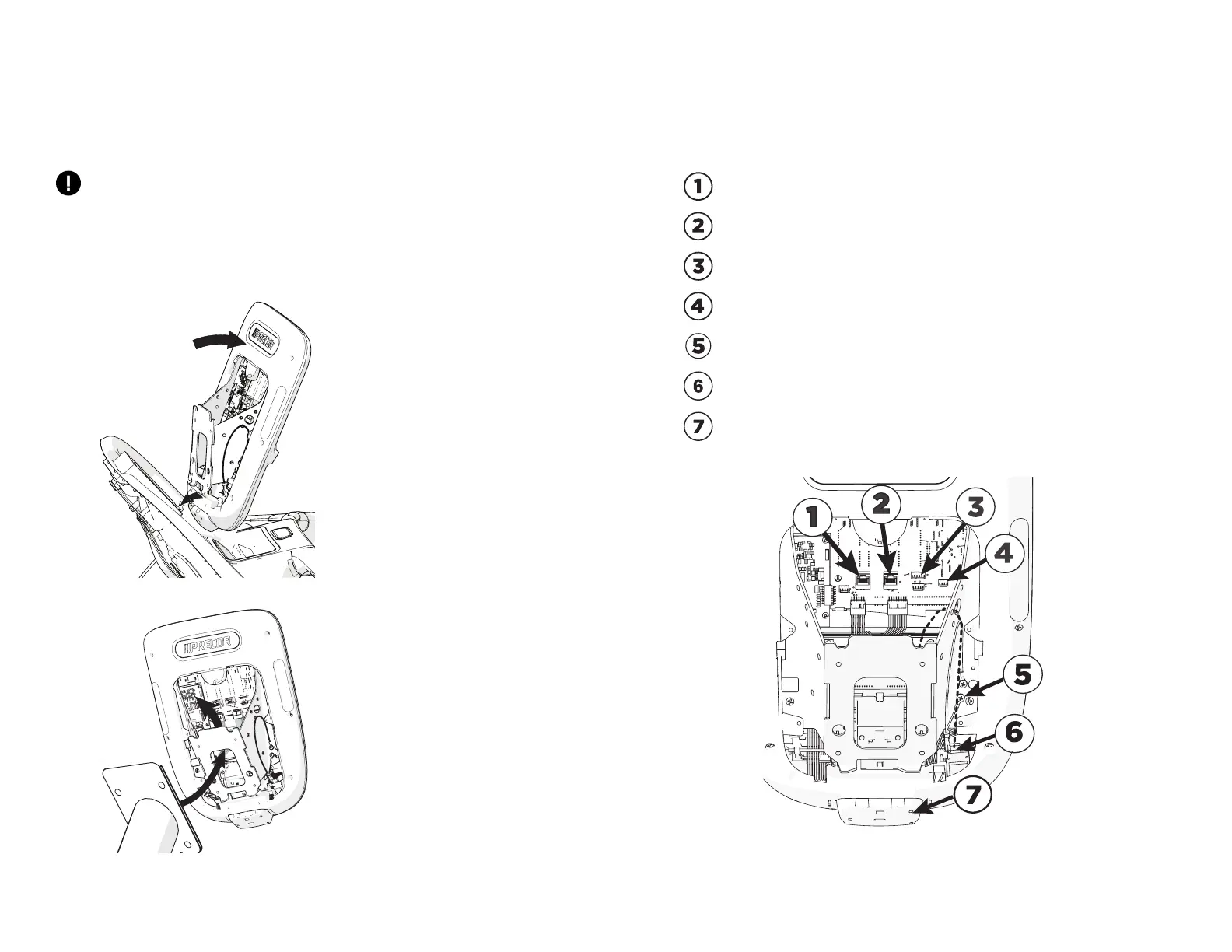

To route the cables:
1. Tip the console forward and hold it in place.
2. Pass all cables through the opening just above the console mount hook.
Use the following table to plug the cables into the console:
Key Cables
Data cable (Lower PCA) from the base unit
CSAFE
Safety (Stop) key (treadmill only)
USB charging cable
Ground wire
Heart rate sensor (see dotted line in gur
e for routing)
Chin
14
To Next Page
