Page 23For technical questions, please call 1-800-1-800-444-3353.Item 69735
SAFETYOPERATIONMAINTENANCE SETUP

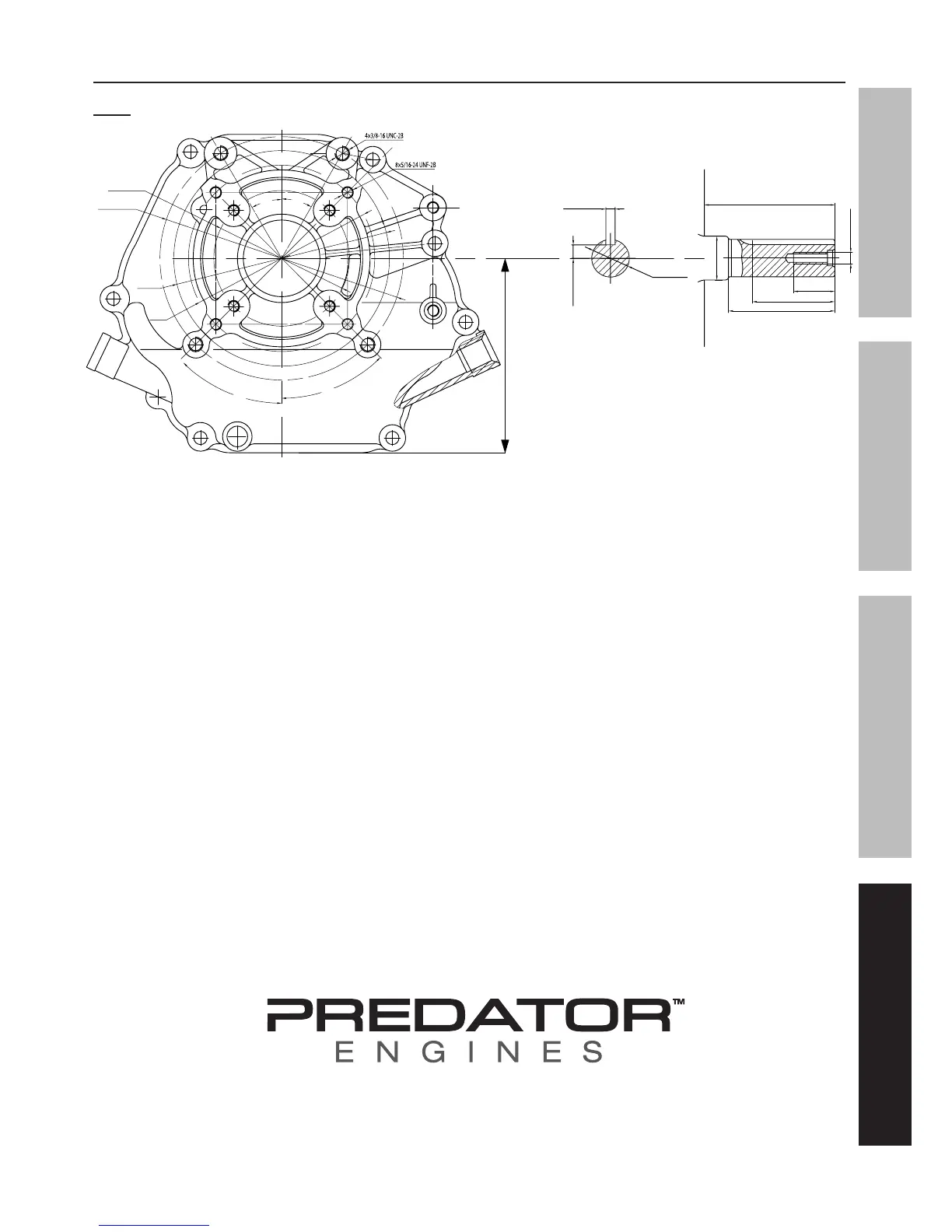

Power Take-Off Diagram
Note: Not to scale.
3.48 in. / 88.5mm
Ø1.17 in. / 29.7mm
2.84 in. / 72.2mm
2.2 in. / 56mm
1.1 in. / 28mm
3/8-24UNF
Ø1 in. / 25.4mm
0.36 in. / 9.13mm
0.25 in. / 6.35mm
(30°)
(30°)
(45°)
(45°)
5.25 in. / 133.5mm
Ø3.625 in. / 92mm
Ø6.5 in. / 165.1mm
Ø5.75 in.
/ 146mm
Ø5 in. /
127mm
