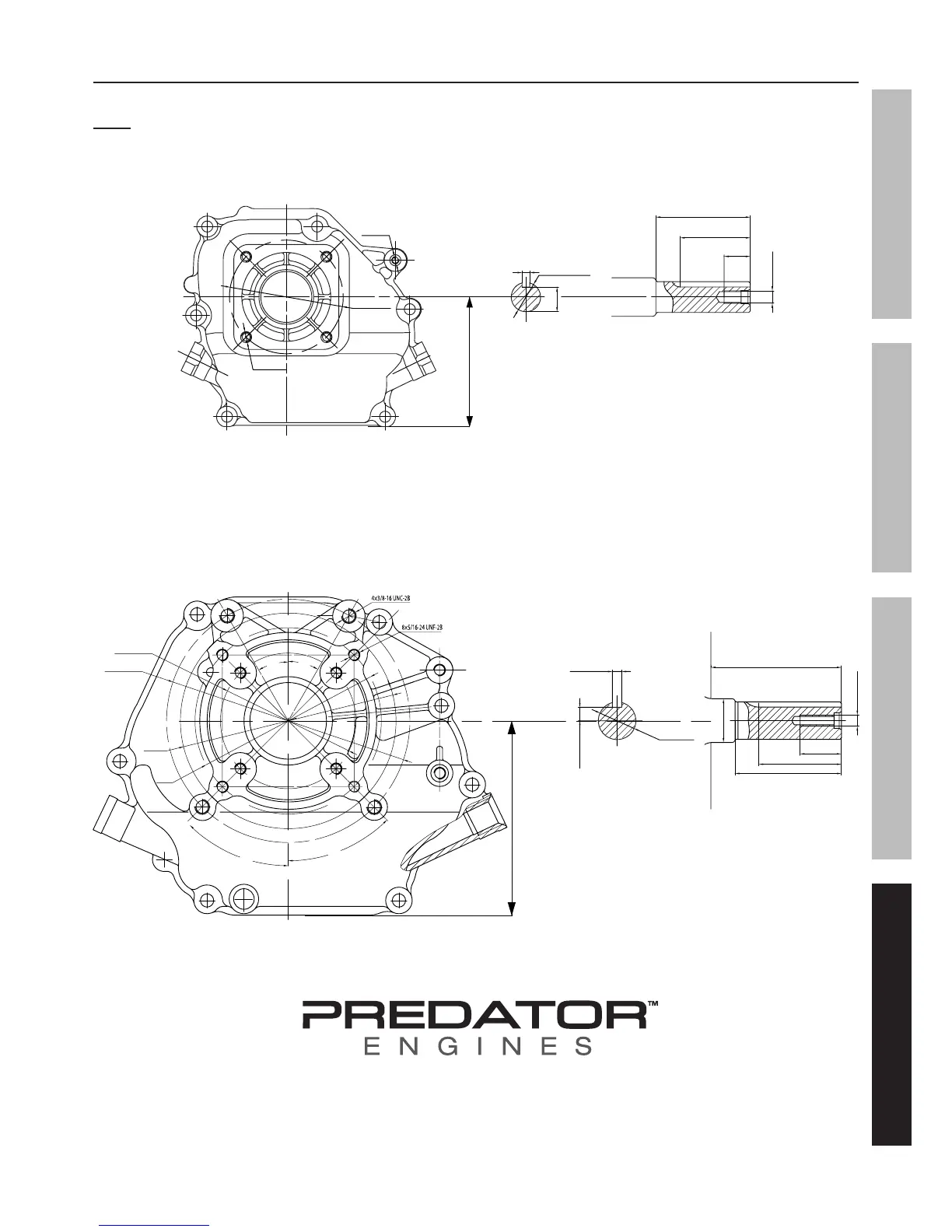

Power Take-Off Diagrams
Note: Not to scale.
ITEM 68120 / 68121 212cc
2.43 in. / 61.7mm
1.79 in. / 45.5mm
0.67 in.
/ 17mm
5/16-24UNF
Ø0.75 in. / 19.05mm
0.64 in.
/ 16.36mm
0.1875 in. / 4.78mm
4x5/16-24UNF
5/16-24UNF
4.17 in. / 106mm
Ø3.625 in. / 92mm
ITEM 68136 346cc and ITEM 68306 420cc
3.48 in. / 88.5mm
Ø1.17 in. / 29.7mm
2.84 in. / 72.2mm
2.2 in. / 56mm
1.1 in. / 28mm
3/8-24UNF
Ø1 in. / 25.4mm
0.36 in. / 9.13mm
0.25 in. / 6.35mm
(30°)
(30°)
(45°)
(45°)
5.25 in. / 133.5mm
Ø3.625 in. / 92mm
Ø6.5 in. / 165.1mm
Ø5.75 in.
/ 146mm
Ø5 in. /
127mm
