Components and Controls
Low Oil
Indicator
Overload
Indicator
Output
Indicator
Ground
Terminal
#5-20R
120VAC 20A
GFCI Receptacles
L5-30R
120VAC 30A
Receptacle
Parallel Kit
Terminals
Economy
(ESC) Switch
120VAC Breaker
Reset Buttons
Main Breaker
Reset Button
Engine
Switch
USB Ports
Carbon
Monoxide Alarm

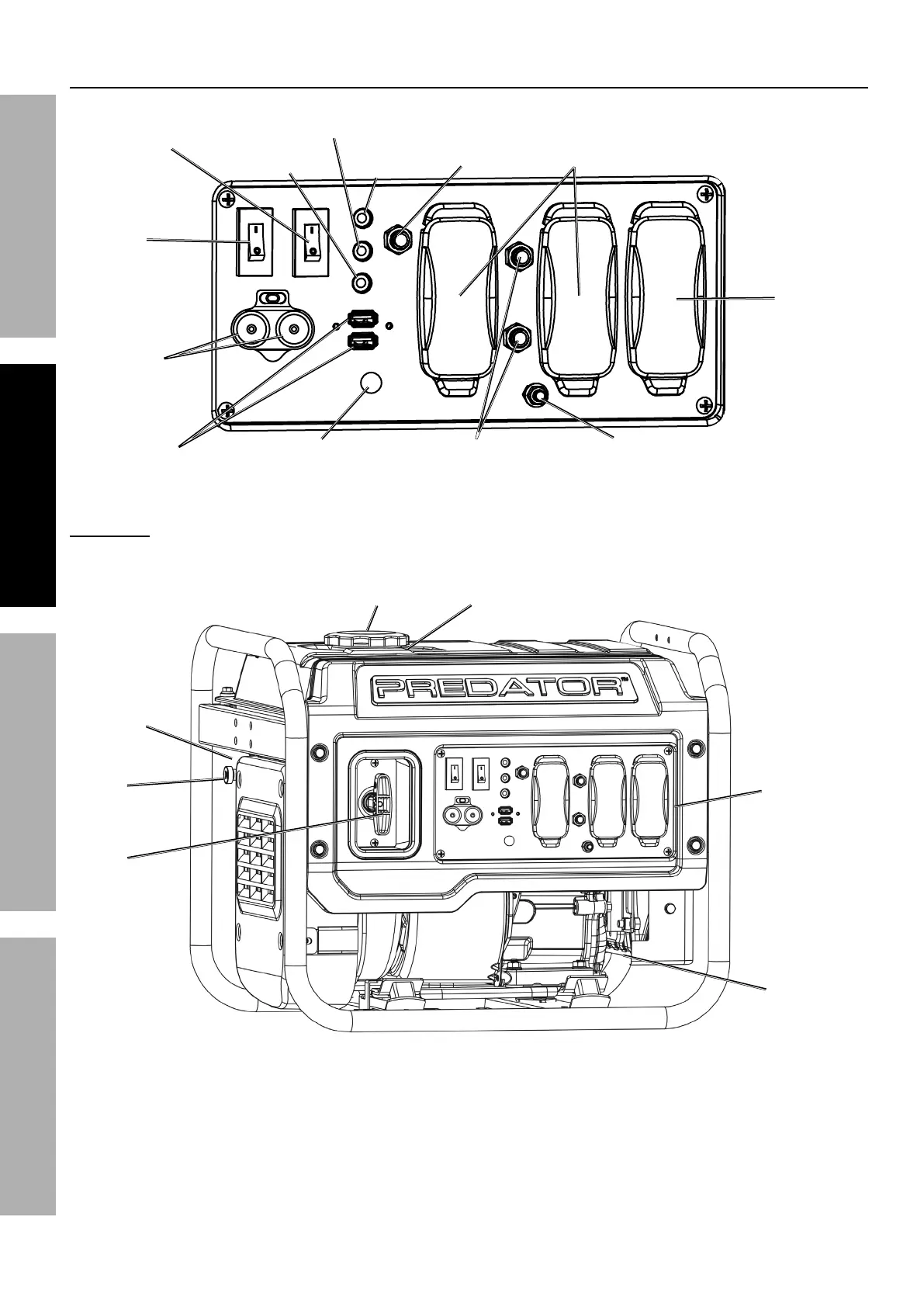

Figure A: Control Panel
WARNING! TO PREVENT SERIOUS INJURY: Follow Parallel Kit instructions for connection and use of a
Parallel Kit (Parallel Kit and instructions sold separately).
Fuel Gauge
Choke
Fuel Cap
Control Panel
Starter
Handle
Fuel Valve
(on back)
Oil Fill Cap
and Drain Bolt
Figure B: Generator Front
