Predator 79cc - Mounting and Power Take-Off Diagrams

3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • 1-888-866-5797

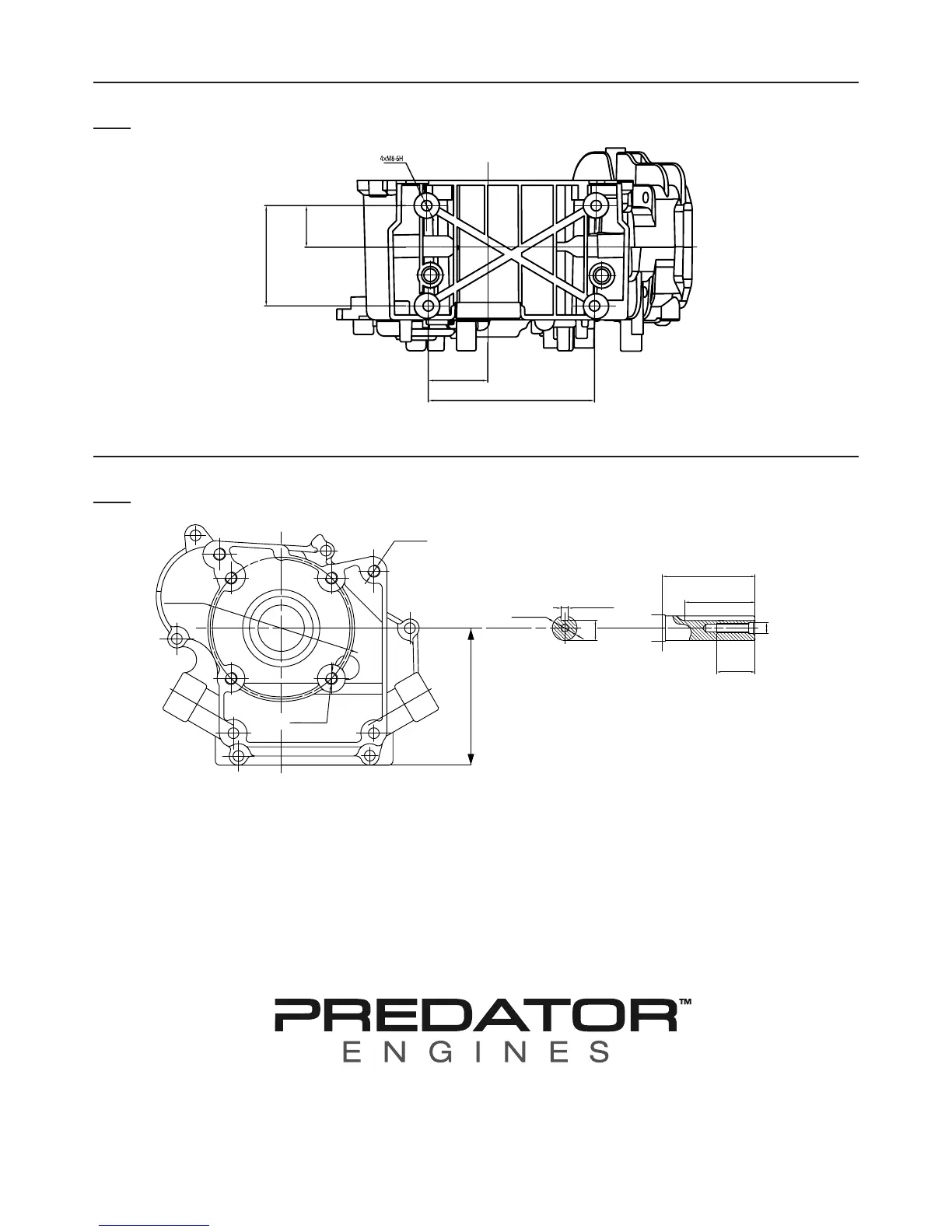

Mounting Hole Diagram
Note: Not to scale.
1 in. / 25.5mm
2.42 in. / 61.5mm
4.02 in. / 102mm
1.44 in.
/ 36.5mm
Power Take-Off Diagram
Note: Not to scale.
≥0.98 in. / 25mm
1.79 in. / 45.5mm
2.37 in. / 60.1mm
5/16-24UNF
0.1875 in. / 4.76mm
Ø0.625 in. / 16mm
0.51 in.
/ 13mm
4x5/16-24UNF
2x5/16-24UNF
3.58 in. / 91mm*
Ø3.625 in. / 92.1mm
