1-12 Disassembly Procedures
3. Disconnect the SSD module from the mainboard connector (B) (Figure 1-11). Then
remove the SSD module.
Figure 1-11. SSD Module Removal
4. Repeat steps 2~3 to remove another SSD module.
5. By holding the upper edge of the copper foil with mylar (C), unfold and detach it
from the SSD module as shown in Figure 1-12 and Figure 1-13 but DO NOT remove
yet!

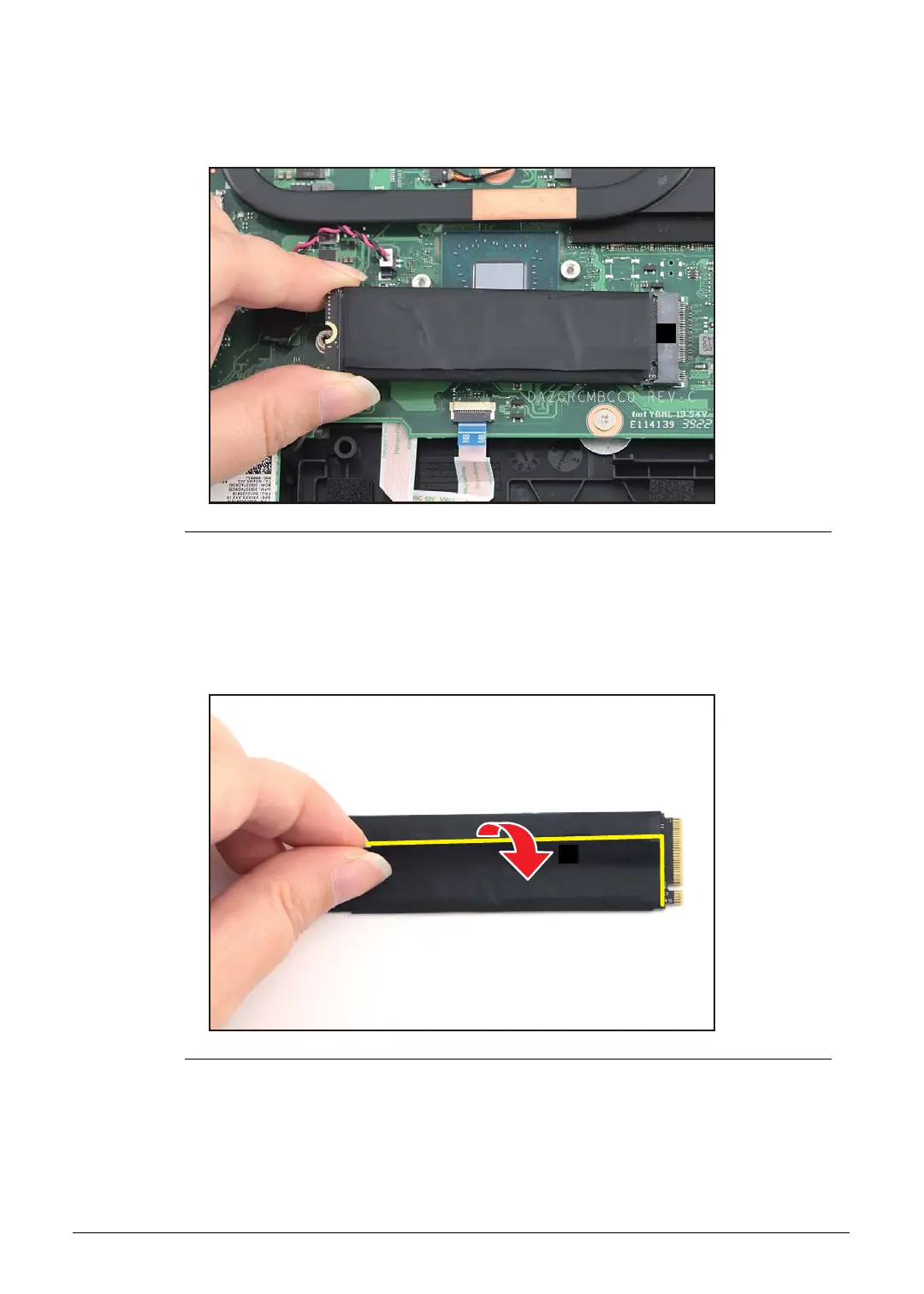

Figure 1-12. SSD Module Removal
To Next Page
