Disassembly Procedures 1-23

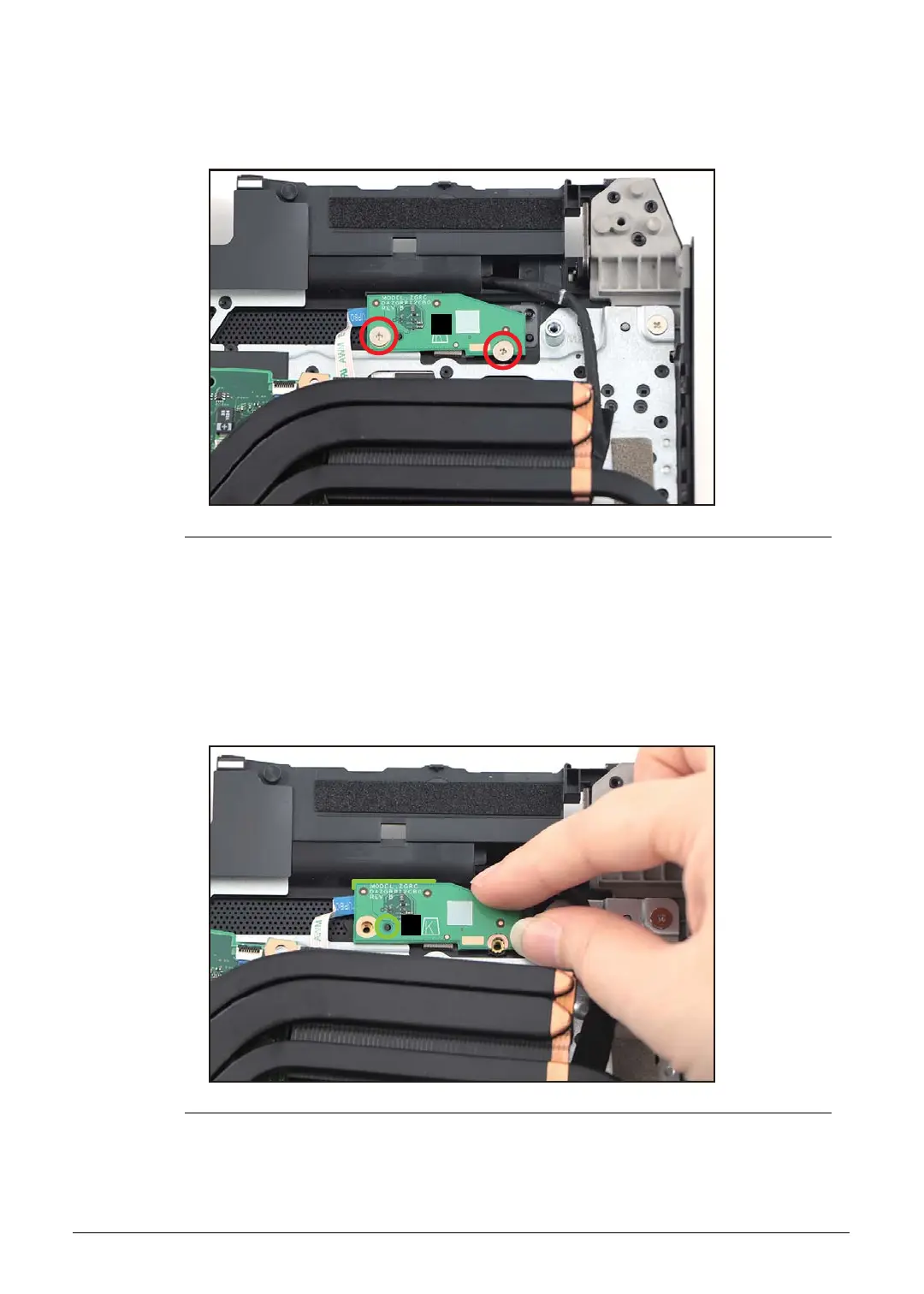

8. Place aside the mainboard with the heatsink so that you can access the turbo key
board (H). Then remove two (2) screws securing the turbo key board (Figure 1-29).
Figure 1-29. Mainboard Removal
9. Release the turbo key board from the compartment stud (highlighted with the green
line) and guide pin (I) on the top assembly (Figure 1-30). Then remove the turbo key
board and the mainboard with the heatsink.
When moving the mainboard with the heatsink, make sure to hold it
vertically and carefully place it onto a stable surface.
Figure 1-30. Mainboard Removal
