Disassembly Procedures 1-29
3. Lift the LCD module (A) to release it from the guide pins (B) but DO NOT remove yet!
(Figure 1-38).

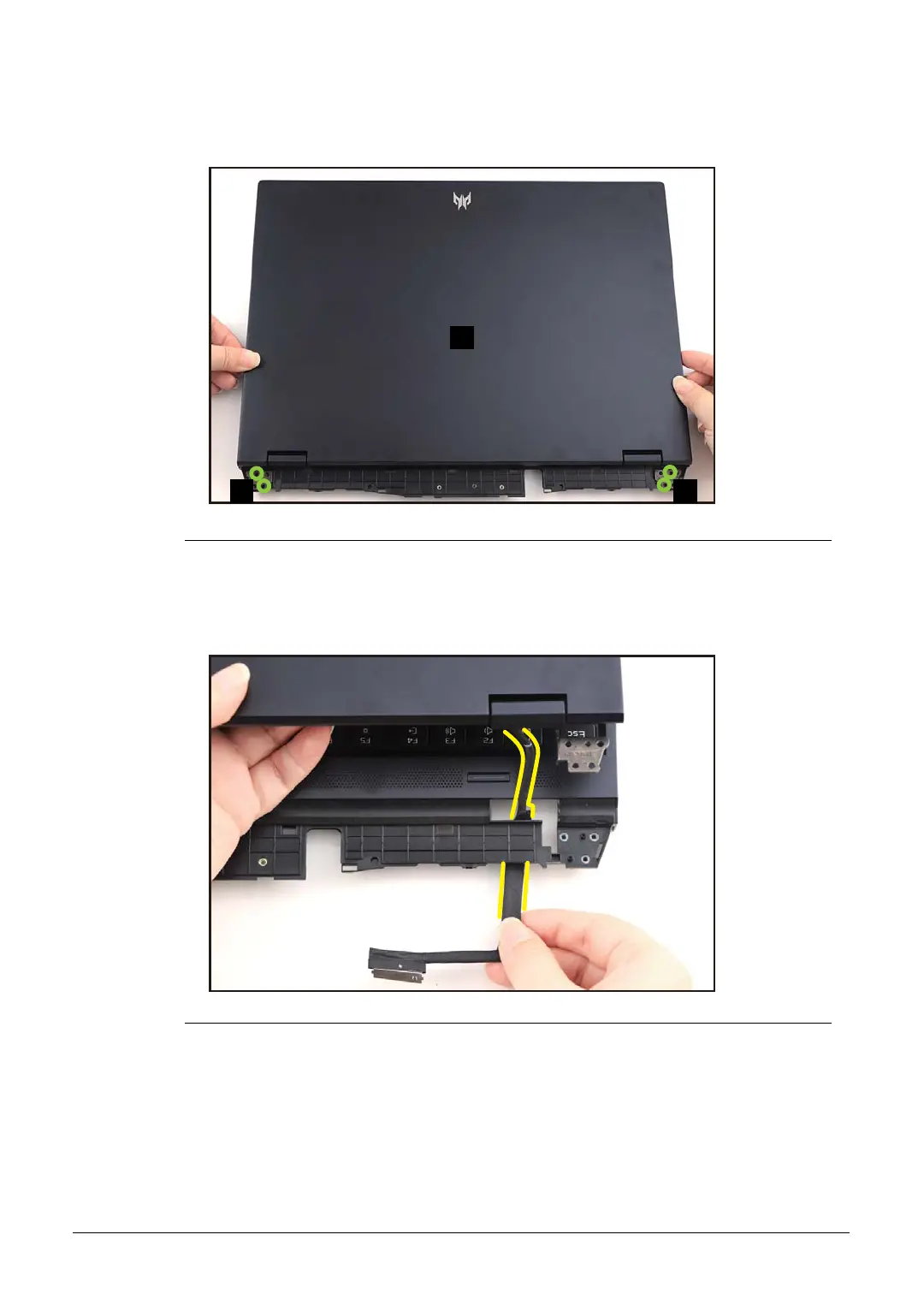

Figure 1-38. LCD Module Removal
4. Unroute the eDP cable from the opening on the top assembly and LCD hinge as
shown in Figure 1-39. Then remove the LCD module away from the top assembly.
Figure 1-39. LCD Module Removal
