Unroll the kite.
Lay the kite out on a flat surface with the zippered pocket facing up.
Straighten the Eagle's beak. Set aside and identify the struts.
2
Kite Assembly Instructions
3

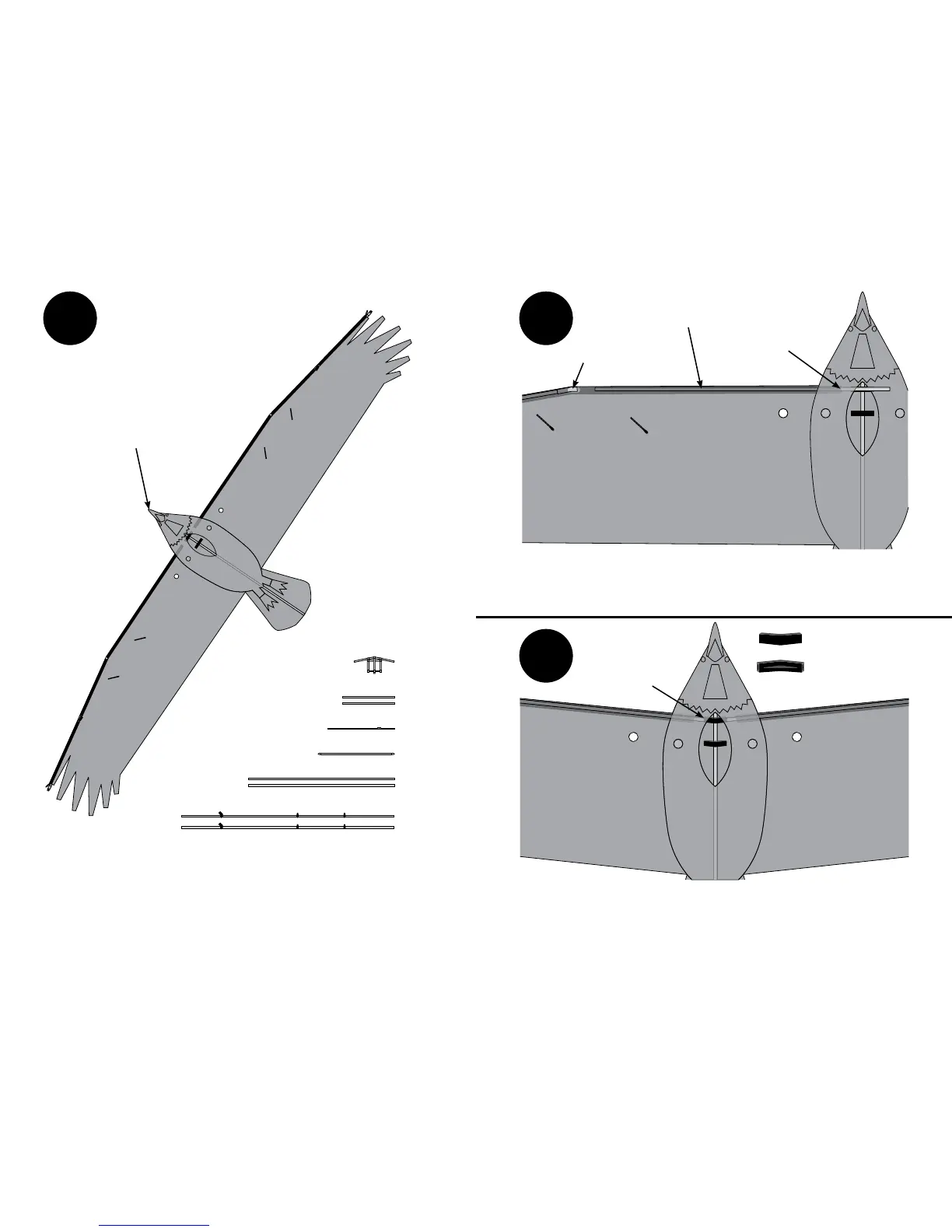

Insert Inner Leading Edge Strut into the sleeve inside the zippered body.
Leading Edge Strut should extend all the way into the Outer Leading Edge
Connector. Repeat with second Inner Leading Edge Strut on other side.
Insert remaining ends of both Inner Leading Edge Struts into the Upper
Dihedral. Make sure the tip of the Dihedral is pointed towards the zipper,
not towards the back of the Eagle.
Underwing Spreaders
Inner Leading Edge Struts
Inner Leading Edge Strut
Straighten the beak after unpacking
Outer Leading
Edge Connector
Connect Inner
Leading Edge
Struts to Dihedral
Correct Dihedral Position
Incorrect Dihedral Position
Start of Sleeve
Tail Spreader
Rear Motor Mount Frame Extension
Side Motor Mount Frame Extensions
Motor Mount Frame
