Flat Panel Installation
Do not release the at panel until the mounting
bracket arms are fully resting on the elliptical
mounting bar.
Install the mount according to the instructions
provided by Premier Mounts. Perform all structural
reinforcements before attaching the at panel to
the ceiling mount.

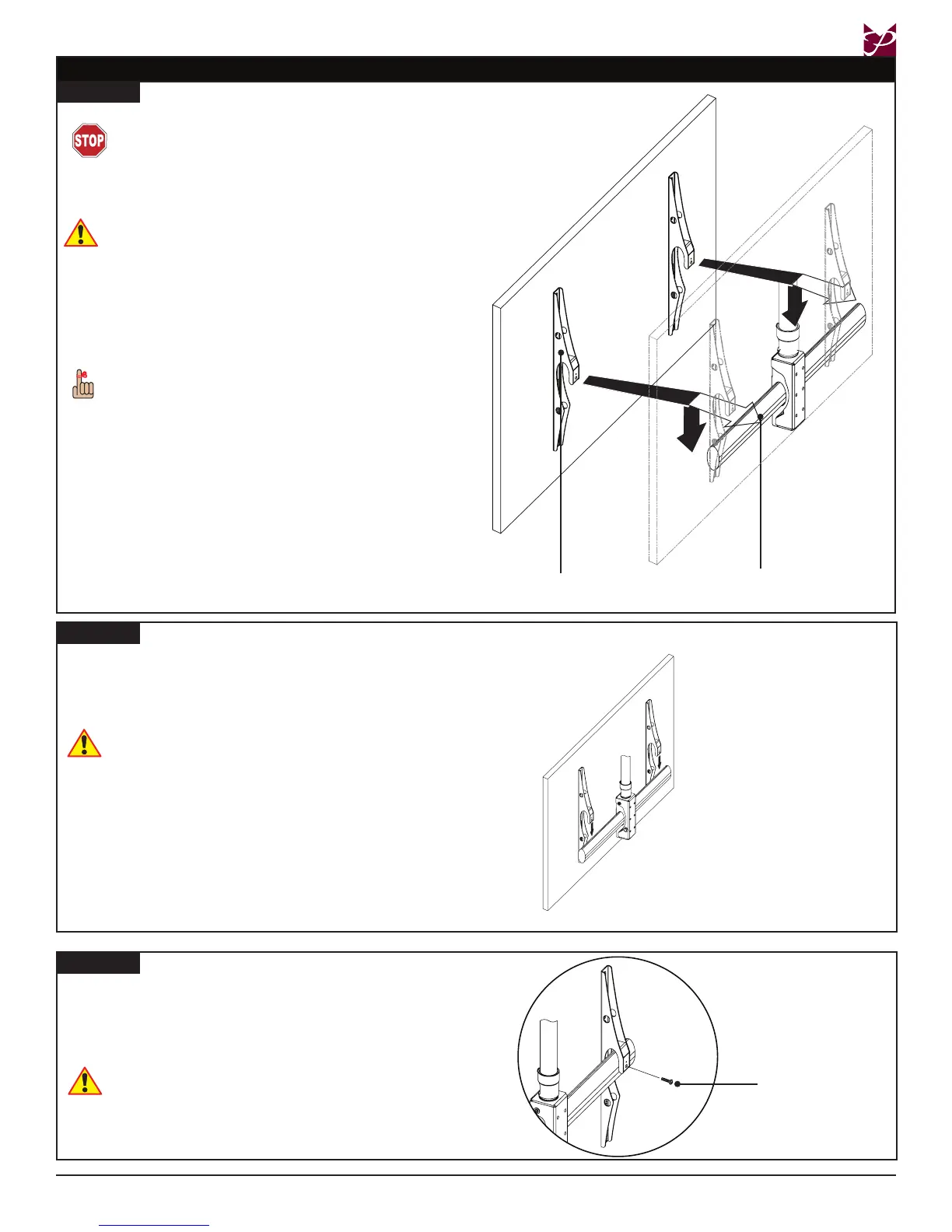

Raise the mounting bracket arms and the attached at
panel over the elliptical mounting bar of the
ECM-3763S.
Lower and center the mounting bracket arms with the
attached at panel onto the elliptical mounting bar of the
ECM-3763S.
Mounting Bracket Arms Elliptical Mounting Bar
Do not release the at panel until the mounting
bracket arms are resting fully on the elliptical
mounting bar.
Step 1
Step 2
The cable access ports face the rear of the at
panel. It may be easier to pre-wire any cables
prior to at panel installation (see Page 10).
Step 3
Insert and tighten an M6 x 25mm Pan Combo screw
(larger mounting hole).
®
Repeat Step 1 for the other mounting bracket arm.
Do not over-tighten these screws.
Proceed to “Attaching the Decorative Covers”
section.
M6 x 25mm
Screw
To Next Page
