PREMIER TECH REWATEC PSA-240 - Pumping Station Components Description; Component Installation and Location

Installation guide and Owner’s manual Page 3/10 20201029
Pumping stations PSA-240/H Item # 183036

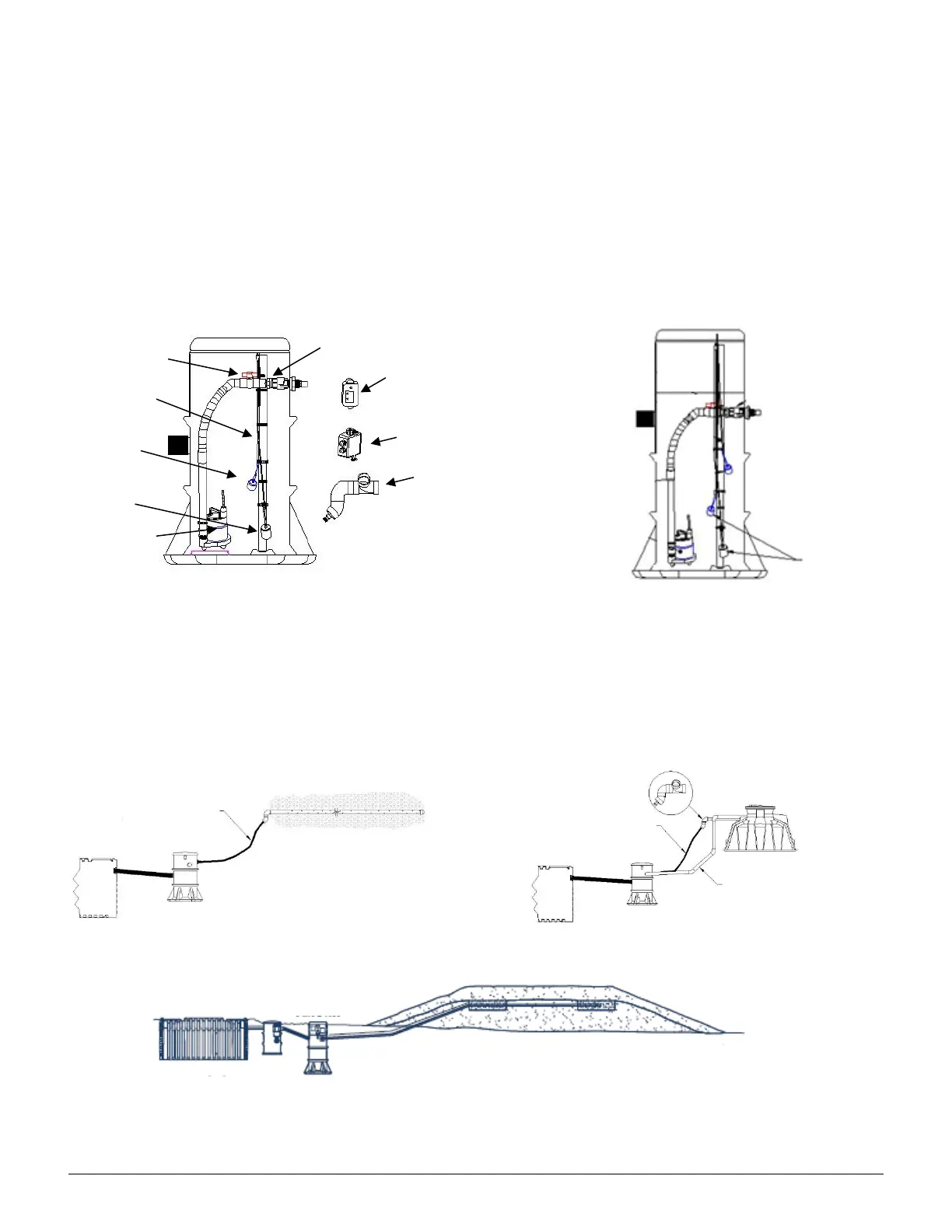

2.2 Description
The pumping stations are pre-assembled and include the following components:
A. Ball valve
B. Float tree
C. Alarm float
D. On/Off float
(1 for the PSA-240/L and 2 for the PSA-240H)
E. Submersible effluent pump
F. Cam coupler
G. Alarm box
H. Electrical junction box with waterproof screw-thread wire
connectors (not assembled)
I. Ecoflo biofilter inlet coupling and 100 mm – 38 mm (4" 1½") Ø
adaptor for model PSA-240
(not assembled)
J. 100 mm – 50 mm (4"– 2") Ø adaptor (PSA-240H)
(not assembled)
The pumping station water inlets are ready to be connected either to effluent pipe of a primary treatment unit (septic tank) for models
PSA-240 and PSA-240H.
2.3. Component location
The PSA-240 and PSA-240H pumping stations must always be installed after the septic tank or after the effluent filter container if such
is the case. They should never be used in raw water.
For minimum observable distances, refer to the regulations or standards that apply in your region, state, province or country.
A
B
C
D
G
H
I
E
F
PSA-240
D
PSA-240H
PSR-140 riser
PSA-240 pumping station before a soil absorption field
PSA-240 pumping station before an Ecoflo biofilter
Septic
tank
PSA-240H pumping station before a soil absorption field
Septic tank
PSA-240H
Pumping Station
Effluent
filter
Soil absorption field with a low pressure distribution system
Septic
tank
PSA-240
Pumping Station
PSA-240
Pumping Station
Water feeding pipe
Ø 38 mm (1½")
Water feeding pipe
Ø 38 mm (1½")
ST-500/650
Ecoflo
®
Biofilter
Soil absorption field
Aeration duct Ø 100 mm (4")
Inlet adaptor
Septic
tank
