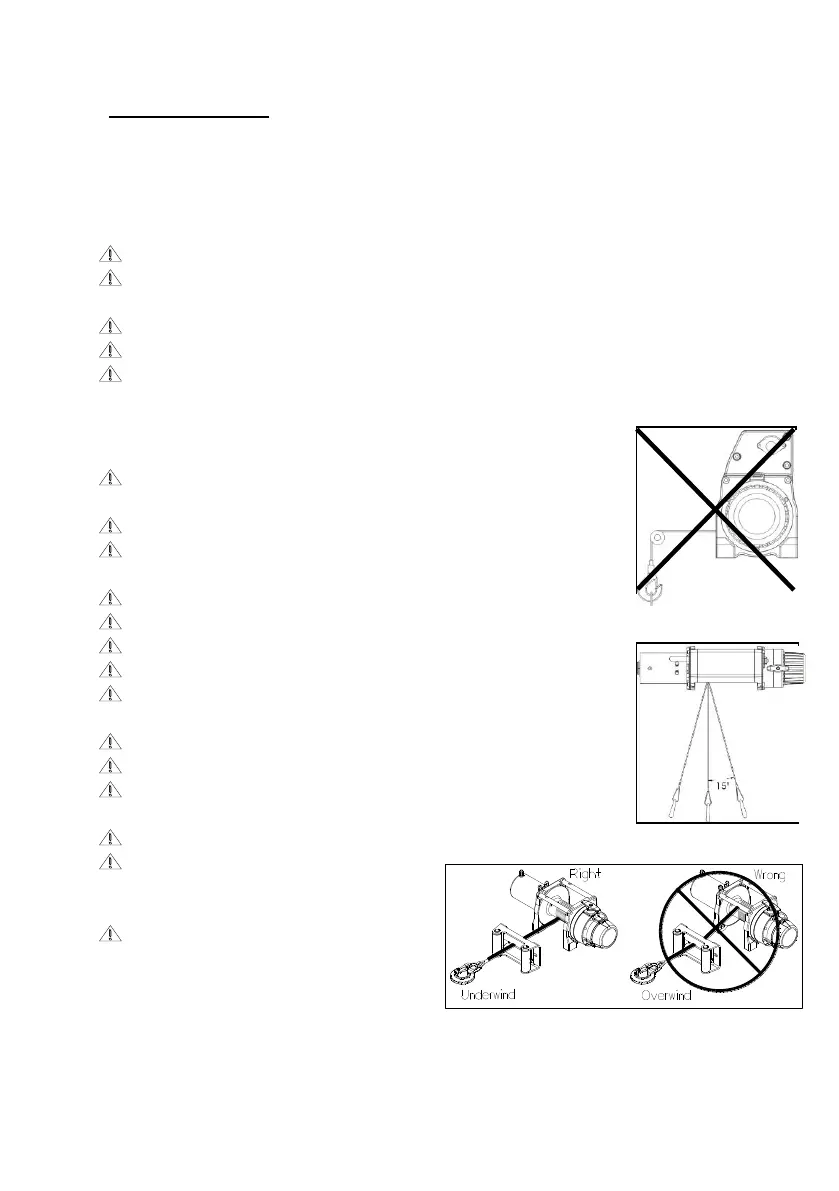

I.Safety Precautions
This winch is designed to give safe, dependable service and trouble-free operation. Please read and
understand this Instruction Manual before installing and operating your winch.
Precautions before use:
Confirm that the winch is suitable for the application before use.
Because the maximum load capacity decreases corresponding to the increase in the number of
layers, wind the rope according to the instructions in this manual.
Mount the winch securely and ensure that the rope is attached correctly.
Genuine replacement parts should only be used.
If a hook or pulley blocks are to be used, ensure that they are correct for the application, and
remember that a pulley block should be rated at least twice the capacity of the winch.
Precautions at the time of operation of the winch are listed as follows:
The operator of a winch in some cases, is required to hold qualifications
according to applicable laws and ordinances.
Only a responsible person should operate the winch.
Prior to use, carry out the daily checks without fail, and use only
after confirming the winch is functioning correctly.
A minimum of 5 wraps of rope must remain on the drum at all times!
Do not use winch to move people
Keep hands clear of wire rope and fairlead opening.
Use leather gloves or a heavy rag when handling the wire rope.
The winch is not to be used as a lifting device or a hoist for vertical lifting
(Fig1)
Do not exceed maximum line pull ratings shown in these instructions.
Do not impose shock loads on the winch.
Pull from an angle below 15 degree when straightening up the vehicle or
load. (Fig 2)
Run the engine during winching operations to keep battery charged.
When winching a heavy load, lay a heavy
blanket or jacket over the wire Rope, near to
the hook end.
Always operate your winch in an
underwound orientation only. (Fig3)
