Panel Core
Thickness
Wall Panel Height (ft.)
8’ 10’ 12’ 16’ 20’ 24’
3 1/2”
4723 3903 3094 2350 NA NA
5 1/2”
5849 5889 4278 4311 NA NA
7 1/4”
6850 6111 5556 5181 4835 NA
9 1/4”
5470 5470 5470 5470 5470 4250
11 1/4”
4500 4333 4167 3750 3750 3333
Axial loads represent ultimate load divided by a safety factor of 3.
Loads do not reflect secondary effect of P∆
2x’s are spaced 4’ on center.
More information on this chart can be found in Technical Bulletin #4

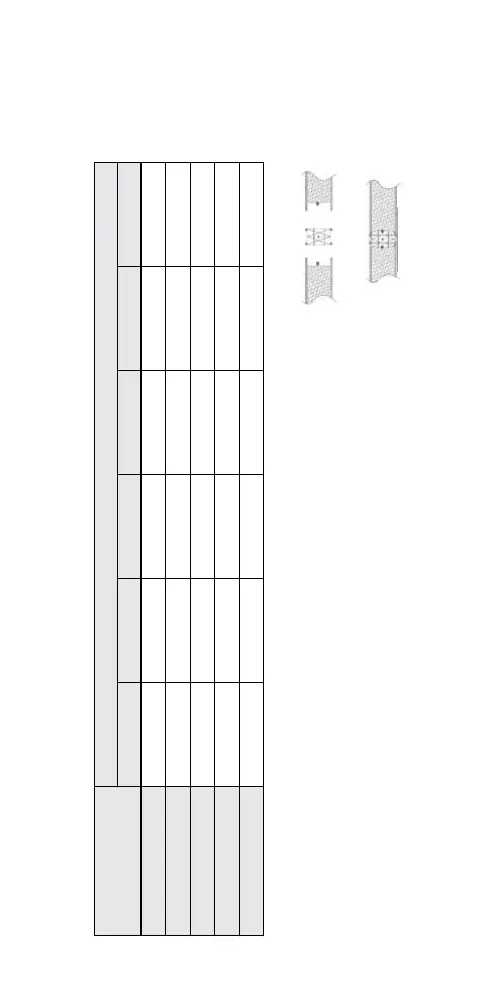

Axial Load Chart 2:
Allowable Axial Loads (plf) for
Premier Type L (Lumber) SIPs
