1.2. Technical Data
PAGE
3

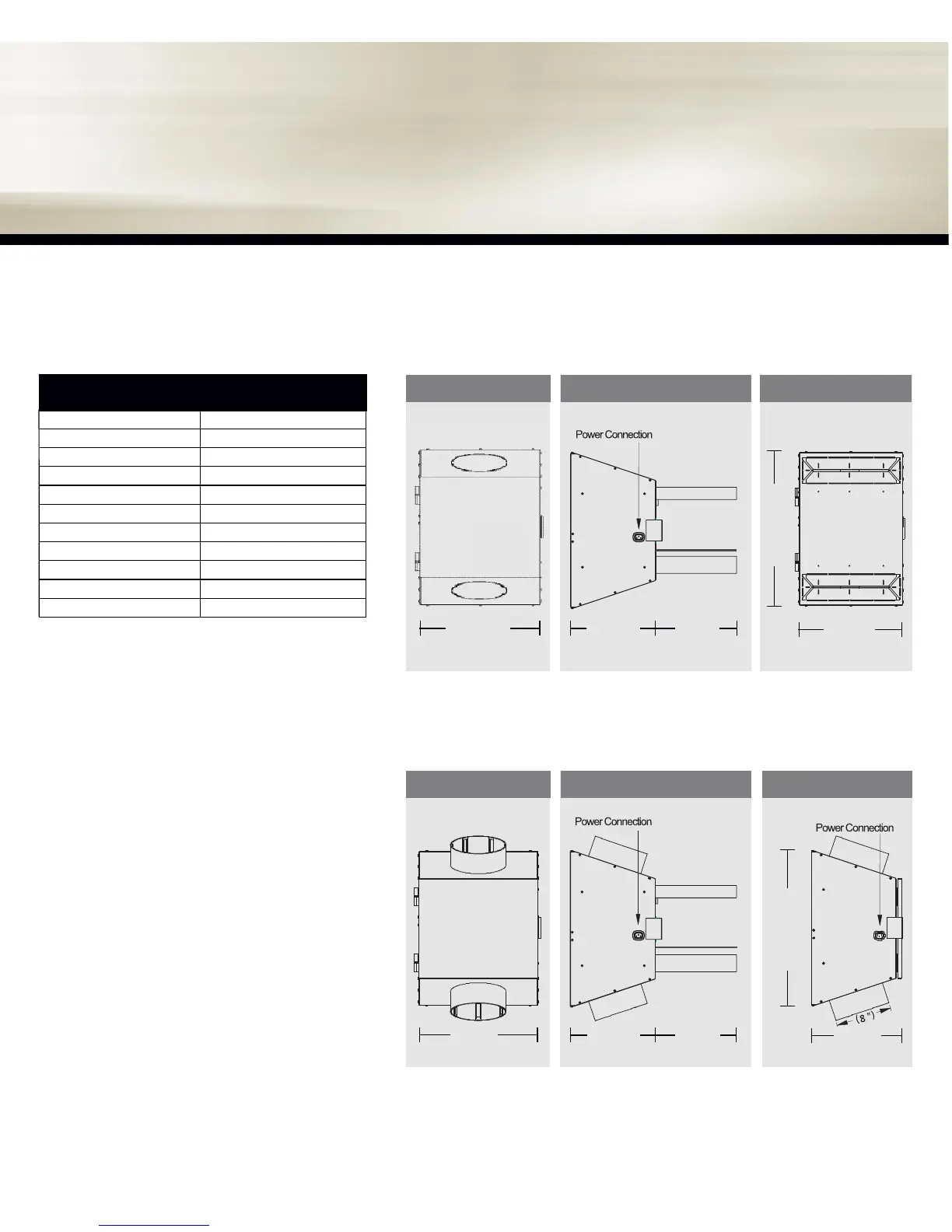

Dimensions and Clearance
installation
Back View
Front View Side View - Clearance
Side ViewFront View Side View - Clearance
Return Air Plenum and Stand Alone Installations
*
With Collar Mount Kit
Specifications
IMPORTANT INFORMATION
The manufacturer reserves the right to modify a product, without prior notice,
whether in design, color or specifications, in order to offer at all times a qual-
ity product that is highly competitive. • Please consult local authorities to find
out whether the installation of electrical products requires the services of a
certified technician or electrician.
Model HP500
22” (559 mm)
13”
(330mm)
17”
(432 mm)
17”
(432mm)
17”
(432 mm)
12”
(305 mm)
11.587”
(294.5 mm)
Return Air Plenum Installation
12”
(305 mm)
11.587”
(294.5 mm)
22” (559 mm)
* Installation requires kit No.CMK500
Stage 1
Stage 3
Stage 2
Stage 1
Stage 3
Stage 2
Filtration Stage 1 & 2 Prefilter with Carbon (RPCF677)
Filtration Stage 3 HEPA filter (RHF562)
Weight 28 lbs (12.7 kg)
Plenum Mount Port Openings 16” x 3.5” (406mm x89mm)
Collar Mount Port Openings 8” (203mm) Round*
Installation type Plenum,Wall* or Floor*Mounted
Electrical Supply 120 VAC @ 60 Hz
Power Consumption 134 W
Certification
C
CSA
US
Air flow data 220-300 CF.M.
