PremierOne MUV7-100DR - Mounting Instructions and Dimensions

MUV7-100DR shown mounted
on a heat pump.
1. Using the lamp mount as a template, draw the hole pattern
on the air duct in a suitable location.
2. Using a 1 1/4 inch Vari Bit, make two holes side by side.
Clean o excess metal between the two holes with tin snips.
3. Peel o the adhesive backing of the gasket on backside of
mounting plate.
4. Center mounting plate on hole.
5. Use four self tapping screws provided to secure mounting
plate on the air duct.
UVC
Lamp
Airow

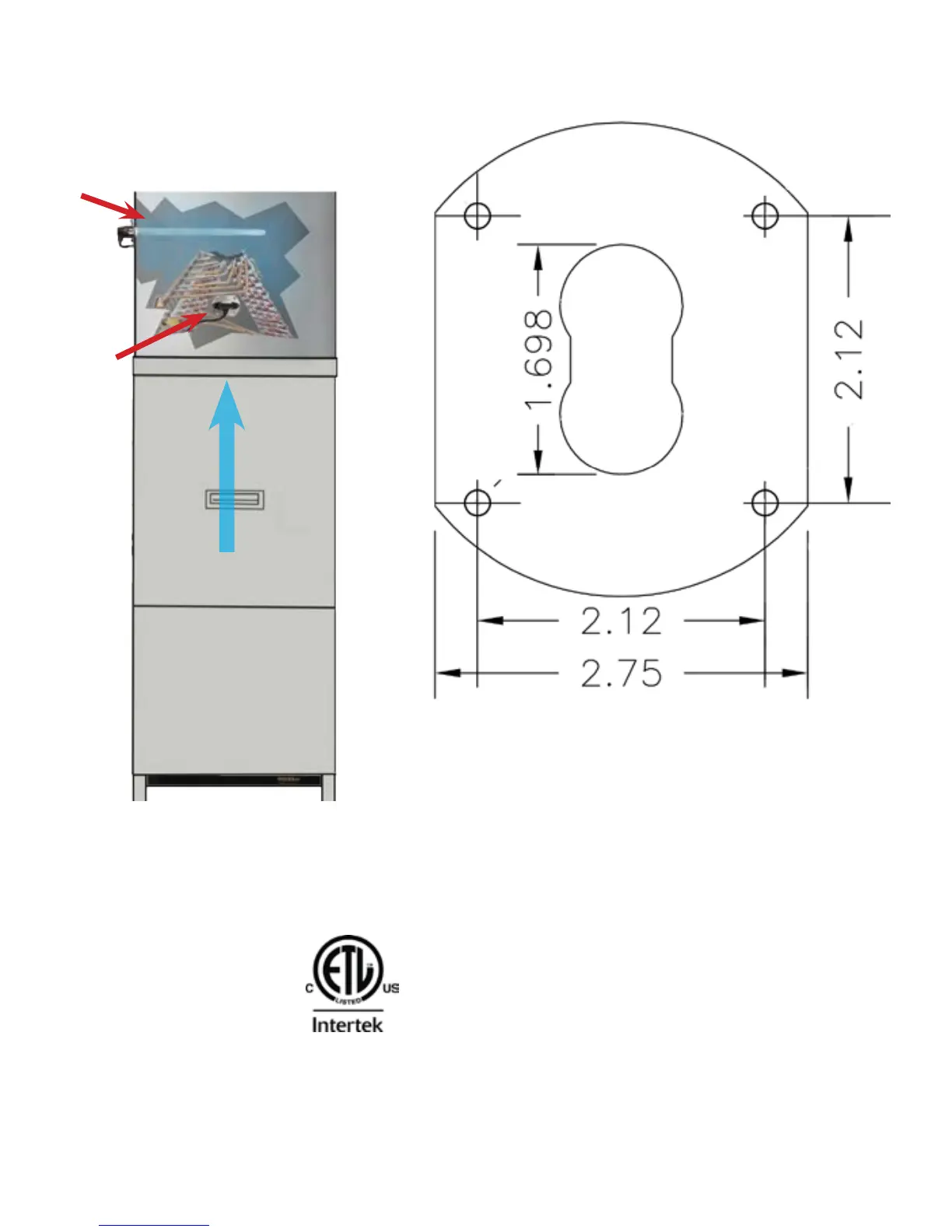

Power Supply Dimensions:
Size (L x W x D)
10.625h x 5.75w x 1.75 d
Lamp Socket Dimensions:
Size (L x W x D)
3.5” x 2.75” x 1.625”
UVC
Lamp
3099107
